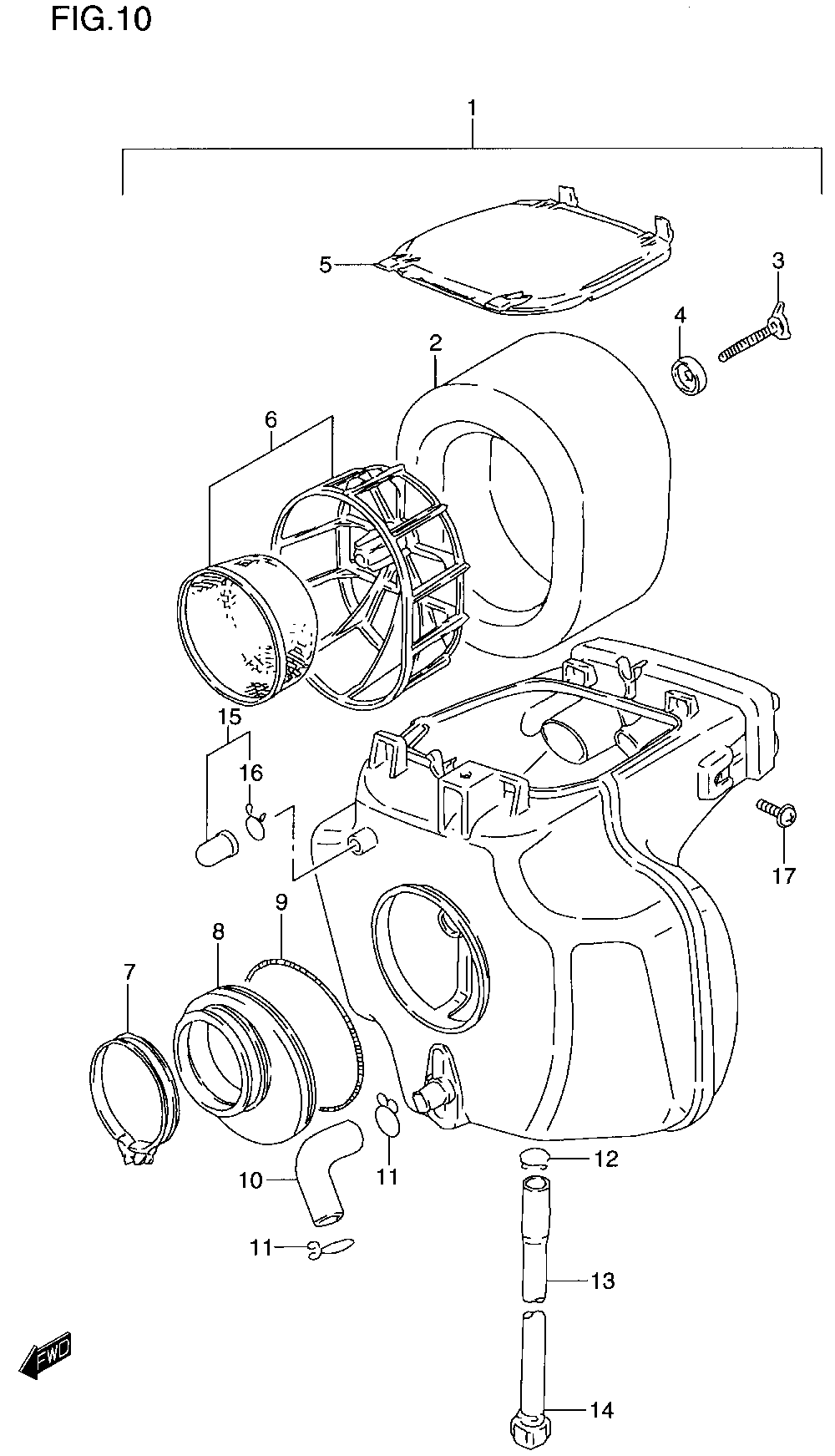

AIR CLEANER ASSY. для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
1-213700-42A01 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213780-42A01 ...FILTER...FILTER
-
313831-42A00 ...BOLT, WING...BOLT, WING
-
413796-16700 ...WASHER...WASHER
-
513740-42A00 ...CAP...CAP
-
613790-42A00 ...HOLDER...HOLDER
-
709402-56208 ...CLAMP...CLAMP
-
813881-42A00 ...TUBE, OUTLET...TUBE, OUTLET
-
913826-38300 ...CLAMP, AIR CLEANER SIDE...CLAMP, AIR CLEANER SIDE
-
1013853-42A00 ...TUBE, BREATHER...TUBE, BREATHER
-
1109401-14301 ...CLIP...CLIP
-
1209401-13409 ...CLIP...CLIP
-
1313870-11458 ...TUBE, DRAIN...TUBE, DRAIN
-
1409401-13409 ......CLIP......CLIP
-
1513870-14F00 ...PLUG, DRAIN (UP TO ENGINE NO. 124938)...PLUG, DRAIN (UP TO ENGINE NO. 124938)
-
1609401-16401 ......CLIP (ENGINE NO. 124938 AND UP)......CLIP (ENGINE NO. 124938 AND UP)
-
1702112-36163 SCREWSCREW
