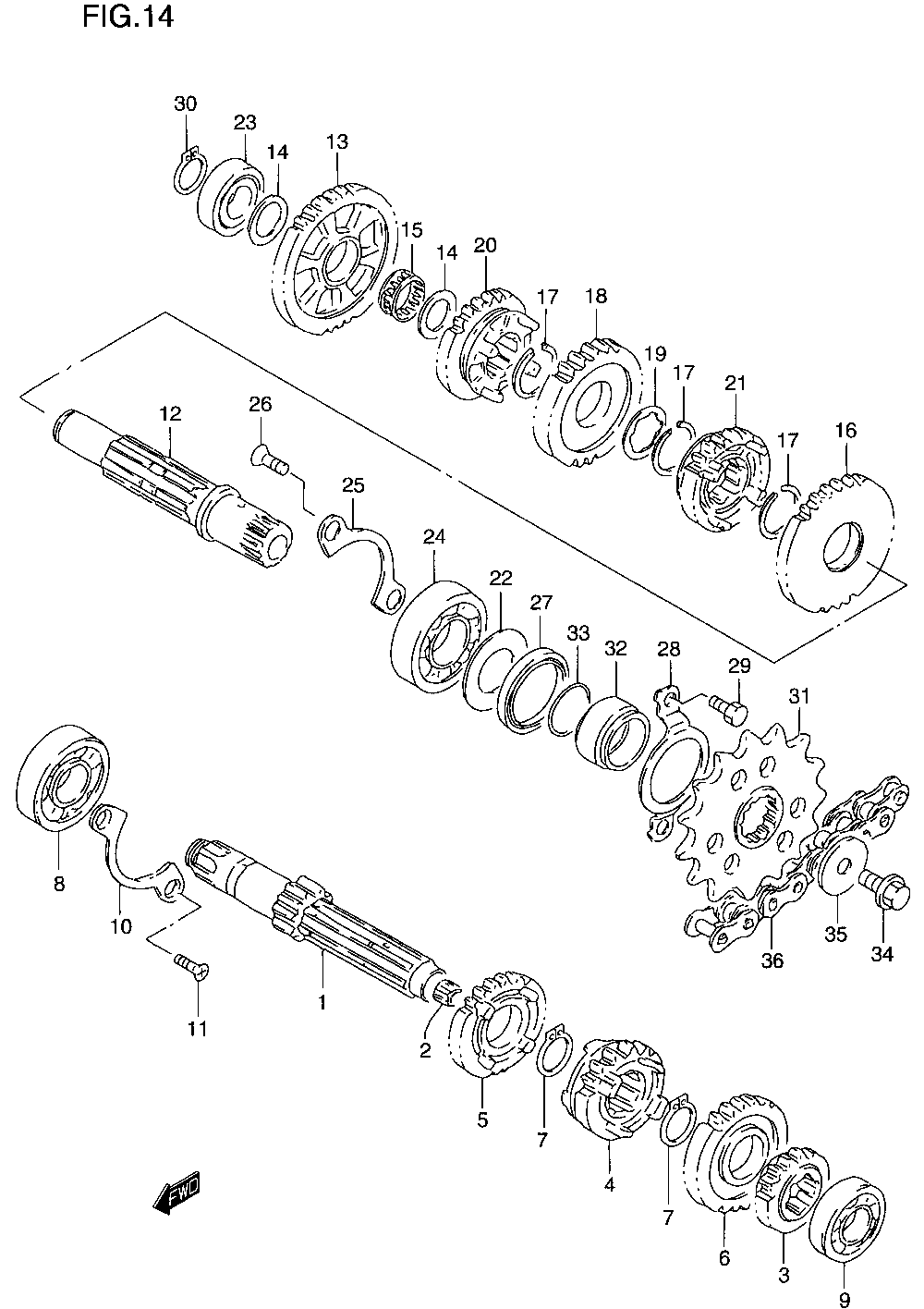

TRANSMISSION для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
1-224120-42A01 SHAFT, COUNTER (NT:11)SHAFT, COUNTER (NT:11)
-
224125-38201 ...BUSH...BUSH
-
324221-42A02 GEAR, 2ND DRIVE (NT:15)GEAR, 2ND DRIVE (NT:15)
-
4-224231-42A03 GEAR, 3RD DRIVE (NT:16)GEAR, 3RD DRIVE (NT:16)
-
524241-42A00 GEAR, 4TH DRIVE (NT:21)GEAR, 4TH DRIVE (NT:21)
-
624251-42A03 GEAR, 5TH DRIVE (NT:23)GEAR, 5TH DRIVE (NT:23)
-
709380-20009 CIRCLIPCIRCLIP
-
809262-20069 BEARING (20X47X14)BEARING (20X47X14)
-
908123-60027 BEARINGBEARING
-
1024741-05200 RETAINER, DRIVE SHAFT BEARINGRETAINER, DRIVE SHAFT BEARING
-
1102122-06123 SCREWSCREW
-
1224130-42A20 SHAFT, DRIVESHAFT, DRIVE
-
1324311-42A00 GEAR, 1ST DRIVEN (NT:33)GEAR, 1ST DRIVEN (NT:33)
-
14-209181-17167 THRUST WASHER (17X26X1.0)THRUST WASHER (17X26X1.0)
-
1509263-17004 BEARING (17X21X9.8)BEARING (17X21X9.8)
-
16-224320-42A03 GEAR, 2ND DRIVEN (NT:29)GEAR, 2ND DRIVEN (NT:29)
-
1709380-22006 CIRCLIPCIRCLIP
-
18-224331-42A02 GEAR, 3RD DRIVEN (NT:23)GEAR, 3RD DRIVEN (NT:23)
-
1909167-22011 LOCK WASHERLOCK WASHER
-
20-224341-42A02 GEAR, 4TH DRIVEN (NT:23)GEAR, 4TH DRIVEN (NT:23)
-
2124351-42A02 GEAR, 5TH DRIVEN (NT:21)GEAR, 5TH DRIVEN (NT:21)
-
2224359-42A00 WASHER, OIL SEALINGWASHER, OIL SEALING
-
2309264-17001 BEARING (17X36X12)BEARING (17X36X12)
-
2409262-22018 BEARING (22X50X14)BEARING (22X50X14)
-
2524741-05200 RETAINER, DRIVE SHAFT BEARINGRETAINER, DRIVE SHAFT BEARING
-
2602122-06123 SCREWSCREW
-
2709283-30053 OIL SEAL (30X40X6)OIL SEAL (30X40X6)
-
2824751-42A01 RETAINER, DRIVE SHAFT OIL SEALRETAINER, DRIVE SHAFT OIL SEAL
-
2901500-06103 BOLTBOLT
-
3008331-31176 CIRCLIPCIRCLIP
-
3127510-42A10 SPROCKET, ENGINE (NT:15)SPROCKET, ENGINE (NT:15)
-
3227531-42A00 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
3309280-21008 O RING (D:2.5,ID:21)O RING (D:2.5,ID:21)
-
3401550-08123 BOLTBOLT
-
3508211-08283 WASHERWASHER
-
3627600-14A10-112 CHAIN, DRIVE (DID520VC5) (L:112)CHAIN, DRIVE (DID520VC5) (L:112)
