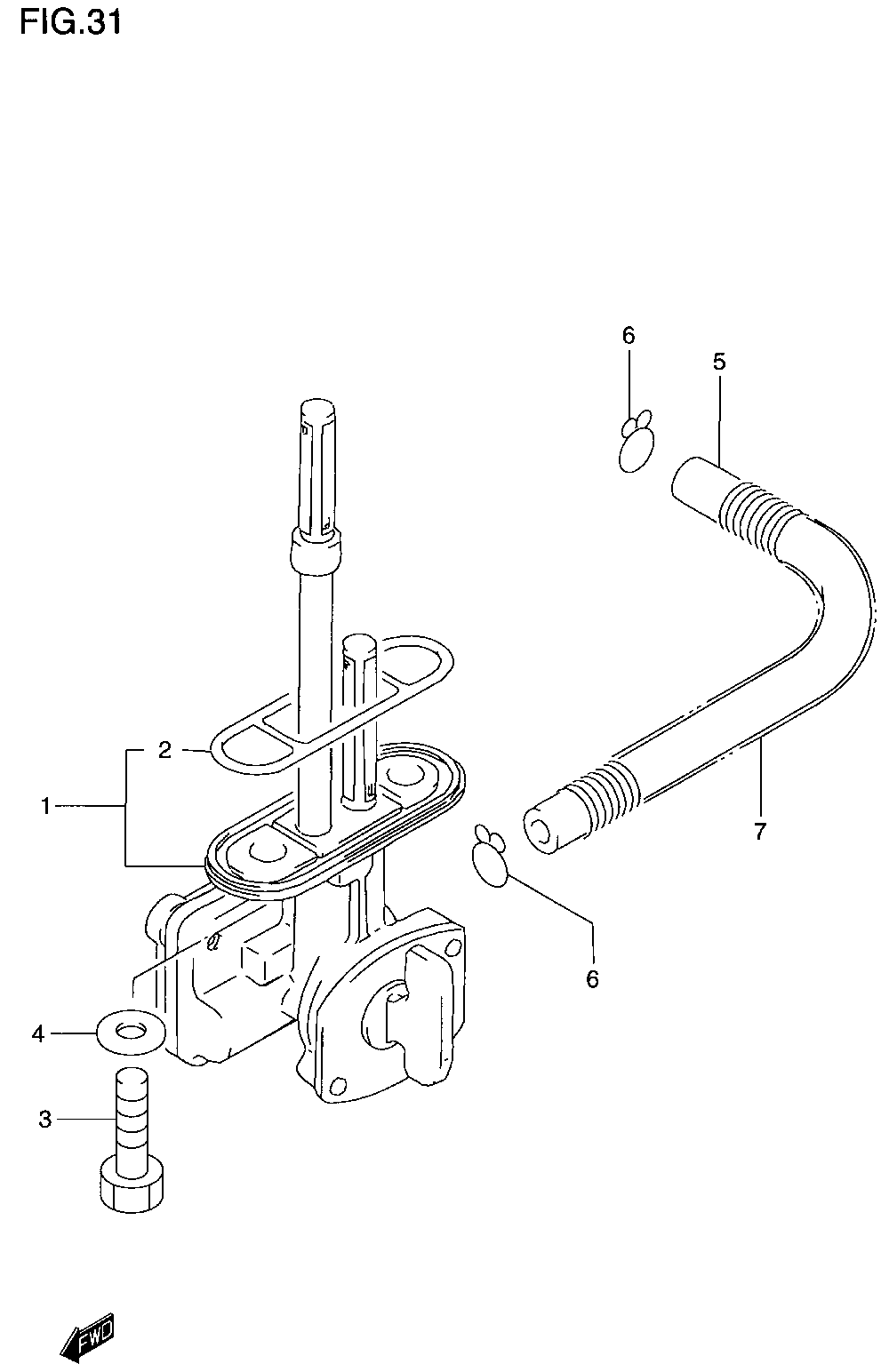

FUEL COCK для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
144300-44AB0 COCK ASSY, FUELCOCK ASSY, FUEL
-
244348-87420 ...O RING...O RING
-
309128-06057 SCREW (6X20)SCREW (6X20)
-
409168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
5-109352-50823-600 HOSE (L:600(R)160) (EXCEPT CALIF)HOSE (L:600(R)160) (EXCEPT CALIF)
-
5-209352-50823-600 HOSE (L:600(R)180) (CALIFORNIA ONLY)HOSE (L:600(R)180) (CALIFORNIA ONLY)
-
609401-08401 CLIPCLIP
-
709440-10009 SPRING (CALIFORNIA ONLY)SPRING (CALIFORNIA ONLY)
