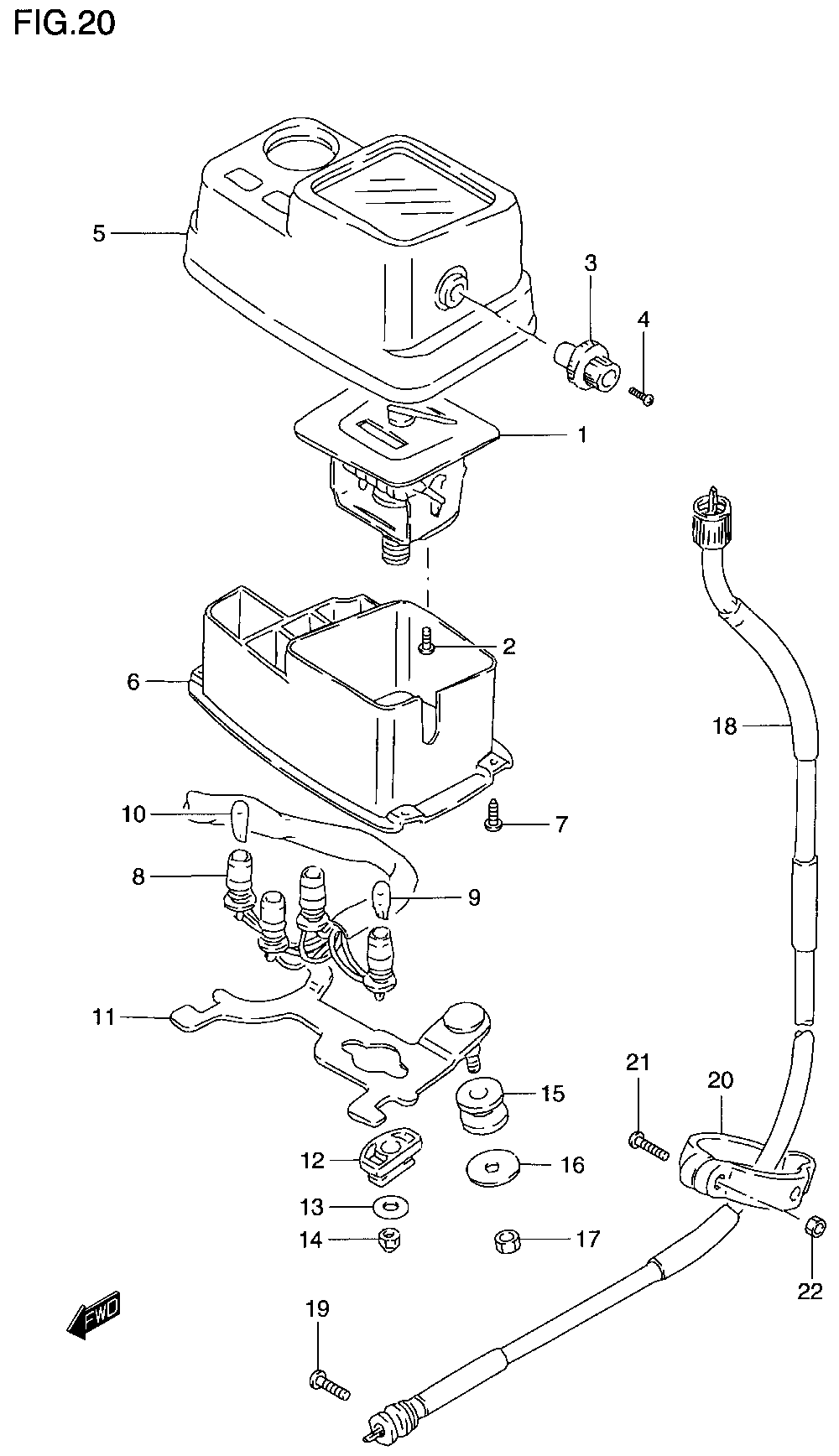

INSTRUMENT PANEL для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
1-134120-44AB0 SPEEDOMETER (USA)SPEEDOMETER (USA)
-
1-234120-44A90 SPEEDOMETER (CANADA)SPEEDOMETER (CANADA)
-
202112-74123 SCREWSCREW
-
334124-14A10 KNOB, TRIPKNOB, TRIP
-
409139-02003 SCREWSCREW
-
5-134150-44AE0 HOOD, METER (USA)HOOD, METER (USA)
-
5-234150-44AD0 HOOD, METER (CANADA)HOOD, METER (CANADA)
-
634111-14A10 CASE, METERCASE, METER
-
734184-12B00 SCREWSCREW
-
834173-44A90 SOCKET ASSYSOCKET ASSY
-
909471-12028 BULB (12V,3.4W)BULB (12V,3.4W)
-
1009471-12077 BULB (12V,1.7W)BULB (12V,1.7W)
-
1134950-44A00 BRACKET, METERBRACKET, METER
-
1234189-14A10 CUSHIONCUSHION
-
13-209160-05043 WASHER (5.5X16X1.2)WASHER (5.5X16X1.2)
-
1408310-00057 NUTNUT
-
1534956-15100 CUSHIONCUSHION
-
16-309160-06084 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
1708310-00063 NUTNUT
-
1834910-44A20 CABLE ASSY, SPEEDOMETERCABLE ASSY, SPEEDOMETER
-
1902112-05163 SCREWSCREW
-
2034938-01A00 CLAMP, SPEEDOMETER CABLECLAMP, SPEEDOMETER CABLE
-
2102112-05163 SCREWSCREW
-
2208310-00053 NUTNUT
