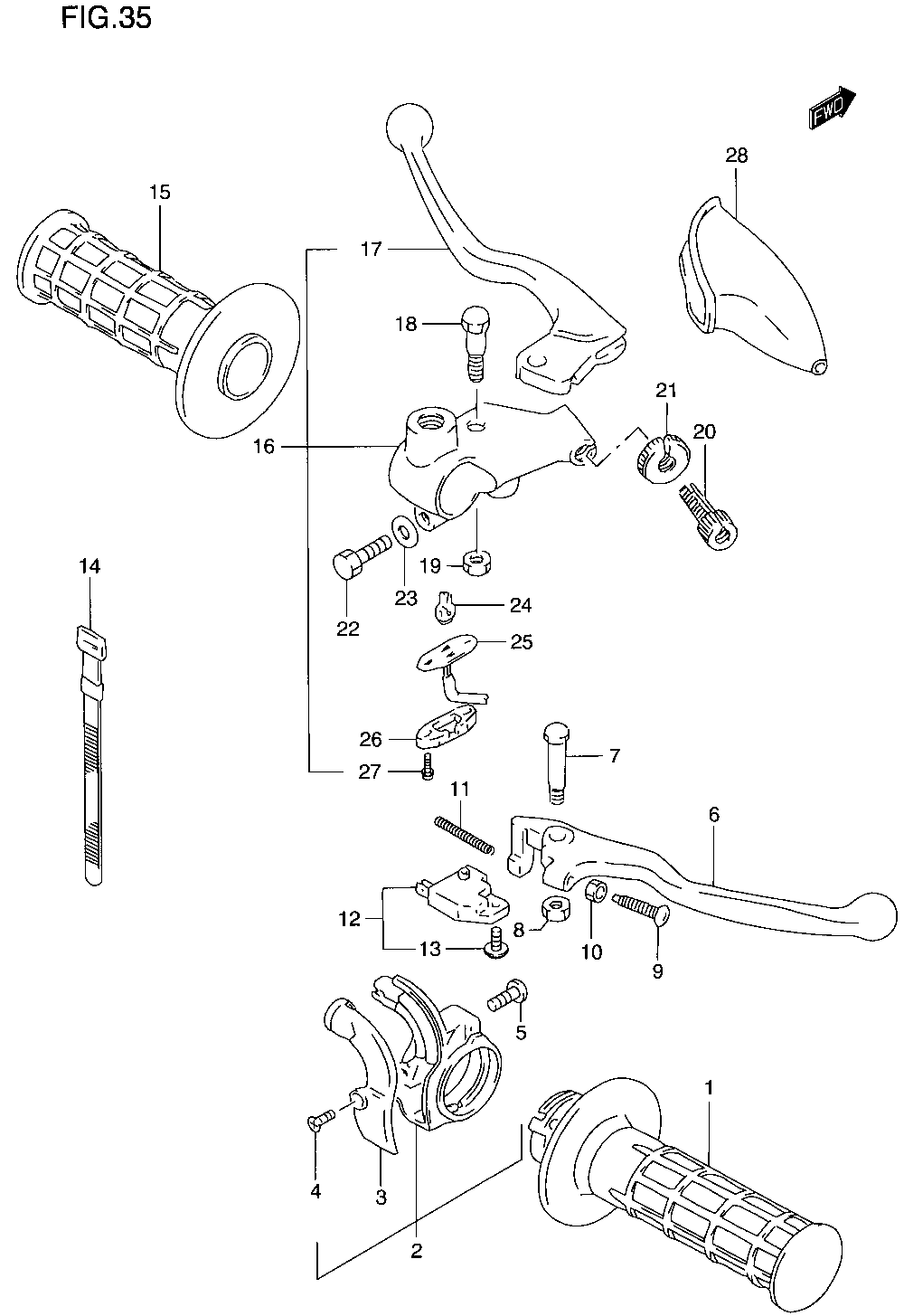

HANDLEBAR - LEVERS для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
157110-14D00 GRIP, THROTTLEGRIP, THROTTLE
-
257100-28B00 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
357129-13601 ...COVER...COVER
-
402122-04103 ...SCREW...SCREW
-
502112-05164 ...SCREW...SCREW
-
657421-03D00 LEVER, BRAKELEVER, BRAKE
-
757431-14500 BOLT, BRAKE LEVERBOLT, BRAKE LEVER
-
808319-21068 NUTNUT
-
957431-14511 BOLT, ADJUSTBOLT, ADJUST
-
1008310-00053 NUTNUT
-
1157318-14502 SPRING, RETURNSPRING, RETURN
-
1257460-17C00 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
1357465-17C00 ...SCREW...SCREW
-
1409407-12402 CLAMP (L:120)CLAMP (L:120)
-
1557211-27C00 GRIP (LEFT)GRIP (LEFT)
-
1657500-44AD0 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
1757620-15D11 ...LEVER...LEVER
-
1857431-11013 ...BOLT...BOLT
-
1908319-21068 ...NUT...NUT
-
2057441-11010 ...ADJUSTER...ADJUSTER
-
2157442-44B00 ...NUT...NUT
-
2201500-06207 ...BOLT...BOLT
-
2308322-01067 ...WASHER...WASHER
-
2457465-18601 ...CONTACT...CONTACT
-
2557541-49100 ...WIRE HARNESS...WIRE HARNESS
-
2657481-33010 ...COVER...COVER
-
2757484-49110 ...SCREW...SCREW
-
2857341-40001 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
