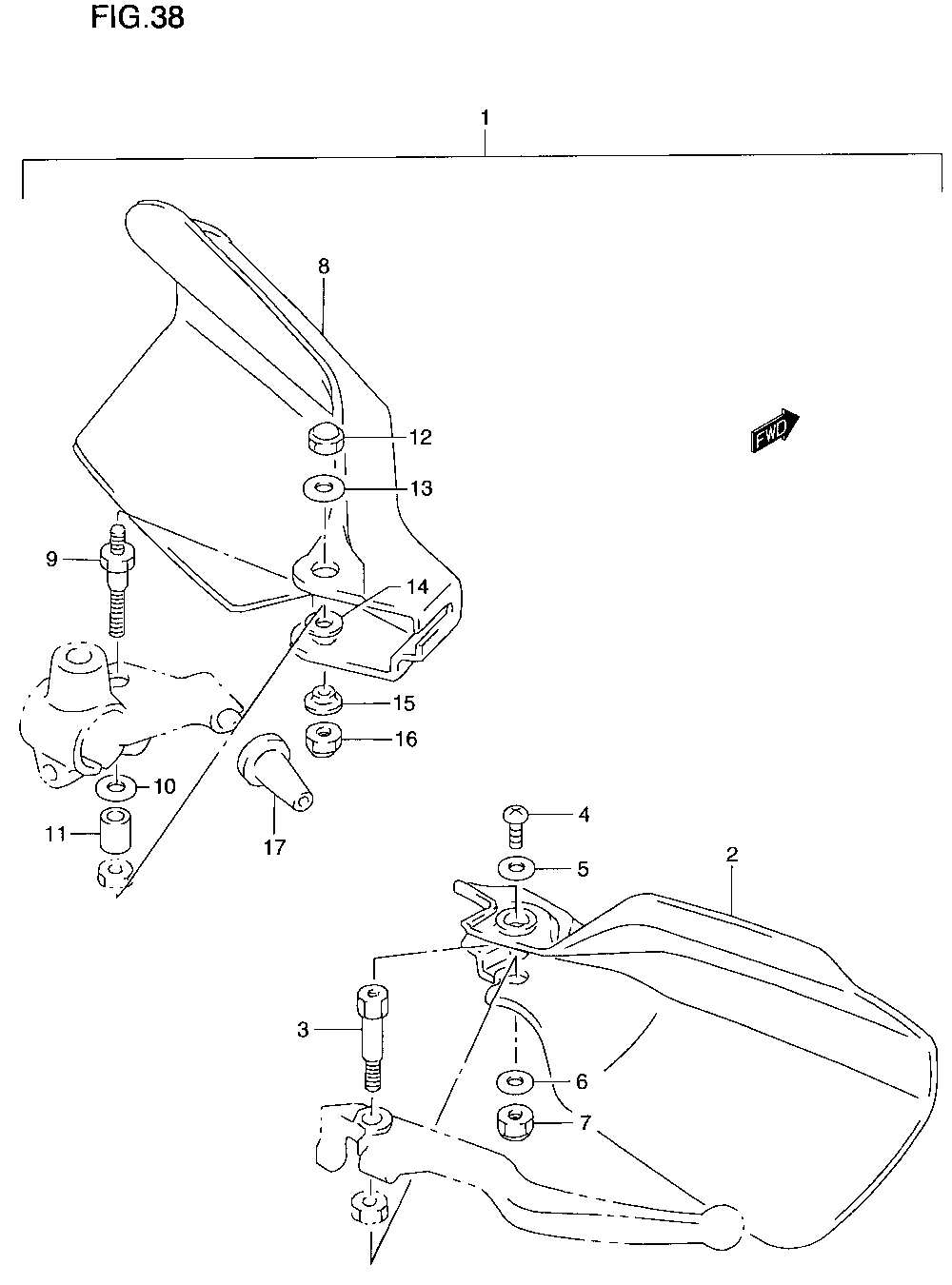

KNUCKLE COVER (OPTION) для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
1-257300-05810-30H COVER SET, KNUCKLE (WHITE)COVER SET, KNUCKLE (WHITE)
-
2-257341-05D00-30H ...COVER, KNUCKLE (RIGHT/WHITE)...COVER, KNUCKLE (RIGHT/WHITE)
-
357431-05D00 ...BOLT...BOLT
-
402142-05107 ...SCREW...SCREW
-
5-209160-05043 ...WASHER (5.5X16X1.2)...WASHER (5.5X16X1.2)
-
6-209160-06130 ...WASHER (6.5X16X1.6)...WASHER (6.5X16X1.6)
-
708319-21068 ...NUT...NUT
-
8-257541-31D00-30H ...COVER, KNUCKLE (LEFT/WHITE)...COVER, KNUCKLE (LEFT/WHITE)
-
9-257531-44B01 ...BOLT...BOLT
-
1057533-44B00 ...WASHER...WASHER
-
1157532-44B00 ...SPACER...SPACER
-
1208313-10067 ...NUT...NUT
-
1309160-06066 ...WASHER (6.5X20X1.6)...WASHER (6.5X20X1.6)
-
1409160-06019 ...WASHER (6.5X16X1.2)...WASHER (6.5X16X1.2)
-
1509169-06055 ...WASHER...WASHER
-
1608319-21068 ...NUT...NUT
-
1758273-31000 ...BOOT, CLUTCH CABLE...BOOT, CLUTCH CABLE
