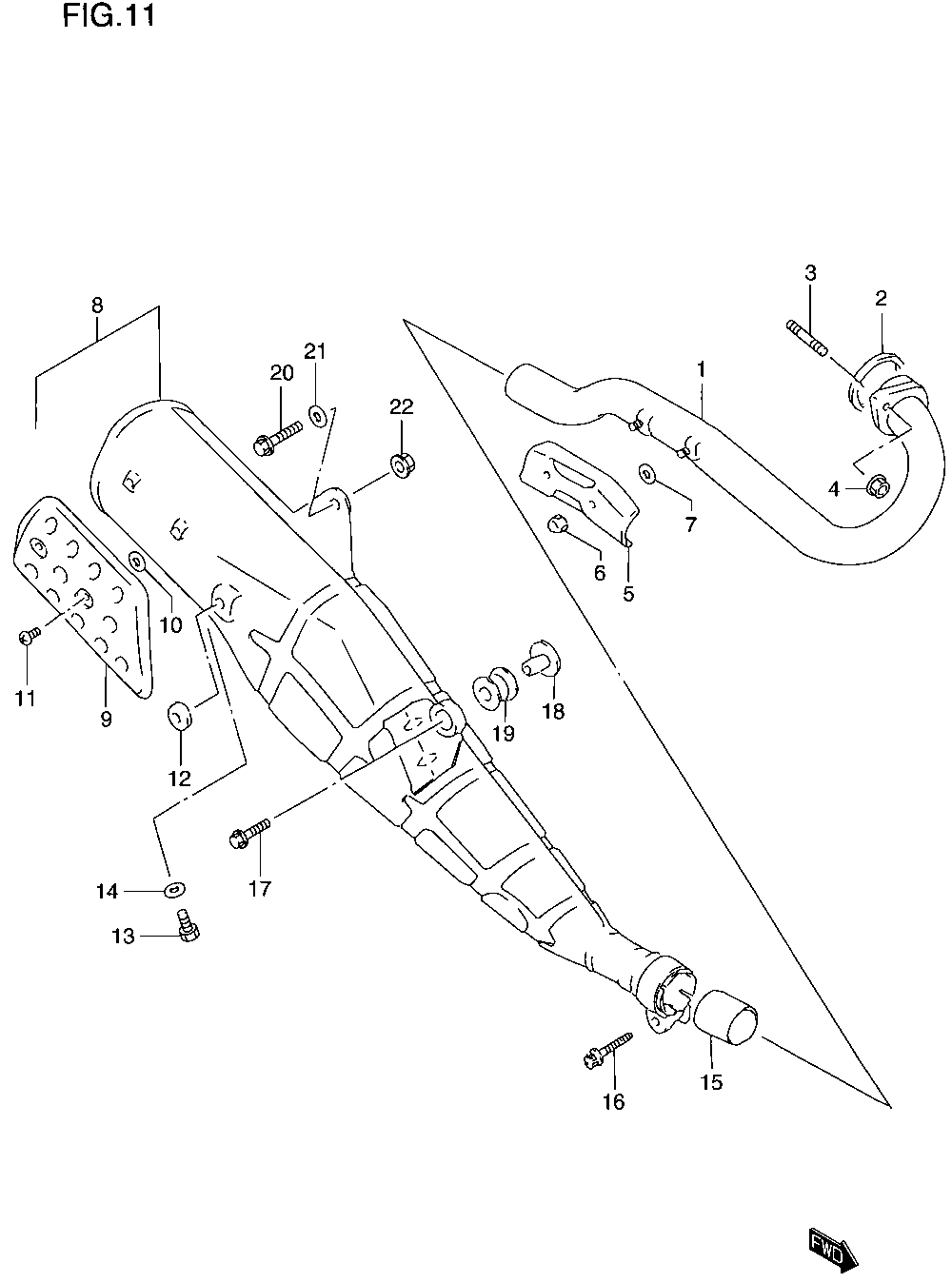

MUFFLER для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
114150-42A20 PIPE, EXHAUSTPIPE, EXHAUST
-
214181-42A00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
301421-08258 STUD BOLTSTUD BOLT
-
408319-31087 NUTNUT
-
514186-42A20 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
609159-06035 NUTNUT
-
709168-06122 GASKET (6X16X1.4)GASKET (6X16X1.4)
-
814301-42A60-H01 MUFFLER ASSYMUFFLER ASSY
-
914781-42A20 ...COVER, MUFFLER...COVER, MUFFLER
-
1009168-06120 ...GASKET (5.8X13X1.4)...GASKET (5.8X13X1.4)
-
1109139-06076 ...SCREW (6X10)...SCREW (6X10)
-
1209321-10007 ...CUSHION...CUSHION
-
1309247-12103 ...PLUG, DRAIN...PLUG, DRAIN
-
1409168-12002 ...GASKET...GASKET
-
1514773-14202 GASKET, 2ND MUFFLERGASKET, 2ND MUFFLER
-
1607120-08353 BOLT (8X35)BOLT (8X35)
-
1709118-08080 BOLT (8X35)BOLT (8X35)
-
1809180-08151 SPACER (8.6X12X17.5)SPACER (8.6X12X17.5)
-
1909320-12033 CUSHIONCUSHION
-
2009103-08287 BOLT (8X35)BOLT (8X35)
-
2108322-01083 WASHERWASHER
-
2208361-25083 NUTNUT
