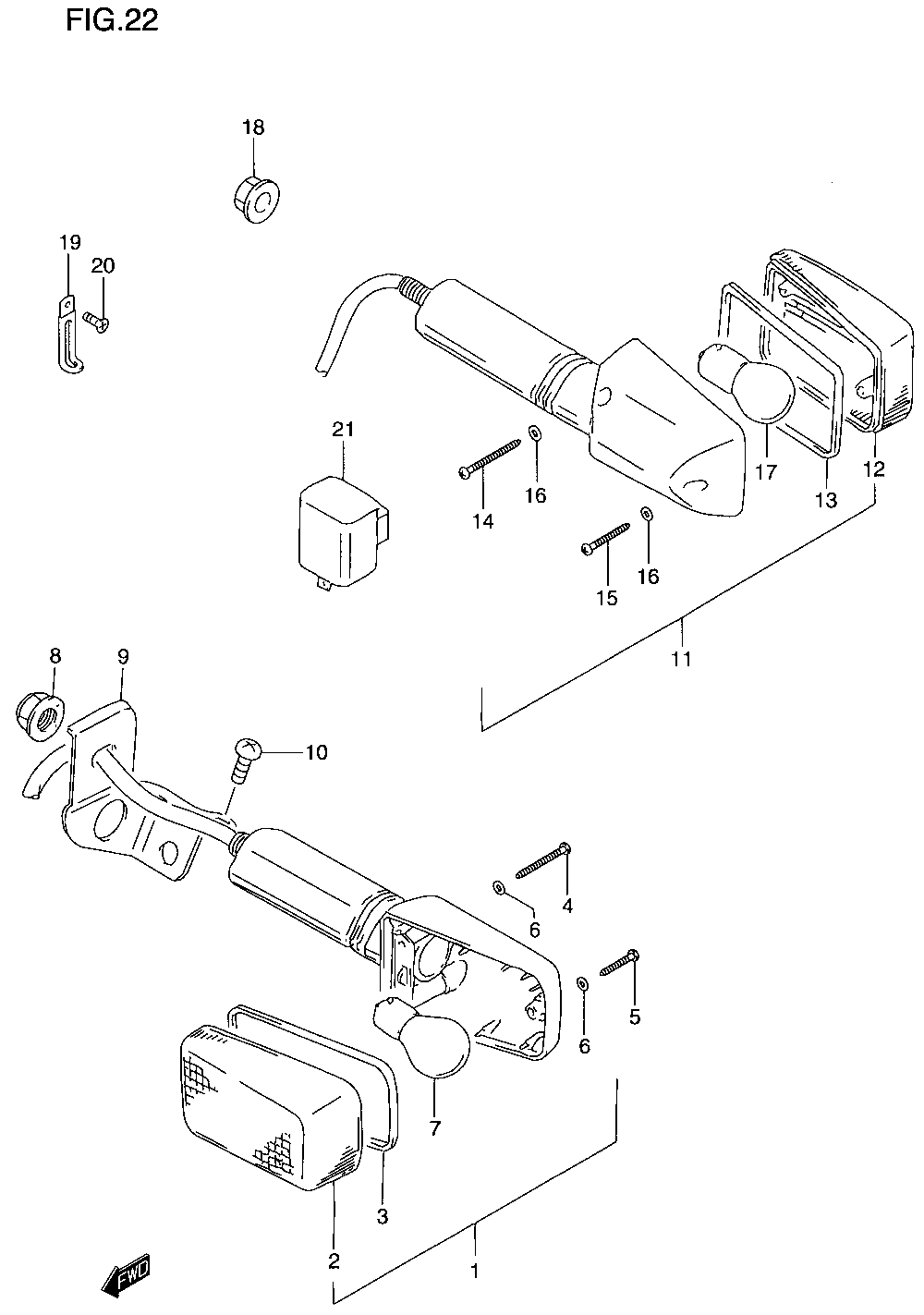

TURN SIGNAL ASSY. для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
135601-29EC0 LAMP ASSY, TURN SIGNAL (FRONT)LAMP ASSY, TURN SIGNAL (FRONT)
-
235612-17C20 ...LENS, TURN SIGNAL (FRONT)...LENS, TURN SIGNAL (FRONT)
-
335613-27A00 ...GASKET...GASKET
-
435623-27A00 ...SCREW...SCREW
-
535725-40511 ...SCREW...SCREW
-
635627-27A02 ...GASKET...GASKET
-
709471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
808316-10103 NUTNUT
-
9-135670-44A01 BRACKET, TURN (FRONT/RIGHT)BRACKET, TURN (FRONT/RIGHT)
-
9-235680-44A01 BRACKET, TURN (FRONT/LEFT)BRACKET, TURN (FRONT/LEFT)
-
1002142-05083 SCREWSCREW
-
1135603-29EK0 LAMP ASSY, TURN SIGNAL (REAR)LAMP ASSY, TURN SIGNAL (REAR)
-
1235652-17C20 ...LENS, TURN SIGNAL (REAR)...LENS, TURN SIGNAL (REAR)
-
1335613-27A00 ...GASKET...GASKET
-
1435623-27A00 ...SCREW...SCREW
-
1535725-40511 ...SCREW...SCREW
-
1635627-27A02 ...GASKET...GASKET
-
1709471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1808316-10103 NUTNUT
-
1909404-06429 CLAMPCLAMP
-
2003541-04103 SCREWSCREW
-
2138610-31X50 RELAY, TURN SIGNALRELAY, TURN SIGNAL
