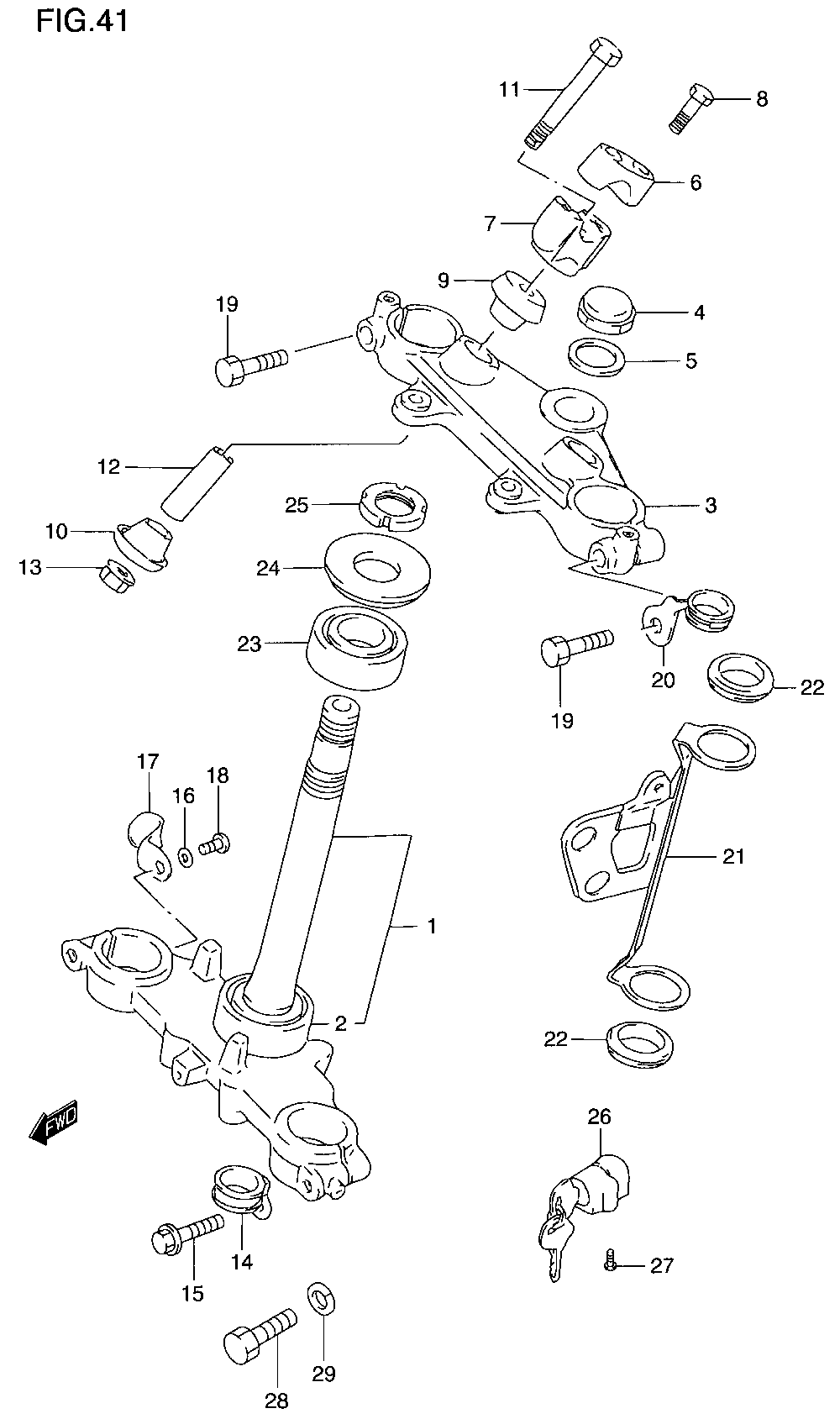

STEERING STEM для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
1-251410-42AB0 STEM, STEERING (BLACK)STEM, STEERING (BLACK)
-
209265-30009 ...BEARING (30X55X17)...BEARING (30X55X17)
-
351311-44AA0-291 HEAD, STEERING STEM (BLACK)HEAD, STEERING STEM (BLACK)
-
451353-24B00 NUT, CAPNUT, CAP
-
551354-14D00 WASHERWASHER
-
656211-27200-291 HOLDER, HANDLE (UPPER/BLACK)HOLDER, HANDLE (UPPER/BLACK)
-
756221-42A00-291 HOLDER, HANDLE (LOWER/BLACK)HOLDER, HANDLE (LOWER/BLACK)
-
801550-08353 BOLTBOLT
-
956240-42A00 RUBBER, HANDLE HOLDERRUBBER, HANDLE HOLDER
-
1056242-28C60 RUBBER (LOWER)RUBBER (LOWER)
-
11-256321-27E00 BOLT, HOLDER (LOWER)BOLT, HOLDER (LOWER)
-
1256243-42A00 SPACERSPACER
-
1308319-31107 NUTNUT
-
1451452-42A00 CLIPCLIP
-
1608321-01067 LOCK WASHERLOCK WASHER
-
1751452-05130 CLIPCLIP
-
1802112-06087 SCREWSCREW
-
1901550-10403 BOLTBOLT
-
2051452-48700 CLIPCLIP
-
21-151530-42A00 BRACKET, HEADLAMP (RIGHT)BRACKET, HEADLAMP (RIGHT)
-
21-251540-42A00 BRACKET, HEADLAMP (LEFT)BRACKET, HEADLAMP (LEFT)
-
2251553-34280 CUSHIONCUSHION
-
2309265-25019 BEARING (25X47X15)BEARING (25X47X15)
-
2451643-01B10 SEAL, STEERING DUST (UPPER)SEAL, STEERING DUST (UPPER)
-
2551631-08D30 NUT, STEERINGNUT, STEERING
-
2651900-44810 LOCK SET, STEERINGLOCK SET, STEERING
-
2702112-35123 SCREWSCREW
-
2851451-42A00 BOLTBOLT
-
2908321-01103 LOCK WASHERLOCK WASHER
