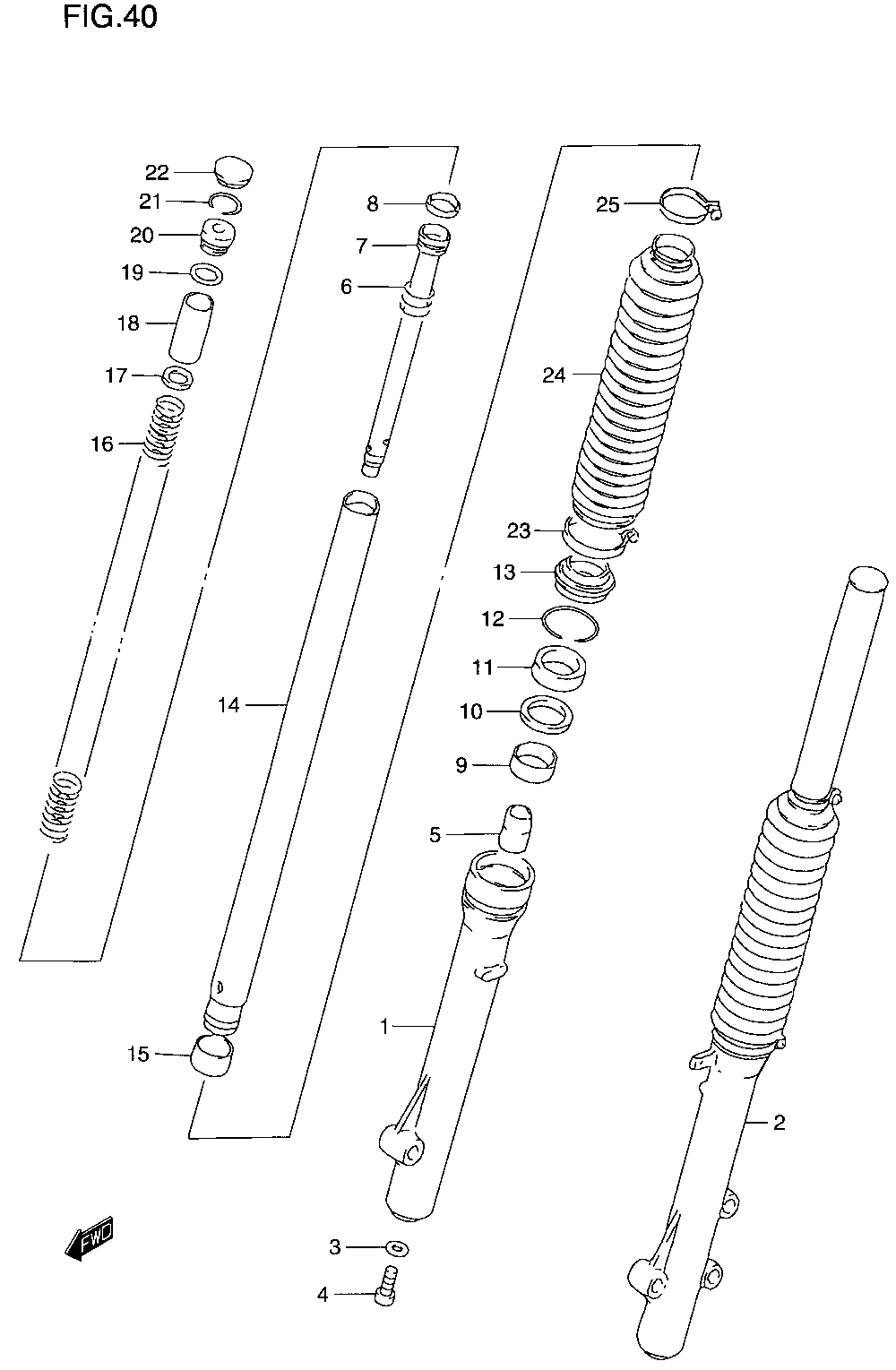

SUSPENSION - FRONT FORK для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
51103-42AA0 DAMPER ASSY, FORK (FRONT/RIGHT)DAMPER ASSY, FORK (FRONT/RIGHT)
-
51104-42AA0 DAMPER ASSY, FORK (FRONT/LEFT)DAMPER ASSY, FORK (FRONT/LEFT)
-
151131-01A01 ...TUBE (OUTER RIGHT)...TUBE (OUTER RIGHT)
-
251141-01A01 ...TUBE (OUTER LEFT)...TUBE (OUTER LEFT)
-
351148-36011 ...GASKET...GASKET
-
451147-42AA0 ...BOLT (CENTER)...BOLT (CENTER)
-
551195-43530 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
651177-01A00 ...SPRING, REBOUND...SPRING, REBOUND
-
751146-42AA0 ...CYLINDER...CYLINDER
-
851196-45200 ...RING, PISTON...RING, PISTON
-
951152-33300 ...BUSH, GUIDE...BUSH, GUIDE
-
1051168-30B00 ...SPACER, SEAL...SPACER, SEAL
-
1151153-19D10 ...SEAL, OIL...SEAL, OIL
-
1251156-01A00 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
1351173-01A00 ...DUST SEAL...DUST SEAL
-
1451110-01A30 ...TUBE (INNER)...TUBE (INNER)
-
1551121-33300 ...PISTON...PISTON
-
1651171-42AA0 ...SPRING, MAIN...SPRING, MAIN
-
1751192-20510 ...SEAT, SPRING...SEAT, SPRING
-
1851176-42AA0 ...SPACER, SPRING...SPACER, SPRING
-
1951181-31030 ...O RING...O RING
-
2051175-47400 ...BOLT, SPRING...BOLT, SPRING
-
2151169-47400 ...RING, STOPPER...RING, STOPPER
-
2251189-31230 ...CAP...CAP
-
2351576-42AA0 BAND, BOOT (LOWER)BAND, BOOT (LOWER)
-
24-251571-01A00-019 BOOT (BLACK)BOOT (BLACK)
-
2551575-01A00 BAND, BOOT (UPPER)BAND, BOOT (UPPER)
