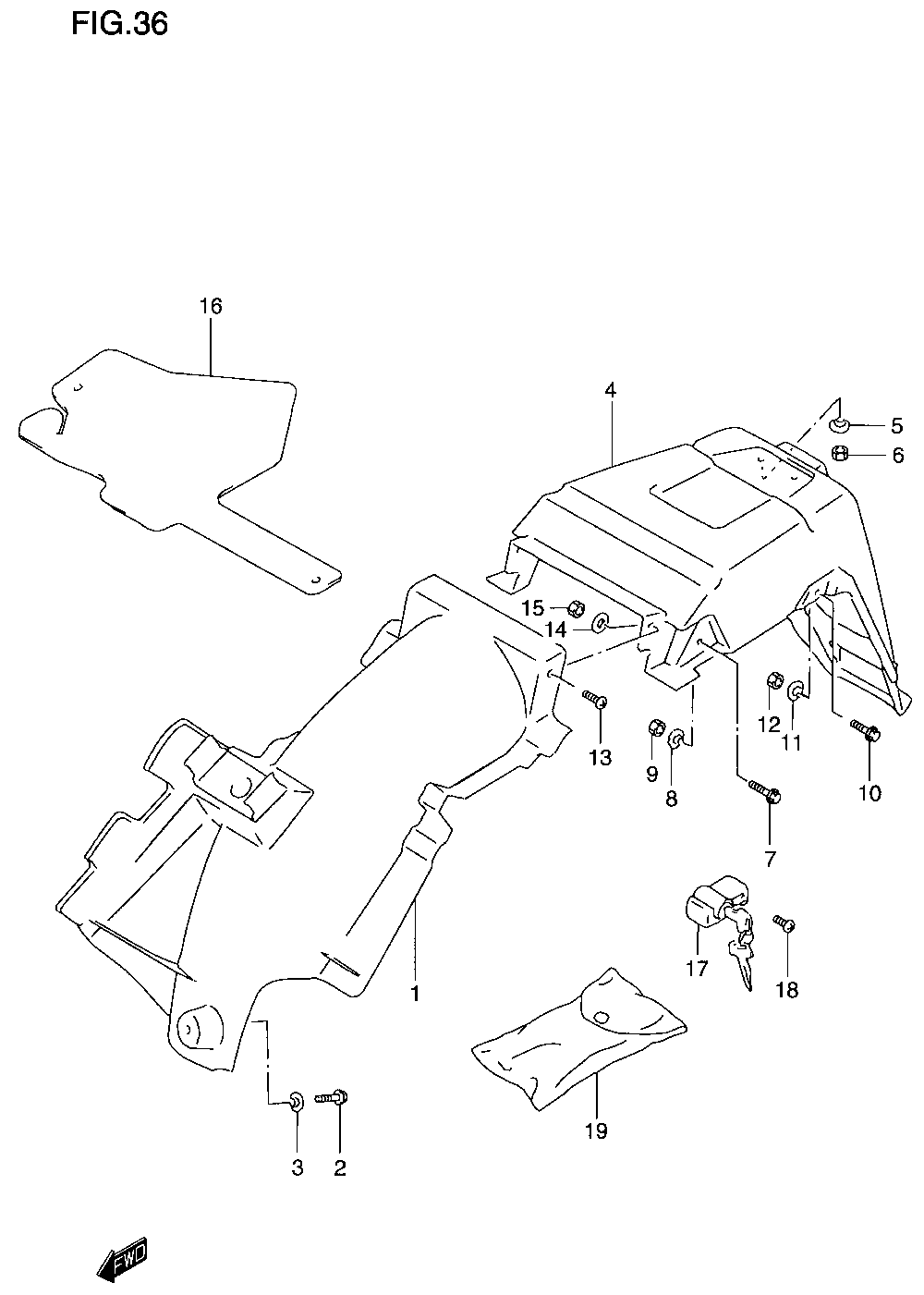

FENDER - REAR для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
163110-44AA0 BODY, FENDER (REAR/FRONT)BODY, FENDER (REAR/FRONT)
-
201550-06123 BOLTBOLT
-
309169-06010 WASHERWASHER
-
463100-44AC0-30H BODY ASSY, FENDER (REAR/WHITE)BODY ASSY, FENDER (REAR/WHITE)
-
509169-06045 WASHERWASHER
-
608319-31067 NUTNUT
-
709106-08120 BOLT (FRONT)BOLT (FRONT)
-
809169-08037 WASHERWASHER
-
908310-00083 NUTNUT
-
1001550-06203 BOLT (REAR)BOLT (REAR)
-
1109169-06045 WASHERWASHER
-
1208319-31067 NUTNUT
-
1302142-06163 SCREW (FRONT/REAR)SCREW (FRONT/REAR)
-
14-309160-06084 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
1508319-31067 NUTNUT
-
1663411-44AA0 MUD FLAP, FENDER (REAR/FRONT)MUD FLAP, FENDER (REAR/FRONT)
-
1795700-44810 LOCK SET, HELMETLOCK SET, HELMET
-
1809139-06089 SCREWSCREW
-
1909800-21022 TOOL SETTOOL SET
