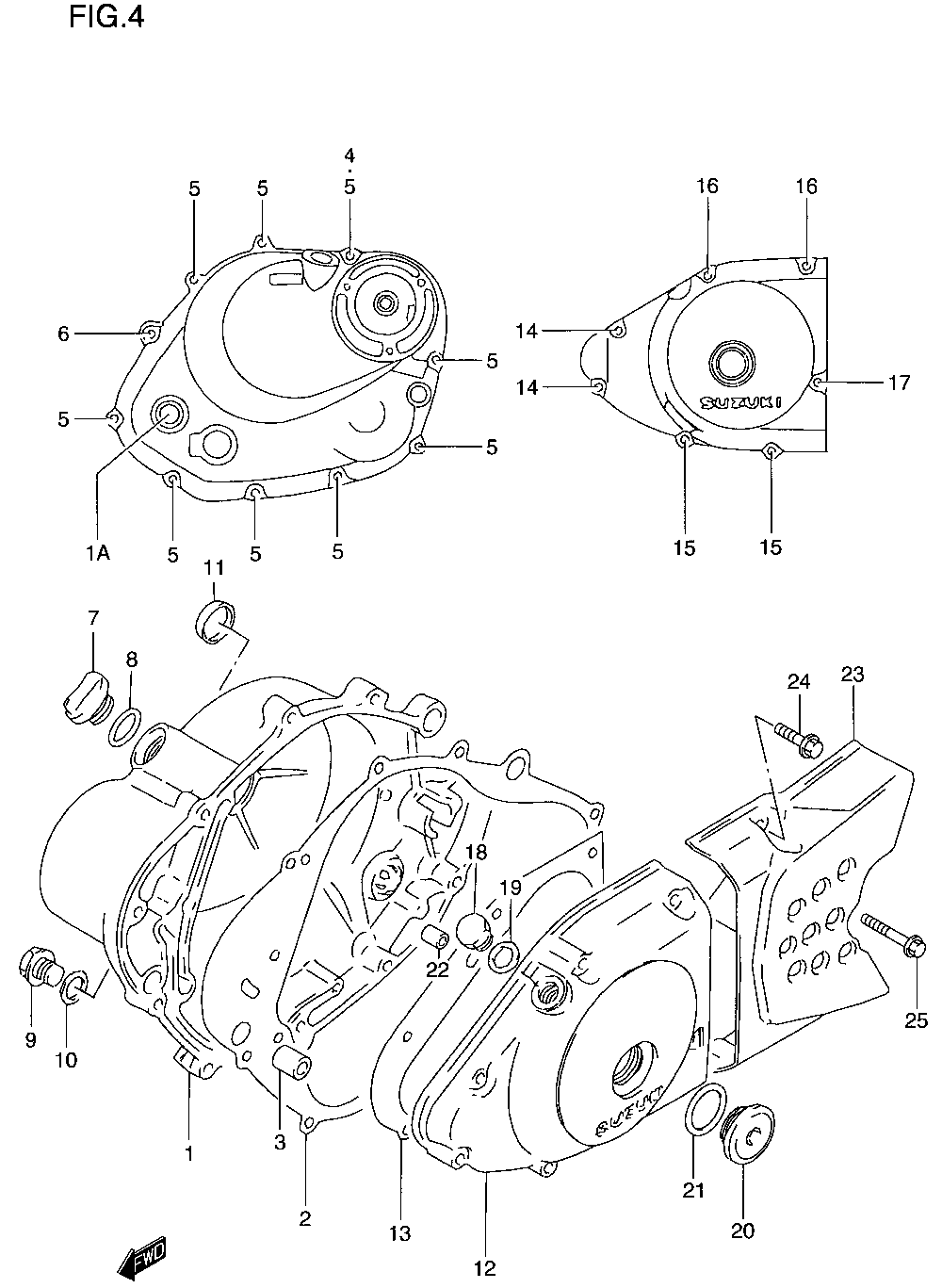

CRANKCASE COVER для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
111340-42A20 COVER, CLUTCHCOVER, CLUTCH
-
1A11971-45010 ...LENS, OIL LEVEL...LENS, OIL LEVEL
-
211482-05211 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
304211-13189 KNOCK PINKNOCK PIN
-
4-109168-06024 GASKET (5.8X11X1.2) (UP TO ENGINE NO. 123280)GASKET (5.8X11X1.2) (UP TO ENGINE NO. 123280)
-
4-209168-06023 GASKET (5.8X13X1.2) (ENGINE NO. 123281 AND UP)GASKET (5.8X13X1.2) (ENGINE NO. 123281 AND UP)
-
501547-06303 BOLTBOLT
-
601547-06453 BOLTBOLT
-
709259-20019 PLUG (20X10)PLUG (20X10)
-
809280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
909247-14026 PLUGPLUG
-
1009168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
1111342-12C51 PLUG, CLUTCH COVER KICKPLUG, CLUTCH COVER KICK
-
1211351-42A20 COVER, MAGNETOCOVER, MAGNETO
-
13-211483-05312 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1401547-06303 BOLTBOLT
-
1501547-06353 BOLTBOLT
-
1601547-06403 BOLTBOLT
-
1701547-06503 BOLTBOLT
-
1809247-12104 PLUGPLUG
-
1909168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
2009259-26011 PLUGPLUG
-
2109280-22008 O RING (D:3.1,ID:22.7)O RING (D:3.1,ID:22.7)
-
2204211-09129 KNOCK PINKNOCK PIN
-
2311360-42A20 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2401547-06253 BOLTBOLT
-
2501547-06353 BOLTBOLT
