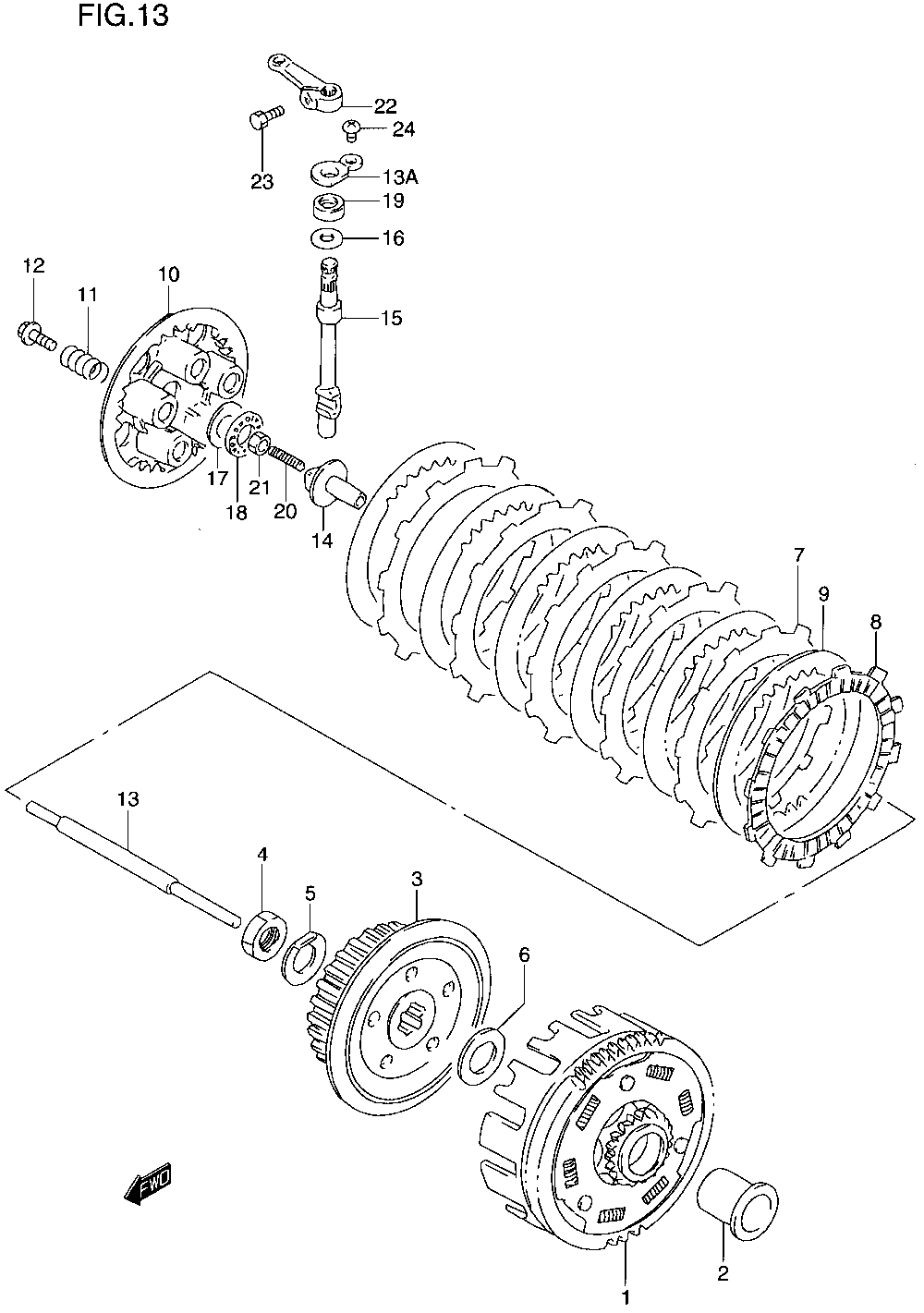

CLUTCH ASSY. для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
121200-42A50 GEAR ASSY, PRIMARY DRIVENGEAR ASSY, PRIMARY DRIVEN
-
221251-13E00 SPACER, PRIMARY DRIVENSPACER, PRIMARY DRIVEN
-
321411-42A02 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
4-209140-16005 NUTNUT
-
509169-16003 WASHERWASHER
-
608211-20355 WASHERWASHER
-
721441-42A00 PLATE, CLUTCH DRIVEPLATE, CLUTCH DRIVE
-
821441-13A01 PLATE, CLUTCH DRIVEPLATE, CLUTCH DRIVE
-
921451-01B40 PLATE, DRIVEN (T:1.4)PLATE, DRIVEN (T:1.4)
-
1021462-14102 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1109440-15021 SPRINGSPRING
-
12-209116-05020 BOLT (5X16)BOLT (5X16)
-
1323110-05202 ROD, CLUTCH PRESSUREROD, CLUTCH PRESSURE
-
13A23117-05200 RETAINER, CLRLSE OIL SEALRETAINER, CLRLSE OIL SEAL
-
1423121-38201 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
1523122-05200 CAM SHAFT, CLUTCH RELEASECAM SHAFT, CLUTCH RELEASE
-
16-209181-10195 THRUST WASHER (10X20X1.0)THRUST WASHER (10X20X1.0)
-
1709160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
1809263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
1909282-10012 OIL SEAL (10X20X6)OIL SEAL (10X20X6)
-
2009134-06010 SCREWSCREW
-
2109140-06023 NUT (6X3.6)NUT (6X3.6)
-
2223271-46010 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2301500-06163 BOLTBOLT
-
2402142-06103 SCREWSCREW
