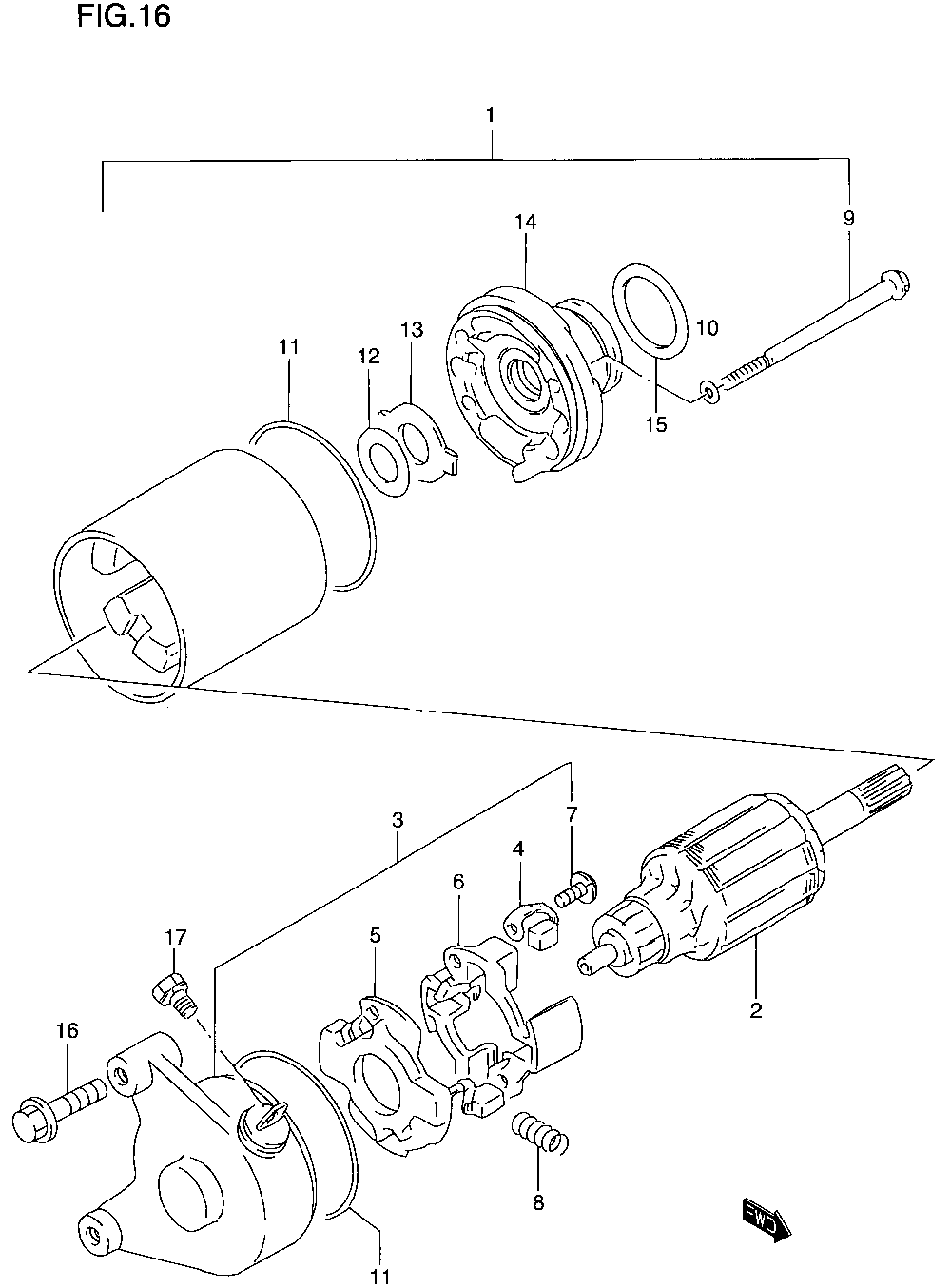

STARTING MOTOR для Suzuki DR200SEY - 2000 года выпуска
-
№АртикулНазвание
-
131100-42A01 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231310-11D00 ...ARMATURE...ARMATURE
-
331175-42A01 ...FRAME ASSY, COMMUTATOR END...FRAME ASSY, COMMUTATOR END
-
431132-32C10 ......BRUSH......BRUSH
-
531130-32C20 ......BRUSH SUB ASSY, STARTER......BRUSH SUB ASSY, STARTER
-
631133-32C10 ......HOLDER, BRUSH......HOLDER, BRUSH
-
702112-34123 ......SCREW......SCREW
-
831135-32C10 ...SPRING...SPRING
-
931281-32C10 ...BOLT...BOLT
-
1031156-38300 ...O RING...O RING
-
1131264-32C10 ...O RING...O RING
-
1231361-38300 ...SHIM, NO.3...SHIM, NO.3
-
1331361-32C10 ...PLATE, LOCK...PLATE, LOCK
-
1431150-42A01 ...BRACKET...BRACKET
-
1509280-24003 ...O RING (D:3,ID:24.5)...O RING (D:3,ID:24.5)
-
1601547-06303 BOLTBOLT
-
1709137-05004 SCREW (5X8)SCREW (5X8)
