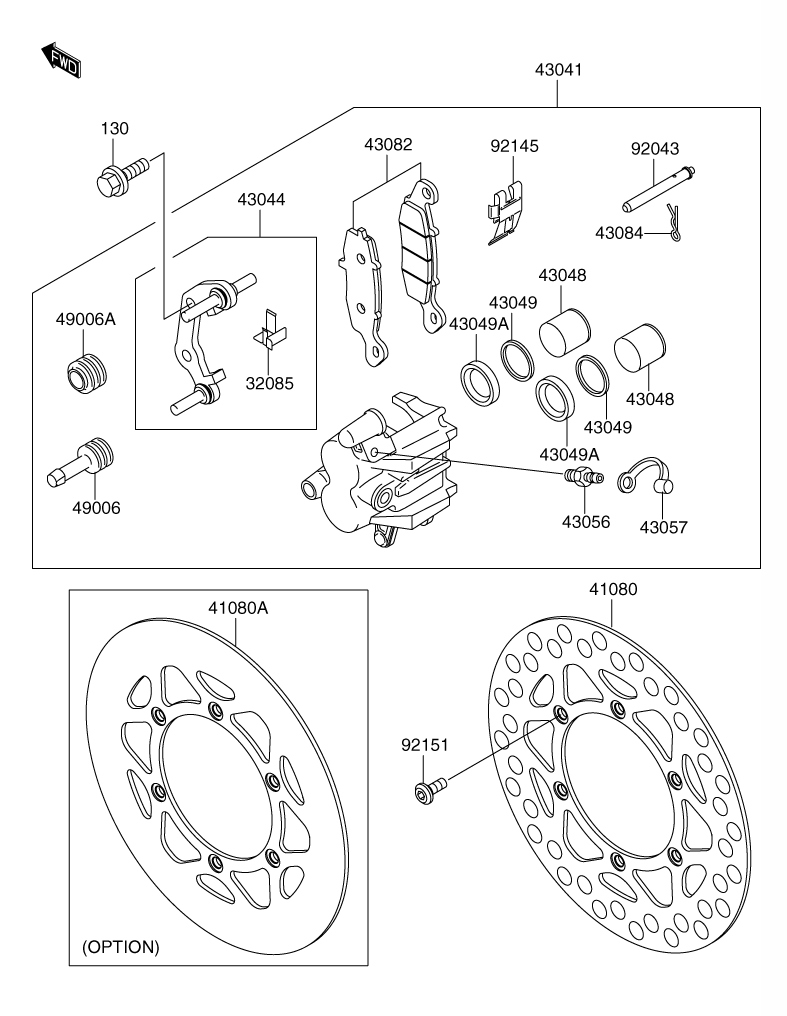

BRAKE - FRONT CALIPER ASSY. для Suzuki RM100K3 - 2003 года выпуска
-
№АртикулНазвание
-
32085K3208-51437 STOPPERSTOPPER
-
41080K4108-01490 DISC (FRONT)DISC (FRONT)
-
41080K4108-01491 DISC (FRONT) (OPT)DISC (FRONT) (OPT)
-
43041KK430-41168-1GN CALIPER, ASSY. (FRONT/LEFT/SILVER)CALIPER, ASSY. (FRONT/LEFT/SILVER)
-
43044K4304-41119 HOLDER, COMP, CALIPER (FRONT)HOLDER, COMP, CALIPER (FRONT)
-
43048K4304-81083 PISTON, CALIPERPISTON, CALIPER
-
43049K4304-91059 PACKING, PISTONPACKING, PISTON
-
43049K4304-91090 PACKING, PISTON SEALPACKING, PISTON SEAL
-
43085KK430-85001 BREATHER, BRAKEBREATHER, BRAKE
-
43057KK430-57003 CAP, BREATHERCAP, BREATHER
-
43082K4308-21196 PAD, ASSY., BRAKEPAD, ASSY., BRAKE
-
43084KK430-84003 CLAMP, PADCLAMP, PAD
-
49006K4900-61054 BOOT, CALIPERBOOT, CALIPER
-
49006K4900-61055 BOOT, CALIPERBOOT, CALIPER
-
92043K9204-31356 PIN, PADPIN, PAD
-
92145K9214-51260 SPRING, PADSPRING, PAD
-
92151K9215-11799 BOLT, DISC PLATE, 6MMBOLT, DISC PLATE, 6MM
-
130KK130-P0840 BOLT, FLANGEDBOLT, FLANGED
