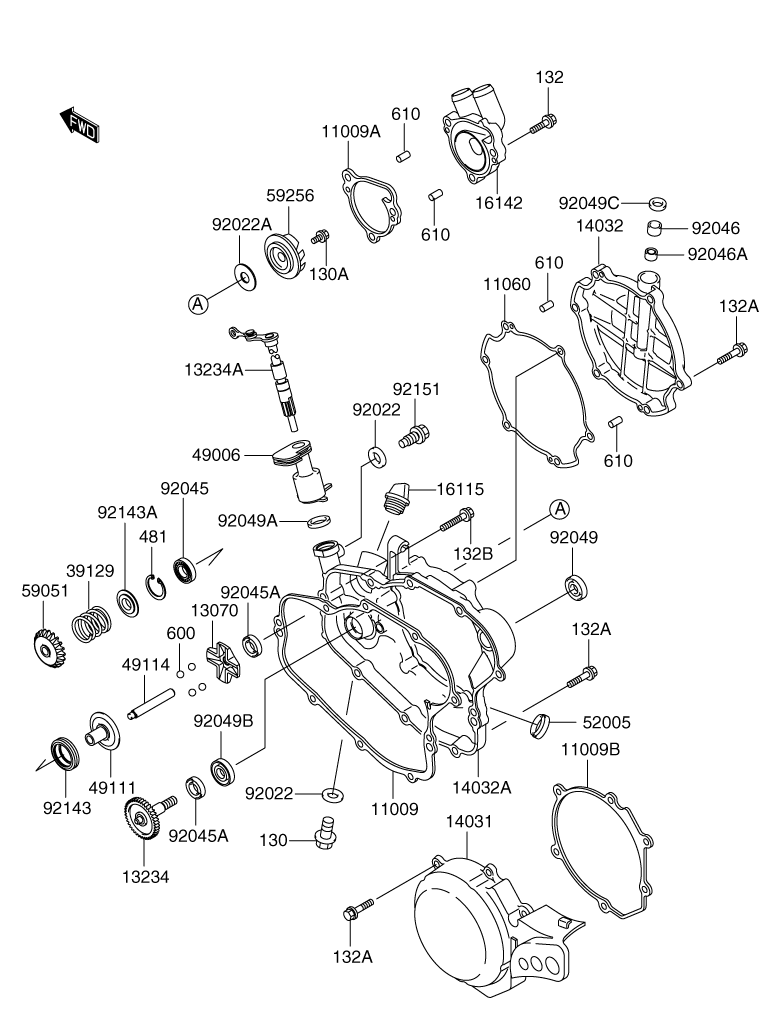

CRANKCASE COVER W/ WATER PUMP для Suzuki RM100K3 - 2003 года выпуска
-
№АртикулНазвание
-
11009K1100-91971 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11009K1100-91972 GASKET, PUMP COVERGASKET, PUMP COVER
-
11009K1100-91973 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11060K1106-01795 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
13070K1307-01309 GUIDE, GOVERNORGUIDE, GOVERNOR
-
13234K1323-41103 SHAFT, COMP, WATER PUMPSHAFT, COMP, WATER PUMP
-
13234K1323-41104 SHAFT, COMP, GOVERNORSHAFT, COMP, GOVERNOR
-
14031K1403-11241 COVER, GENERATORCOVER, GENERATOR
-
14032K1403-21463 COVER, CLUTCH, OUTSIDECOVER, CLUTCH, OUTSIDE
-
14032K1403-21514 COVER, CLUTCH, INSIDECOVER, CLUTCH, INSIDE
-
16115KK161-15018 CAP, OIL FILLERCAP, OIL FILLER
-
16142K1614-21144 COVER, PUMP, WATERCOVER, PUMP, WATER
-
39129K3912-91022 SPRING, GOVERNORSPRING, GOVERNOR
-
49006K4900-61313 BOOT, GOVERNORBOOT, GOVERNOR
-
49111K4911-11064 HOLDER, GOVERNOR WEIGHTHOLDER, GOVERNOR WEIGHT
-
49114K4911-41106 SHAFT, GOVERNORSHAFT, GOVERNOR
-
52005K5200-51055 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
59051K5905-11412 GEAR, SPURGEAR, SPUR
-
59256K5925-61064 IMPELLERIMPELLER
-
92022KK920-22077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
92022K9202-21380 WASHER, 5.2X13X1WASHER, 5.2X13X1
-
92045K9204-51246 BEARING, BALL, 6901BEARING, BALL, 6901
-
92045K9204-51305 BEARING, BALL, 608MC3BEARING, BALL, 608MC3
-
92046K9204-61160 BEARING, NEEDLE, HK1010BEARING, NEEDLE, HK1010
-
92046K9204-61217 BEARING, NEEDLE, 6BTM109BEARING, NEEDLE, 6BTM109
-
92049KK920-49002 SEAL, OIL, SB16244SEAL, OIL, SB16244
-
92049K9204-91262 SEAL, OILSEAL, OIL
-
92049K9204-91366 SEAL, OIL, MHSD8X18X10J, 1SEAL, OIL, MHSD8X18X10J, 1
-
92049K9204-91414 SEAL, OIL, BG1408F0SEAL, OIL, BG1408F0
-
92143K9214-31932 COLLARCOLLAR
-
92143K9214-31933 COLLARCOLLAR
-
92151K9215-11180 BOLTBOLT
-
130KK130-G0608 BOLT, FLANGEDBOLT, FLANGED
-
130KK130-P0510 BOLT, FLANGEDBOLT, FLANGED
-
132KK132-G0620 BOLT, FLANGED, (SMALL)BOLT, FLANGED, (SMALL)
-
132KK132-G0625 BOLT, FLANGED, (SMALL)BOLT, FLANGED, (SMALL)
-
132KK132-V0630 BOLT, FLANGED, (SMALL)BOLT, FLANGED, (SMALL)
-
481KK481-J2400 CIRCLIPCIRCLIP
-
600KK600-A1000 BALL, STEEL, 5/16"BALL, STEEL, 5/16"
-
610KK610-A0408 ROLLER, 4X8ROLLER, 4X8
