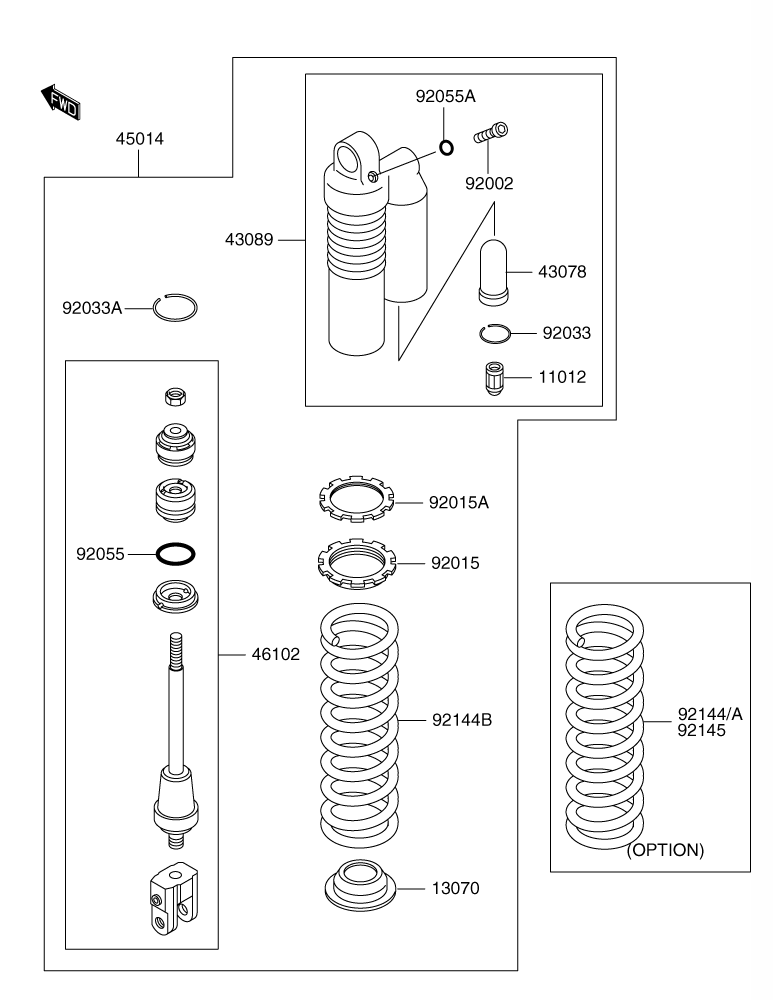

SUSPENSION - REAR SHOCK ABSORBER для Suzuki RM100K3 - 2003 года выпуска
-
№АртикулНазвание
-
11012K1101-21391 CAP, VALVE AIRCAP, VALVE AIR
-
13070K1307-01233 GUIDE, SPRINGGUIDE, SPRING
-
43078K4307-81112 RESERVOIR, SHOCKABSORBERRESERVOIR, SHOCKABSORBER
-
43089K4308-91162 CYLINDER, SHOCKABSORBERCYLINDER, SHOCKABSORBER
-
45014KK450-14181-7VM SHOCKABSORBER, S.REDSHOCKABSORBER, S.RED
-
46102K4610-21411 ROD, SHOCKABSORBERROD, SHOCKABSORBER
-
92002K9200-21955 BOLT, DRAINBOLT, DRAIN
-
92015K9201-51679 NUT, SPRING ADJUSTNUT, SPRING ADJUST
-
92015K9201-51713 NUT, SPRING ADJUST LOCKNUT, SPRING ADJUST LOCK
-
92033K9203-31091 RING, SNAP, SHOCK (REAR)RING, SNAP, SHOCK (REAR)
-
92033K9203-31211 RING, SNAP, SHOCKABSORBERRING, SNAP, SHOCKABSORBER
-
92055K9205-51334 O-RING, RODO-RING, ROD
-
670KK670-B1504 O -RING, 4MMO -RING, 4MM
-
92144KK921-44157-0VM SPRING, SHOCKABSORBER, K=4.6, RE (OPT)SPRING, SHOCKABSORBER, K=4.6, RE (OPT)
-
92144KK921-44157-1VM SPRING, SHOCKABSORBER, K=5.0, RE (OPT)SPRING, SHOCKABSORBER, K=5.0, RE (OPT)
-
92144KK921-44194-5VM SPRING, SHOCKABSORBER, K=4.8, RESPRING, SHOCKABSORBER, K=4.8, RE
-
92145KK921-45137-1VM SPRING, SHOCKABSORBER, K=4.4, RE (OPT)SPRING, SHOCKABSORBER, K=4.4, RE (OPT)
