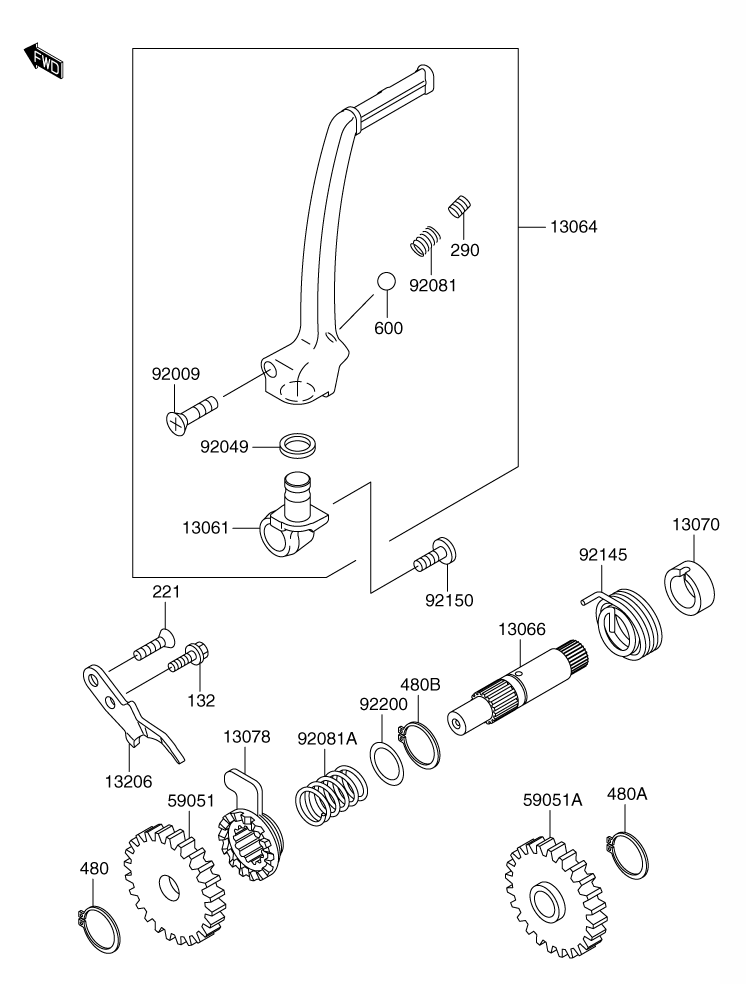

STARTER - KICK для Suzuki RM100K3 - 2003 года выпуска
-
№АртикулНазвание
-
13061K1306-11712 BOSS, KICK PEDALBOSS, KICK PEDAL
-
13064K1306-41188 LEVER, ASSY., KICK, PEDALLEVER, ASSY., KICK, PEDAL
-
13066K1306-61097 SHAFT, KICKSHAFT, KICK
-
13070K1307-01314 GUIDEGUIDE
-
13078K1307-81004 RATCHETRATCHET
-
13206K1320-61066 GUIDE, KICKGUIDE, KICK
-
59051K5905-11026 GEAR, SPUR (32T)GEAR, SPUR (32T)
-
59051K5905-11147 GEAR, SPUR, KICK (31T)GEAR, SPUR, KICK (31T)
-
92009K9200-91607 SCREW, 6X27SCREW, 6X27
-
92049K9204-91468 SEAL, OIL, SR12162.5SEAL, OIL, SR12162.5
-
92081KK920-81020 SPRING, KICK PEDALSPRING, KICK PEDAL
-
92081KK920-81122 SPRING, RATCHETSPRING, RATCHET
-
92145K9214-51058 SPRINGSPRING
-
92150K9215-01737 BOLT, SOCKET (6X16)BOLT, SOCKET (6X16)
-
92200K9220-01209 WASHER, KICKSHAFTWASHER, KICKSHAFT
-
132KK132-G0616 BOLT, FLANGED, (SMALL)BOLT, FLANGED, (SMALL)
-
221KK221-B0618 SCREW, CSK, CROS (6X18)SCREW, CSK, CROS (6X18)
-
290KK290-P0808 SCREW, SET, SOCKETSCREW, SET, SOCKET
-
480KK480-J1200 CIRCLIP, TYPE, C (12MM)CIRCLIP, TYPE, C (12MM)
-
480KK480-J1500 CIRCLIP, TYPE, C (15MM)CIRCLIP, TYPE, C (15MM)
-
480KK480-J1600 CIRCLIP, TYPE, C (16MM)CIRCLIP, TYPE, C (16MM)
-
600KK600-A0800 BALL, STEEL (1/4")BALL, STEEL (1/4")
