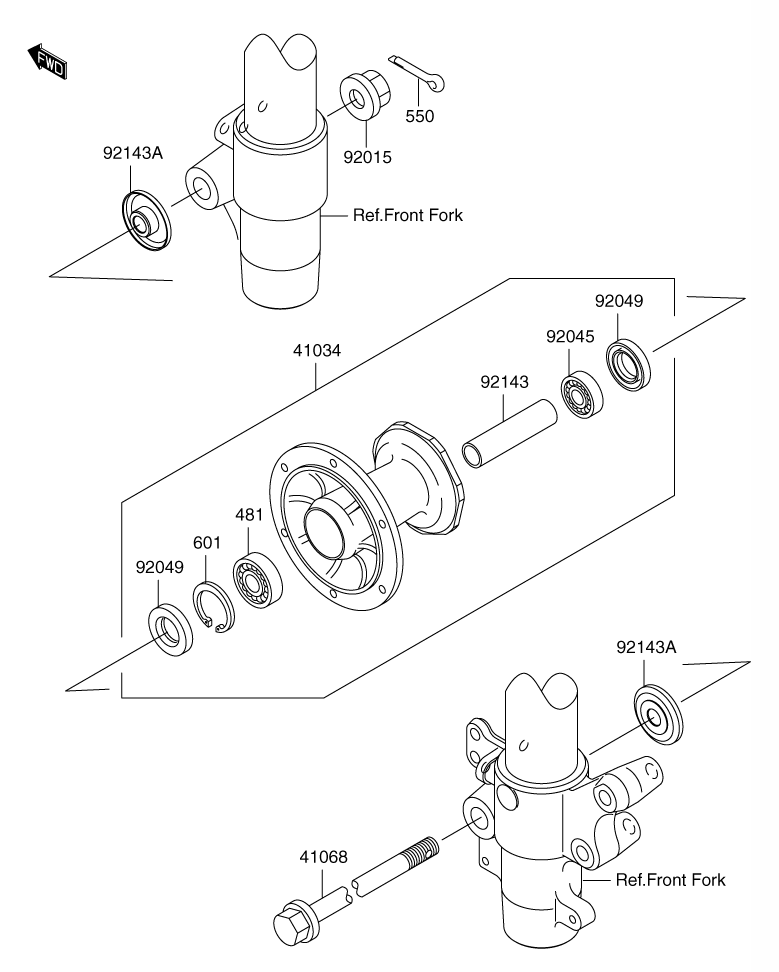

HUB - FRONT для Suzuki RM100K3 - 2003 года выпуска
-
№АртикулНазвание
-
41034K4103-41310 DRUM, ASSY., BRAKE (FRONT)DRUM, ASSY., BRAKE (FRONT)
-
41068K4106-81333 AXLE (FRONT)AXLE (FRONT)
-
92015K9201-51433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
92045K9204-51062 BEARING, BALL, TMB201LLUC3/2ABEARING, BALL, TMB201LLUC3/2A
-
92049K9204-91257 SEAL, OIL, TC20376.5SEAL, OIL, TC20376.5
-
92143K9214-31935 COLLAR, FR BRAKE DRUM, L=76COLLAR, FR BRAKE DRUM, L=76
-
92143K9214-31936 COLLAR, FR AXLE, L=12COLLAR, FR AXLE, L=12
-
481KK481-J3700 CIRCLIP, TYPE, C, 37MMCIRCLIP, TYPE, C, 37MM
-
550KK550-D2520 PIN, COTTER, 2.5X20PIN, COTTER, 2.5X20
-
601KKK60-1B630-1UU BEARING, BALL, #6201UUC3BEARING, BALL, #6201UUC3
Все узлы модели:
- AIR CLEANER ASSY.
- BRAKE - FRONT CALIPER ASSY.
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER ASSY.
- BRAKE - REAR MASTER CYLINDER ASSY.
- BRAKE - REAR PEDAL
- CARBURETOR
- CLUTCH ASSY.
- CRANKCASE
- CRANKCASE COVER W/ WATER PUMP
- CRANKSHAFT W/ PISTONS
- CYLINDER HEAD W/ CYLINDER
- DECALS
- ELECTRICAL - GENERATOR
- ELECTRICAL - IGNITION SYSTEM
- ENGINE MOUNTING
- FENDER - FRONT / REAR
- FOOTREST ASSY.
- FRAME
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK
- GEAR SHIFTER
- HANDLEBAR - CABLE
- HANDLEBAR W/ SWITCHES - LEVERS
- • HUB - FRONT
- HUB - REAR
- LABELS
- MUFFLER
- NUMBER PLATE
- RADIATOR ASSY.
- SEAT ASSY.
- SIDE COVER
- STAND
- STARTER - KICK
- SUSPENSION - CUSHION LEVER
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TOOLS
- TRANSMISSION
- WHEELS W/ TIRES
