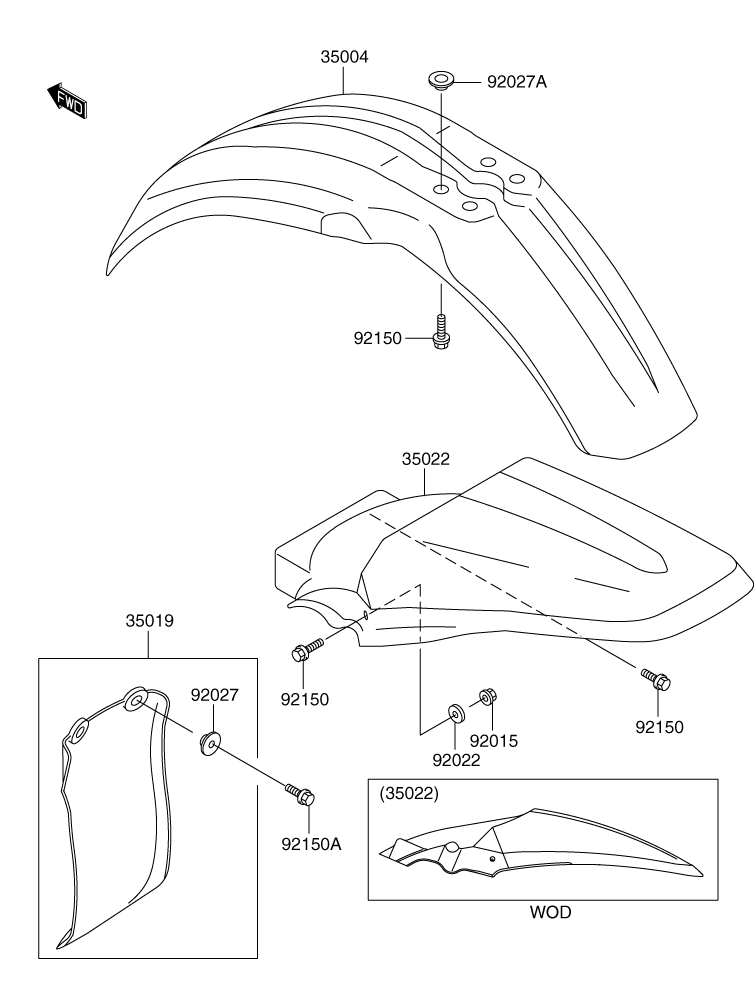

FENDER - FRONT / REAR для Suzuki RM100K3 - 2003 года выпуска
-
№АртикулНазвание
-
35004K3500-41294-267 FENDER, (FRONT/YELLOW)FENDER, (FRONT/YELLOW)
-
35019K3501-91212 FLAP, FENDER (REAR)FLAP, FENDER (REAR)
-
35022K3502-21353-267 FENDER, COMP, (REAR/YELLOW)FENDER, COMP, (REAR/YELLOW)
-
92015K9201-51339 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92022KK920-22125 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
92027K9202-71757 COLLARCOLLAR
-
92027K9202-71936 COLLARCOLLAR
-
92150K9215-01892 BOLT, 6X20BOLT, 6X20
-
92150K9215-01506 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
