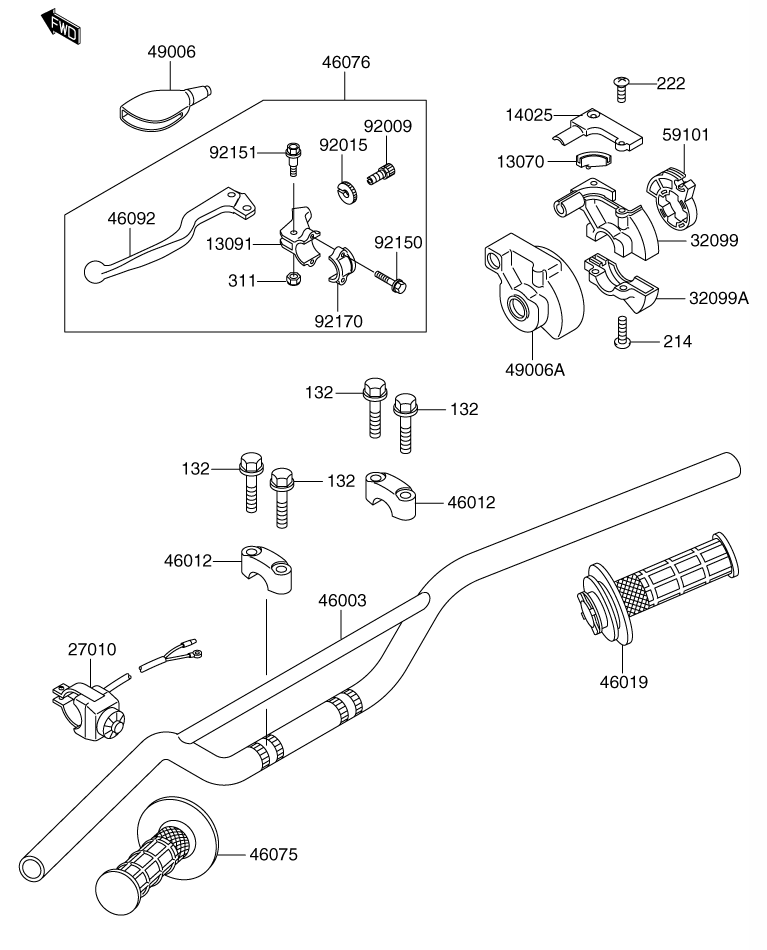

HANDLEBAR W/ SWITCHES - LEVERS для Suzuki RM100K3 - 2003 года выпуска
-
№АртикулНазвание
-
13070K1307-01074 GUIDE, THROTTLEGUIDE, THROTTLE
-
13091K1309-11728 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
14025K1402-51646 COVER, THROTTLE CASE UPPCOVER, THROTTLE CASE UPP
-
27010K2701-01415 SWITCH, ENGINE STOPSWITCH, ENGINE STOP
-
32099K3209-91036 CASE, THROTTLE UPPCASE, THROTTLE UPP
-
32099K3209-91044 CASE, THROTTLE LWRCASE, THROTTLE LWR
-
46003KK460-03146-8CE HANDLE, SILVERHANDLE, SILVER
-
46012K4601-21191 HOLDER, HANDLE, UPPHOLDER, HANDLE, UPP
-
46019K4601-91054 GRIP, ASSY., THROTTLEGRIP, ASSY., THROTTLE
-
46075K4607-51024 GRIP, (LEFT)GRIP, (LEFT)
-
46076K4607-61203 LEVER, ASSY., GRIP, CLUTCHLEVER, ASSY., GRIP, CLUTCH
-
46092K4609-21165 LEVER, GRIP, CLUTCHLEVER, GRIP, CLUTCH
-
49006K4900-61017 BOOT, LEVER HOLDERBOOT, LEVER HOLDER
-
49006K4900-61097 BOOT, THROTTLE CASEBOOT, THROTTLE CASE
-
59101K5910-11110 REEL, THROTTLEREEL, THROTTLE
-
92009K9200-91476 SCREW, CABLE ADJUST, 8MMSCREW, CABLE ADJUST, 8MM
-
46056KK460-56005 NUT, CABLE ADJUST LOCK, 8MMNUT, CABLE ADJUST LOCK, 8MM
-
92150K9215-01474 BOLTBOLT
-
92151K9215-11103 BOLT, LEVER SET, 5MMBOLT, LEVER SET, 5MM
-
92170K9217-01226 CLAMP, LEVER HOLDERCLAMP, LEVER HOLDER
-
132KK132-G0830 BOLT, FLANGED, (SMALL)BOLT, FLANGED, (SMALL)
-
220KK220-C0518 SCREW, PAN, CROS, 5X18SCREW, PAN, CROS, 5X18
-
222KK222-E0412 SCREW, CSK, RD, CROSSCREW, CSK, RD, CROS
-
311KK311-B0500 NUT, HEXNUT, HEX
