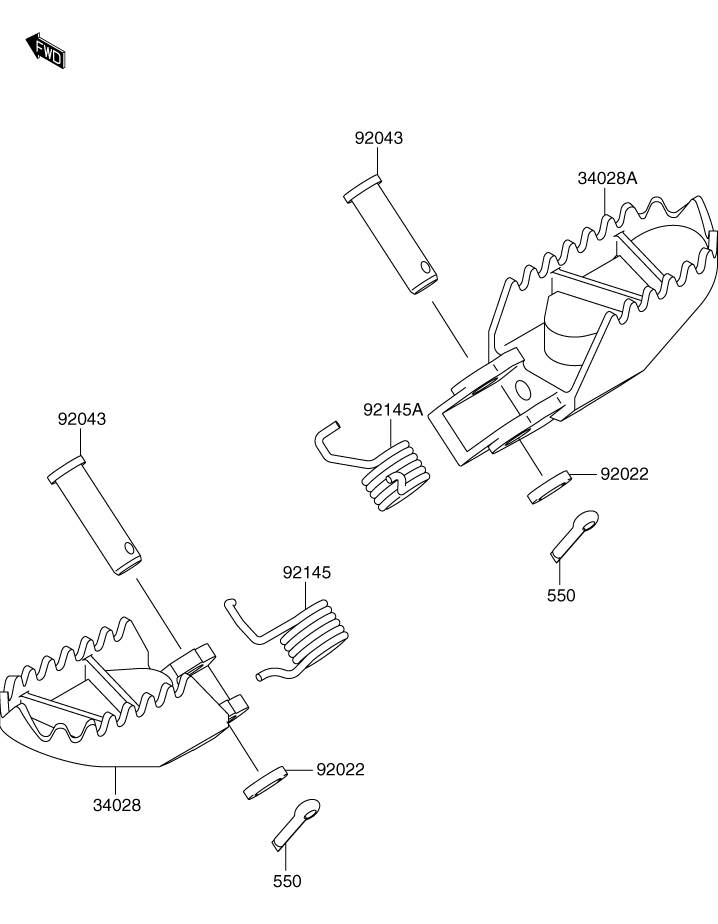

FOOTREST ASSY. для Suzuki RM100K3 - 2003 года выпуска
-
№АртикулНазвание
-
34028KK340-28149-8CE STEP, (LEFT/SILVER)STEP, (LEFT/SILVER)
-
34028KK340-28149-9CE STEP, (RIGHT/SILVER)STEP, (RIGHT/SILVER)
-
92022K9202-21829 WASHER, 10.2X16X1WASHER, 10.2X16X1
-
92043K9204-31643 PIN, 10X37.5PIN, 10X37.5
-
92145K9214-51106 SPRING, STEP (LEFT)SPRING, STEP (LEFT)
-
92145K9214-51107 SPRING, STEP (RIGHT)SPRING, STEP (RIGHT)
-
550KK550-S3020 PIN, COTTER, 3.0X20PIN, COTTER, 3.0X20
