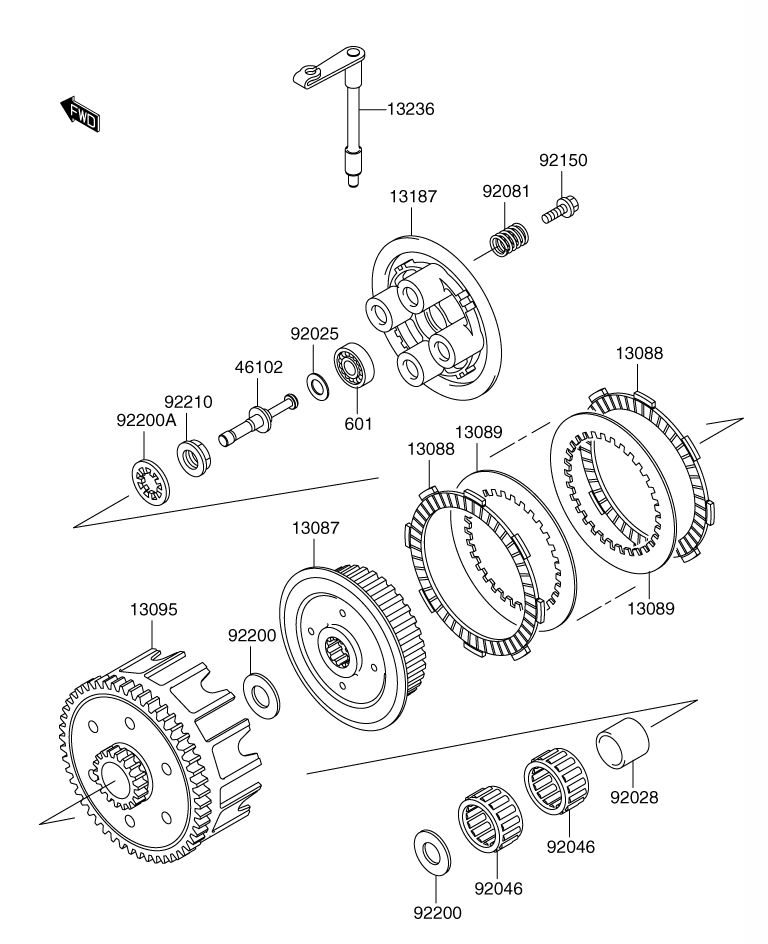

CLUTCH ASSY. для Suzuki RM100K3 - 2003 года выпуска
-
№АртикулНазвание
-
13087K1308-71170 HUB, CLUTCHHUB, CLUTCH
-
13088K1308-81016 PLATE, FRICTION, ID=91PLATE, FRICTION, ID=91
-
13089K1308-91120 PLATE, CLUTCHPLATE, CLUTCH
-
13095K1309-51406 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
13187K1318-71013 PLATE, CLUTCH OPERATINGPLATE, CLUTCH OPERATING
-
13236K1323-61298 LEVER, COMP, RELEASELEVER, COMP, RELEASE
-
46102K4610-21409 ROD, CLUTCH RELEASEROD, CLUTCH RELEASE
-
92025K9202-51780 SHIMSHIM
-
92028K9202-81811 BUSHING (20X25X21.1)BUSHING (20X25X21.1)
-
92046K9204-61254 BEARING, NEEDLE, KT252910EGBEARING, NEEDLE, KT252910EG
-
92081K9208-11492 SPRING, CLUTCHSPRING, CLUTCH
-
92150K9215-01715 BOLTBOLT
-
92200K9220-01351 WASHER (20.3X33X2.0)WASHER (20.3X33X2.0)
-
92200K9220-01352 WASHERWASHER
-
92210K9221-01113 NUT, 16MMNUT, 16MM
-
601KK601-A6001 BEARING, BALLBEARING, BALL
