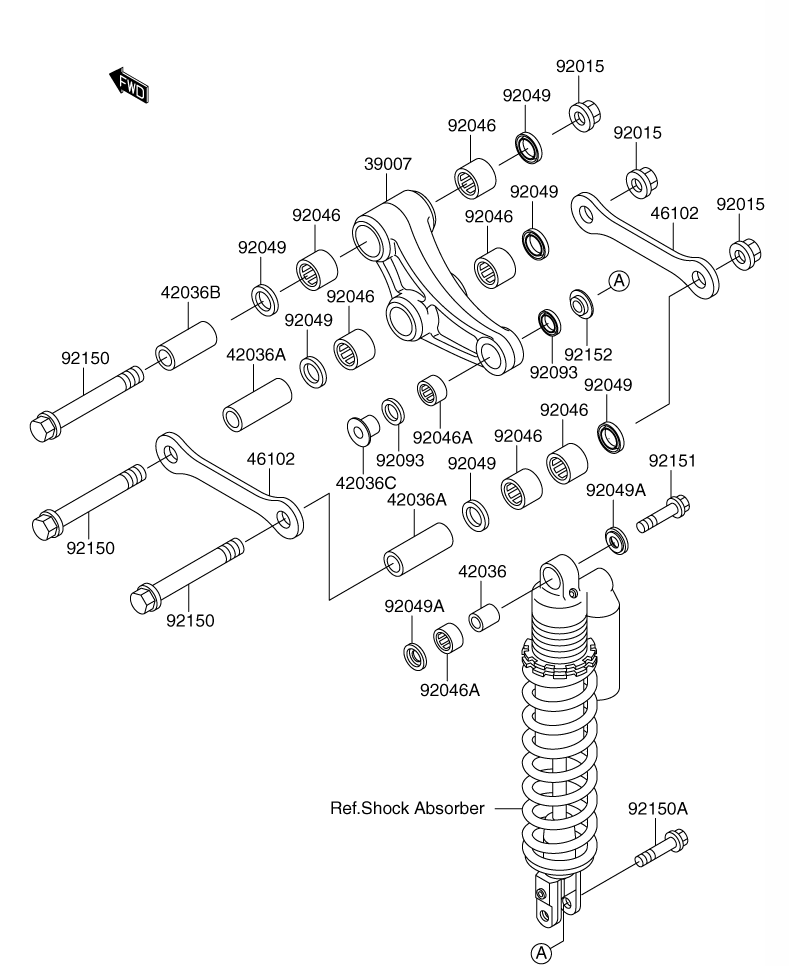

SUSPENSION - CUSHION LEVER для Suzuki RM100K3 - 2003 года выпуска
-
№АртикулНазвание
-
39007K3900-71262 ARM, SUSP, UNI TRAKARM, SUSP, UNI TRAK
-
42036K4203-61248 SLEEVE, 10X16X19SLEEVE, 10X16X19
-
42036K4203-61273 SLEEVE, 12X18X57SLEEVE, 12X18X57
-
42036K4203-61274 SLEEVE, 12X18X49SLEEVE, 12X18X49
-
42036K4203-61351 SLEEVESLEEVE
-
46102K4610-21291 ROD, SUSPENSIONROD, SUSPENSION
-
92015K9201-51433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
92046K9204-61144 BEARING, NEEDLE, 18BM2416BEARING, NEEDLE, 18BM2416
-
92046K9204-61192 BEARING, NEEDLE, 16BM2212BEARING, NEEDLE, 16BM2212
-
92049K9204-91328 SEAL, OILSEAL, OIL
-
92049K9204-91330 SEAL, OILSEAL, OIL
-
92093K9209-31436 SEALSEAL
-
92150K9215-01412 BOLT, FLANGED, 12X83BOLT, FLANGED, 12X83
-
92150K9215-01711 BOLT, FLANGED, 10X40BOLT, FLANGED, 10X40
-
92151K9215-11413 BOLT, FLANGED, 10X45BOLT, FLANGED, 10X45
-
92152K9215-21139 COLLARCOLLAR
