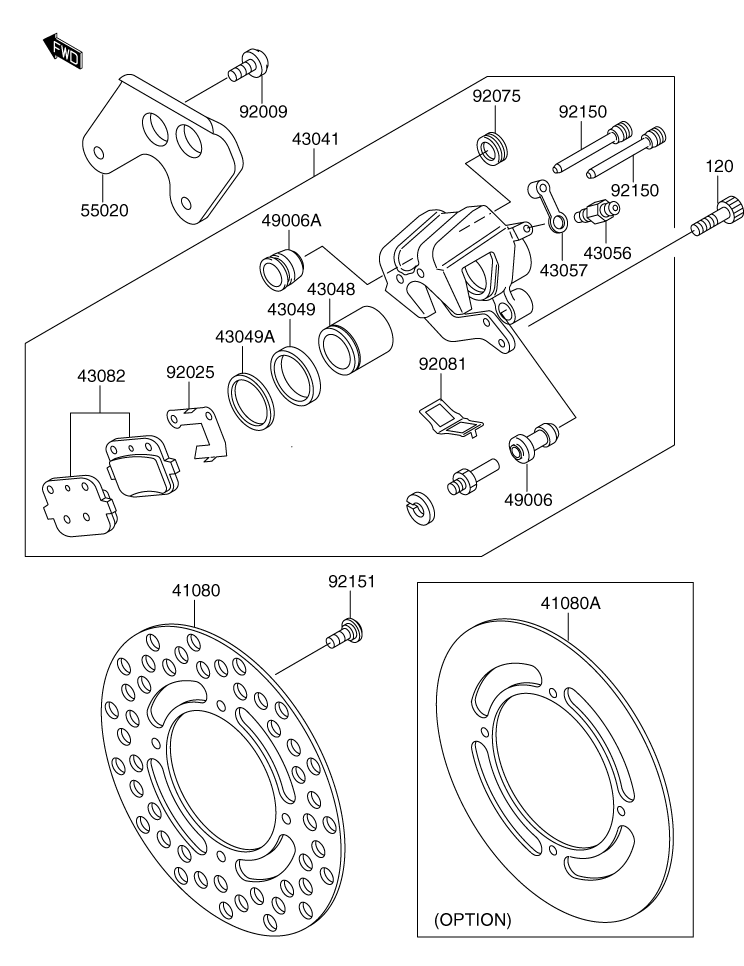

BRAKE - REAR CALIPER ASSY. для Suzuki RM100K3 - 2003 года выпуска
-
№АртикулНазвание
-
41080K4108-01492 DISC (REAR)DISC (REAR)
-
41080K4108-01493 DISC, (REAR) (OPT)DISC, (REAR) (OPT)
-
43041K4304-11815 CALIPER, ASSY., (REAR)CALIPER, ASSY., (REAR)
-
43048K4304-81064 PISTON, CALIPERPISTON, CALIPER
-
43049K4304-91060 PACKING, PISTON SEALPACKING, PISTON SEAL
-
43049K4304-91061 PACKING, PISTON SEALPACKING, PISTON SEAL
-
43056K4305-61056 BREATHER, BRAKEBREATHER, BRAKE
-
43057K4305-71001 CAP, BREATHERCAP, BREATHER
-
43082K4308-21205 PAD, ASSY., BRAKEPAD, ASSY., BRAKE
-
49006K4900-61088 BOOT, CALIPERBOOT, CALIPER
-
49006K4900-61089 BOOT, CALIPERBOOT, CALIPER
-
55020KK550-20124-7RZ GUARD, CALIPER (WHITE)GUARD, CALIPER (WHITE)
-
92009K9200-91286 SCREW, 6X10 (WHITE)SCREW, 6X10 (WHITE)
-
92025K9202-51817 SHIM, PADSHIM, PAD
-
92075K9207-51414 DAMPERDAMPER
-
92081K9208-11502 SPRING, PADSPRING, PAD
-
92150K9215-01144 BOLTBOLT
-
92151K9215-11799 BOLT, DISC PLATE, 6MMBOLT, DISC PLATE, 6MM
-
120KK120-P0816 BOLT, SOCKETBOLT, SOCKET
