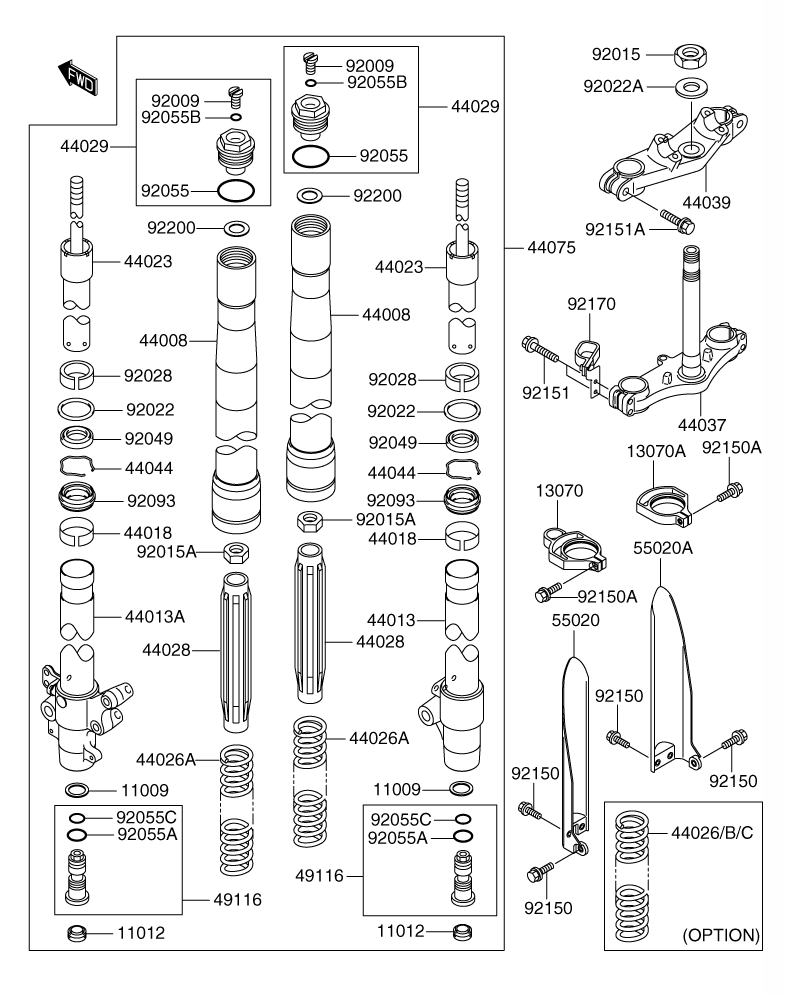

SUSPENSION - FRONT FORK для Suzuki RM100K3 - 2003 года выпуска
-
№АртикулНазвание
-
11009K1100-91592 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
11012K1101-21692 CAPCAP
-
13070KK130-70131-0RZ GUIDE, PROTECTOR, (LEFT/WHITE)GUIDE, PROTECTOR, (LEFT/WHITE)
-
13070KK130-70131-1RZ GUIDE, PROTECTOR, (RIGHT/WHITE)GUIDE, PROTECTOR, (RIGHT/WHITE)
-
44008KK440-08104-1JS PIPE, FORK OUTER, BRONZEPIPE, FORK OUTER, BRONZE
-
44013K4401-31442 PIPE, FORK INNER, (RIGHT)PIPE, FORK INNER, (RIGHT)
-
44013K4401-31484 PIPE, FORK INNER, (LEFT)PIPE, FORK INNER, (LEFT)
-
44018K4401-81058 PISTON, FORKPISTON, FORK
-
44023K4402-31119 CYLINDER, SET, FORKCYLINDER, SET, FORK
-
44026K4402-61633 SPRING, (FRONT) FORK, K=0.28 (OPT)SPRING, (FRONT) FORK, K=0.28 (OPT)
-
44026K4402-61634 SPRING, (FRONT) FORK, K=0.29SPRING, (FRONT) FORK, K=0.29
-
44026K4402-61635 SPRING, (FRONT) FORK, K=0.30 (OPT)SPRING, (FRONT) FORK, K=0.30 (OPT)
-
44026K4402-61671 SPRING, (FRONT) FORK, K=0.27 (OPT)SPRING, (FRONT) FORK, K=0.27 (OPT)
-
44028K4402-81090 GUIDE, FORK SPRINGGUIDE, FORK SPRING
-
44029K4402-91152 SEAT, FORK SPRINGSEAT, FORK SPRING
-
44037K4403-71360 HOLDER, FORK (UNDER)HOLDER, FORK (UNDER)
-
44039K4403-91294 HOLDER, FORK (UPPER)HOLDER, FORK (UPPER)
-
92033K9203-31100 RING, SNAP, FORK OIL SEALRING, SNAP, FORK OIL SEAL
-
44075KK440-75113-1JS DAMPER, SET, FORK, BRONZEDAMPER, SET, FORK, BRONZE
-
49116K4911-61153 VALVE, ASSY., FORKVALVE, ASSY., FORK
-
55020KK550-20161-1RZ GUARD, FORK, (LEFT/WHITE)GUARD, FORK, (LEFT/WHITE)
-
55020KK550-20161-2RZ GUARD, FORK, (RIGHT/WHITE)GUARD, FORK, (RIGHT/WHITE)
-
92009K9200-91568 SCREWSCREW
-
92015K9201-51653 NUT, STEERING STEM (22MM)NUT, STEERING STEM (22MM)
-
92015K9201-51839 NUTNUT
-
92022K9202-21275 WASHER, (FRONT) FORKWASHER, (FRONT) FORK
-
92022K9202-21873 WASHER, STEERING STEMWASHER, STEERING STEM
-
92028K9202-81656 BUSHINGBUSHING
-
92049K9204-91394 SEAL, OIL, FORK TUBE (OUTER)SEAL, OIL, FORK TUBE (OUTER)
-
92055K9205-51123 O-RINGO-RING
-
670KK670-B2018 O, RING (18MM)O, RING (18MM)
-
670KK670-B1503 O, RING (3MM)O, RING (3MM)
-
92055K9205-51502 O-RING, FORK VALVEO-RING, FORK VALVE
-
92093K9209-31426 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
92150K9215-01505 BOLT, FLANGED (6X14)BOLT, FLANGED (6X14)
-
92150K9215-01802 BOLT (5X16)BOLT (5X16)
-
92151K9215-11877 BOLT, FLANGED (8X40)BOLT, FLANGED (8X40)
-
92151K9215-11878 BOLT, FLANGED (8X35)BOLT, FLANGED (8X35)
-
92170K9217-01810 CLAMPCLAMP
-
92200K9220-01655 WASHERWASHER
