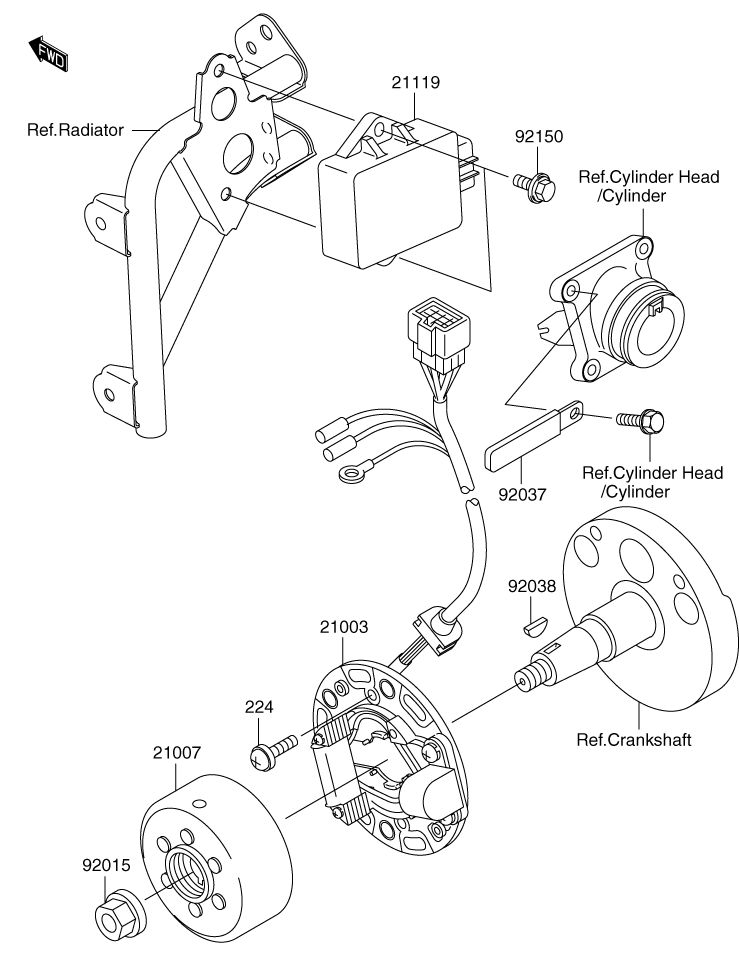

ELECTRICAL - GENERATOR для Suzuki RM100K3 - 2003 года выпуска
-
№АртикулНазвание
-
21003K2100-31366 STATORSTATOR
-
21007K2100-71239 ROTOR, MAGNETOROTOR, MAGNETO
-
21119K2111-91589 IGNITERIGNITER
-
92015KK920-15077 NUT, FLANGED (10MM)NUT, FLANGED (10MM)
-
92037K9203-71069 CLAMP, WIRING HARNESS (L=60)CLAMP, WIRING HARNESS (L=60)
-
92038KK920-38001 KEY, WOODRUFFKEY, WOODRUFF
-
92150K9215-01506 BOLT, FLANGED (6X16)BOLT, FLANGED (6X16)
-
92009K9200-91333 SCREW, 6X14SCREW, 6X14
