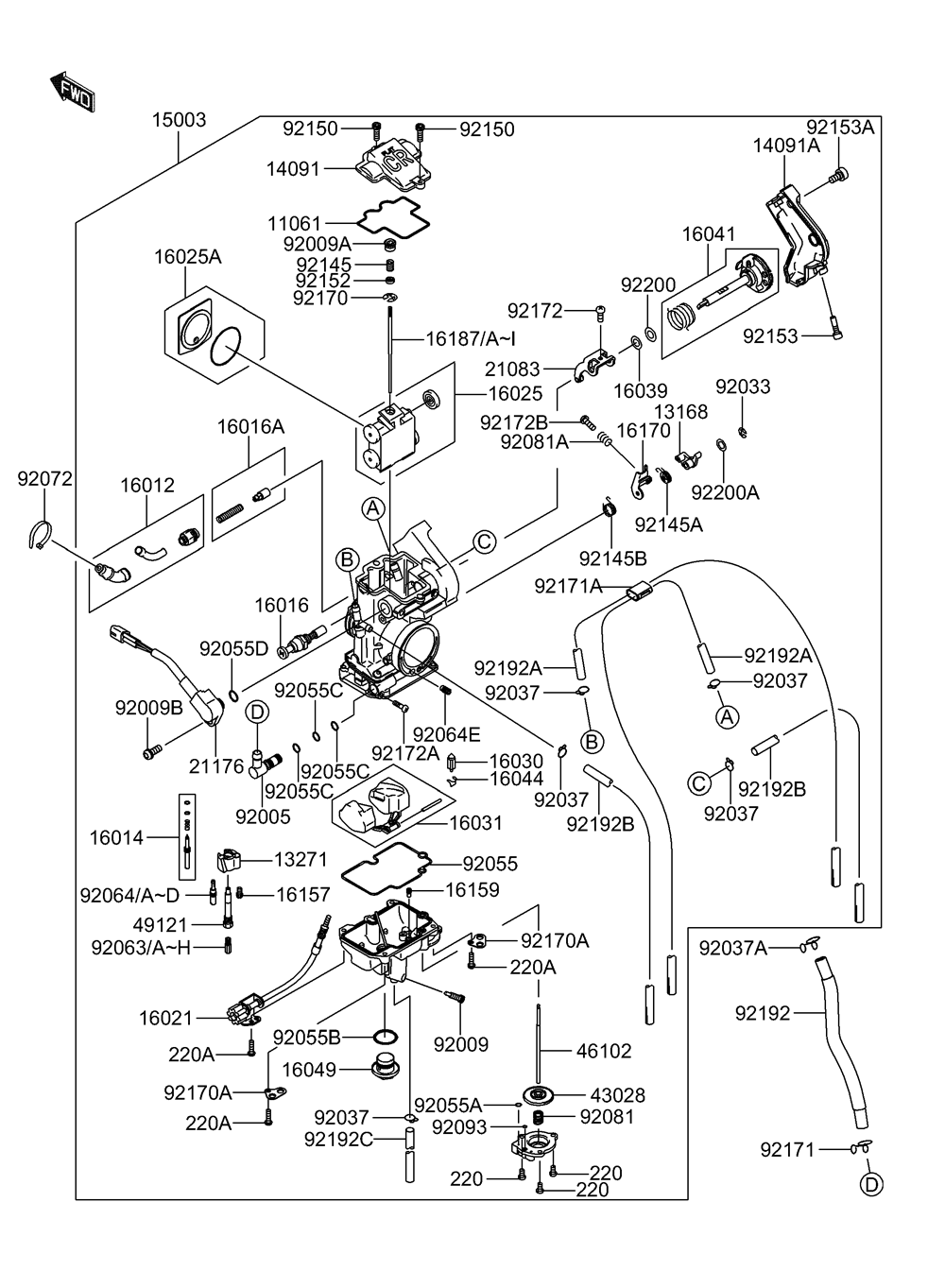

CARBURETOR ASSY. для Suzuki RM-Z250K6 - 2006 года выпуска
-
№АртикулНазвание
-
11061K1106-10077 GASKETGASKET
-
13168K1316-80051 LEVERLEVER
-
13271K1327-10241 PLATEPLATE
-
14091K1409-10208 COVER, TOPCOVER, TOP
-
14091AK1409-10209 COVERCOVER
-
15003K1500-30096 CARBURETOR-ASSY, FCR-37CARBURETOR-ASSY, FCR-37
-
16012K1601-20002 CAP-STARTER PLUNGERCAP-STARTER PLUNGER
-
16014K1601-40004 SCREW-PILOT AIRSCREW-PILOT AIR
-
16016K1601-60009 PLUNGERPLUNGER
-
16016AK1601-60012 PLUNGERPLUNGER
-
16021K1602-10005 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
16025K1602-50008 VALVE-THROTTLEVALVE-THROTTLE
-
16025AK1602-50009 VALVE-THROTTLEVALVE-THROTTLE
-
16030K1603-01057 VALVE-FLOATVALVE-FLOAT
-
16031K1603-11100 FLOATFLOAT
-
16039K1603-90230 WASHERWASHER
-
16041K1604-10002 SHAFT-CARBURETORSHAFT-CARBURETOR
-
16044KK160-44007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
16049K1604-91051 COVER-MAIN JETCOVER-MAIN JET
-
16157K1615-70001 JET-STARTER, #68JET-STARTER, #68
-
16159K1615-91057 JET-POWER, #60JET-POWER, #60
-
16170K1617-00003 LINK-ASSYLINK-ASSY
-
16187K1618-70068 NEEDLE-JET, OBEKQNEEDLE-JET, OBEKQ
-
16187AK1618-70069 NEEDLE-JET, OBEKRNEEDLE-JET, OBEKR
-
16187BK1618-70070 NEEDLE-JET, OBEKSNEEDLE-JET, OBEKS
-
16187CK1618-70071 NEEDLE-JET, OBEKTNEEDLE-JET, OBEKT
-
16187DK1618-70072 NEEDLE-JET, OBEKUNEEDLE-JET, OBEKU
-
16187EK1618-70092 NEEDLE-JET, OBELQNEEDLE-JET, OBELQ
-
16187FK1618-70093 NEEDLE-JET, OBELRNEEDLE-JET, OBELR
-
16187GK1618-70094 NEEDLE-JET, OBELSNEEDLE-JET, OBELS
-
16187HK1618-70095 NEEDLE-JET, OBELTNEEDLE-JET, OBELT
-
16187IK1618-70096 NEEDLE-JET, OBELUNEEDLE-JET, OBELU
-
21083K2108-30004 ARMARM
-
21176K2117-60016 SENSOR, THROTTLESENSOR, THROTTLE
-
43028K4302-80001 DIAPHRAGMDIAPHRAGM
-
46102K4610-20033 RODROD
-
49121K4912-10001 NOZZLE-MAINNOZZLE-MAIN
-
92005K9200-50016 FITTINGFITTING
-
92009K9200-91551 SCREW, DRAIN, 6X0.75SCREW, DRAIN, 6X0.75
-
92009AK9200-91876 SCREWSCREW
-
92009BK9200-91981 SCREW, THROTTLE SENSORSCREW, THROTTLE SENSOR
