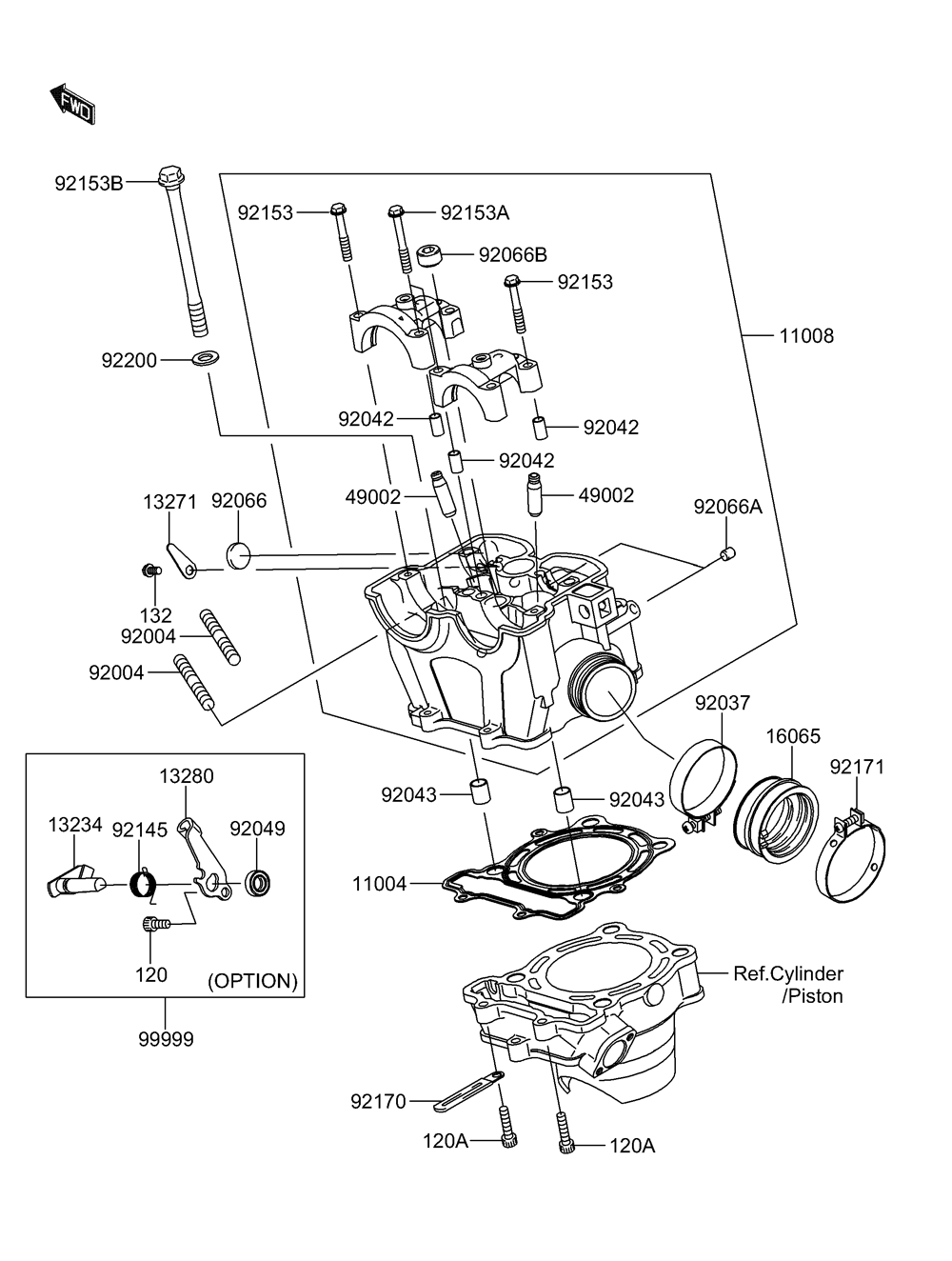

CYLINDER HEAD для Suzuki RM-Z250K6 - 2006 года выпуска
-
№АртикулНазвание
-
11004K1100-40003 GASKET-HEADGASKET-HEAD
-
11008K1100-80080 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
13234K1323-40009 SHAFT-COMP, DECOMPSHAFT-COMP, DECOMP
-
13271K1327-10675 PLATEPLATE
-
13280K1328-00038 HOLDER, DECOMPHOLDER, DECOMP
-
16065K1606-50012 HOLDER-CARBURETORHOLDER-CARBURETOR
-
49002K4900-20003 GUIDE-VALVEGUIDE-VALVE
-
92004K9200-41249 STUD, 8X22STUD, 8X22
-
92037K9203-71523 CLAMPCLAMP
-
92042KK920-42007 PIN, DOWEL,6.3X8X14PIN, DOWEL,6.3X8X14
-
92043K9204-34009 PIN, 10.1X12X14PIN, 10.1X12X14
-
92049K9204-91196 SEAL-OILSEAL-OIL
-
92066K9206-60024 PLUG, 4X18PLUG, 4X18
-
92066AK9206-61012 PLUG, OIL LINE,7.2X8PLUG, OIL LINE,7.2X8
-
92066BK9206-63777 PLUG, 10X16.6PLUG, 10X16.6
-
92145K9214-50048 SPRINGSPRING
-
92153K9215-30338 BOLT, 6X38BOLT, 6X38
-
92153AK9215-30339 BOLT, 6X45BOLT, 6X45
-
92153BK9215-30341 BOLT, 10X122BOLT, 10X122
-
92170K9217-01514 CLAMPCLAMP
-
92171K9217-10314 CLAMPCLAMP
-
92200K9220-01339 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
-
99999K9999-90023 KIT., MANUAL DECOMPKIT., MANUAL DECOMP
-
120KK120-P0612 BOLT-SOCKET, 6X12BOLT-SOCKET, 6X12
-
120AKK120-P0625 BOLT-SOCKET, 6X25BOLT-SOCKET, 6X25
-
132KK132-L0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
