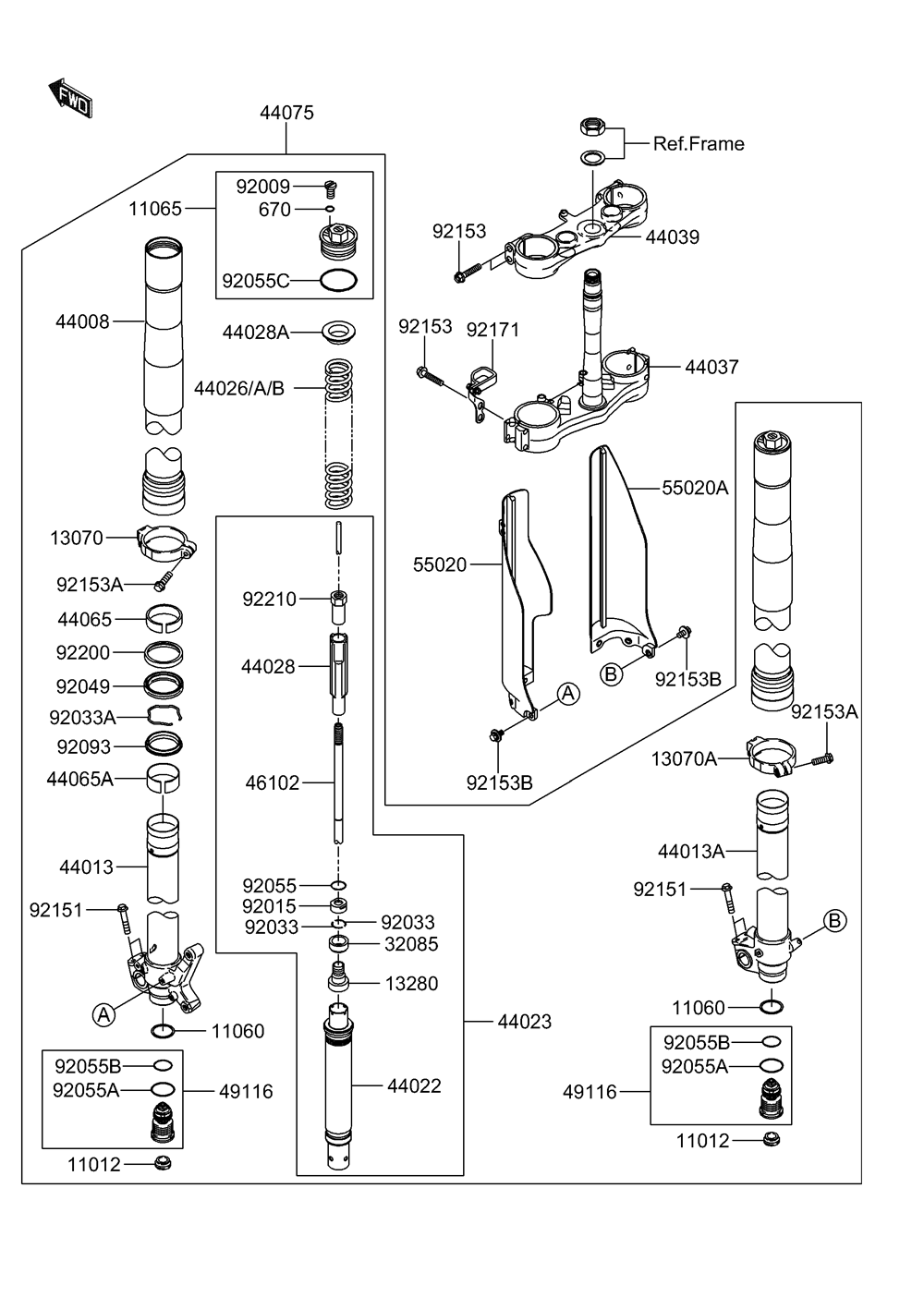

SUSPENSION - FRONT FORK для Suzuki RM-Z250K6 - 2006 года выпуска
-
№АртикулНазвание
-
11012K1101-21692 CAPCAP
-
11060K1106-01707 GASKETGASKET
-
11065K1106-51241 CAP, FORK,TOPCAP, FORK,TOP
-
13070K1307-00025 GUIDE, FORK, LEFT HANDGUIDE, FORK, LEFT HAND
-
13070AK1307-00027 GUIDE, FORK, RIGHT HANDGUIDE, FORK, RIGHT HAND
-
13280K1328-01127 HOLDERHOLDER
-
32085K3208-51323 STOPPERSTOPPER
-
44008KK440-08001-0JS PIPE-FORK OUTER, BRONZEPIPE-FORK OUTER, BRONZE
-
44013K4401-30030 PIPE-FORK INNER, LEFT HANDPIPE-FORK INNER, LEFT HAND
-
44013AK4401-30031 PIPE-FORK INNER, RIGHT HANDPIPE-FORK INNER, RIGHT HAND
-
44022K4402-20006 CYLINDER-FORKCYLINDER-FORK
-
44023K4402-30025 CYLINDER-SET-FORKCYLINDER-SET-FORK
-
44026K4402-60012 SPRING-FRONT FORK, K=4.3N/MMSPRING-FRONT FORK, K=4.3N/MM
-
44026AK4402-60058 SPRING-FRONT FORK, K=4.4N/MMSPRING-FRONT FORK, K=4.4N/MM
-
44026BK4402-60059 SPRING-FRONT FORK, K=4.5N/MMSPRING-FRONT FORK, K=4.5N/MM
-
44028K4402-80001 GUIDE-FORK SPRINGGUIDE-FORK SPRING
-
44028AK4402-81104 GUIDE-FORK SPRINGGUIDE-FORK SPRING
-
44037K4403-70017 HOLDER-FORK UNDERHOLDER-FORK UNDER
-
44039KK440-39001-7X3 HOLDER-FORK UPPER, SILVERHOLDER-FORK UPPER, SILVER
-
44065K4406-50006 BUSHING-FRONT FORKBUSHING-FRONT FORK
-
44065AK4406-51140 BUSHING-FRONT FORKBUSHING-FRONT FORK
-
44075KK440-75007-3JS DAMPER-SET-FORK, BRONZEDAMPER-SET-FORK, BRONZE
-
46102K4610-20064 ROD, PISTON,ASSYROD, PISTON,ASSY
-
49116K4911-60012 VALVE-ASSY, FORKVALVE-ASSY, FORK
-
55020KK550-20006-0RZ GUARD, FORK, LEFT HAND, WHITEGUARD, FORK, LEFT HAND, WHITE
-
55020AKK550-20014-2RZ GUARD, FORK, RIGHT HAND, WHITEGUARD, FORK, RIGHT HAND, WHITE
-
92009K9200-91884 SCREWSCREW
-
92015K9201-51805 NUTNUT
-
92033K9203-31271 RING-SNAPRING-SNAP
-
92033AK9203-31329 RING-SNAPRING-SNAP
-
92049K9204-90056 SEAL-OILSEAL-OIL
-
92055K9205-51442 RING-ORING-O
-
92055AK9205-51547 RING-O, FORK VALVERING-O, FORK VALVE
-
92055BK9205-51548 RING-O, FORK VALVERING-O, FORK VALVE
-
92055CK9205-51677 RING-ORING-O
-
92093K9209-31566 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
92151K9215-11877 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
92153K9215-30484 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
92153AK9215-30689 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
92153BK9215-30936 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
92171K9217-10414 CLAMP, HOSECLAMP, HOSE
