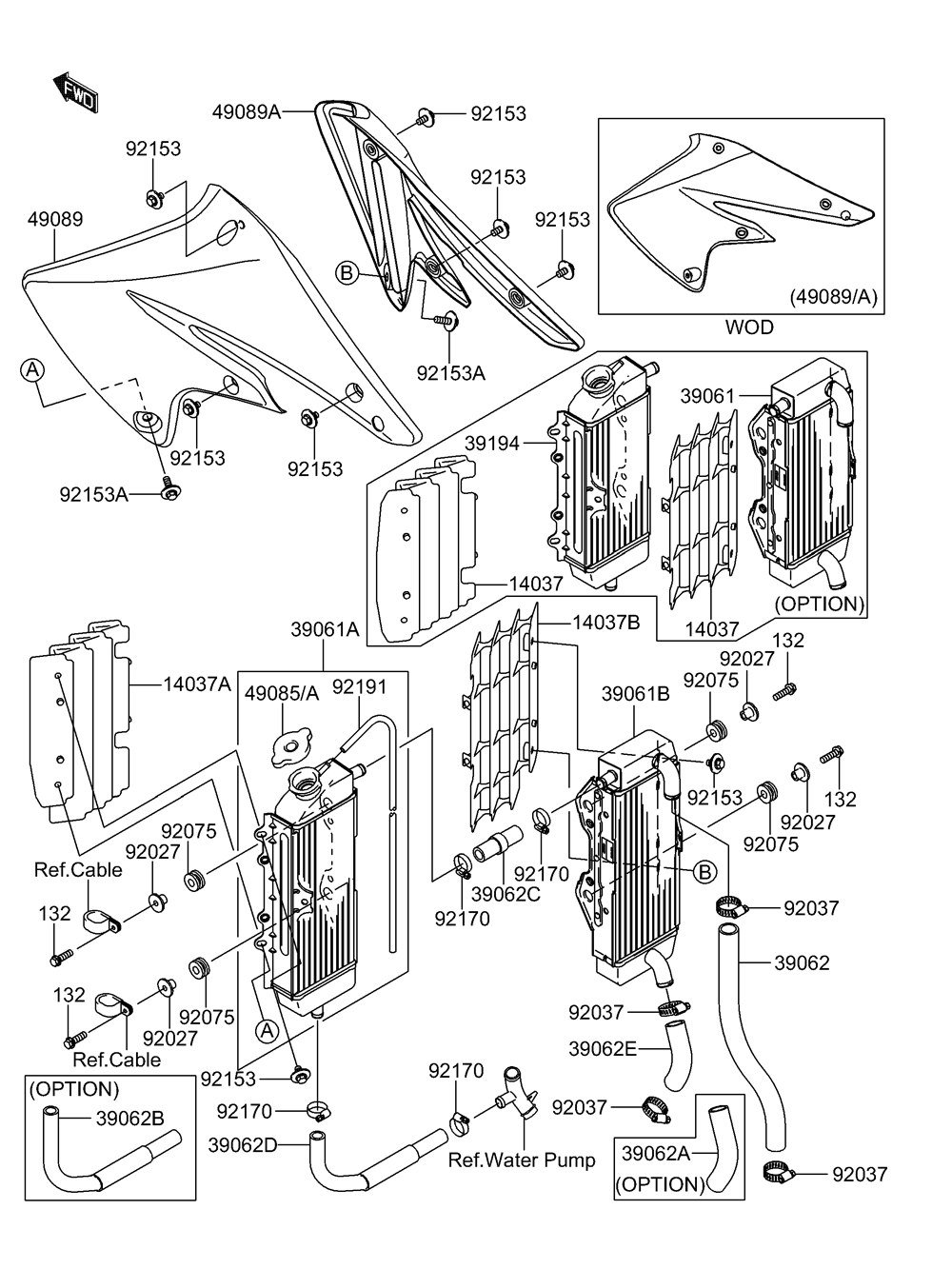

RADIATOR для Suzuki RM-Z250K6 - 2006 года выпуска
-
№АртикулНазвание
-
14037KK140-37001-2RZ SCREEN, WHITESCREEN, WHITE
-
14037AKK140-37002-9RZ SCREEN, LEFT HAND (WHITE)SCREEN, LEFT HAND (WHITE)
-
14037BKK140-37003-0RZ SCREEN, RIGHT HAND (WHITE)SCREEN, RIGHT HAND (WHITE)
-
39061K3906-10004 RADIATOR-ASSY, RIGHT HAND, CORE:220MMRADIATOR-ASSY, RIGHT HAND, CORE:220MM
-
39061AK3906-10044 RADIATOR-ASSY, LEFT HAND, CORE:260MMRADIATOR-ASSY, LEFT HAND, CORE:260MM
-
39061BK3906-10045 RADIATOR-ASSY, RIGHT HAND, CORE:260MMRADIATOR-ASSY, RIGHT HAND, CORE:260MM
-
39062K3906-20012 HOSE-COOLING, HEAD-RADIATOR RIGHT HANDHOSE-COOLING, HEAD-RADIATOR RIGHT HAND
-
39062AK3906-20040 HOSE-COOLING, CORE:220MMHOSE-COOLING, CORE:220MM
-
39062BK3906-20041 HOSE-COOLING, CORE:220MMHOSE-COOLING, CORE:220MM
-
39062CK3906-20044 HOSE-COOLING, RADIATOR L-R HIGHHOSE-COOLING, RADIATOR L-R HIGH
-
39062DK3906-20076 HOSE-COOLING, RADIATOR LEFT HAND-P/WHOSE-COOLING, RADIATOR LEFT HAND-P/W
-
39062EK3906-20082 HOSE-COOLING, RADIATOR RIGHT HAND-P/WHOSE-COOLING, RADIATOR RIGHT HAND-P/W
-
39194K3919-40006 RADIATOR-ASSY, LEFT HAND, CORE:220MMRADIATOR-ASSY, LEFT HAND, CORE:220MM
-
49085K4908-51070 CAP-ASSY-PRESSURE, P1.1CAP-ASSY-PRESSURE, P1.1
-
49085AK4908-51073 CAP-ASSY-PRESSURE, P1.6CAP-ASSY-PRESSURE, P1.6
-
49089K4908-90022-267 SHROUD-ENGINE, LEFT HAND (C.YELLOW)SHROUD-ENGINE, LEFT HAND (C.YELLOW)
-
49089AK4908-90023-267 SHROUD-ENGINE, RIGHT HAND (C.YELLOW)SHROUD-ENGINE, RIGHT HAND (C.YELLOW)
-
92027KK920-27194 COLLAR, L=11.1COLLAR, L=11.1
-
92037K9203-71589 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92075KK920-75209 DAMPERDAMPER
-
92153K9215-30503 BOLT, 6X12BOLT, 6X12
-
92153AK9215-30864 BOLT, 6X20BOLT, 6X20
-
92170K9217-01283 CLAMPCLAMP
-
92191K9219-11211 TUBE, 6X9X700TUBE, 6X9X700
-
132KK132-L0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
