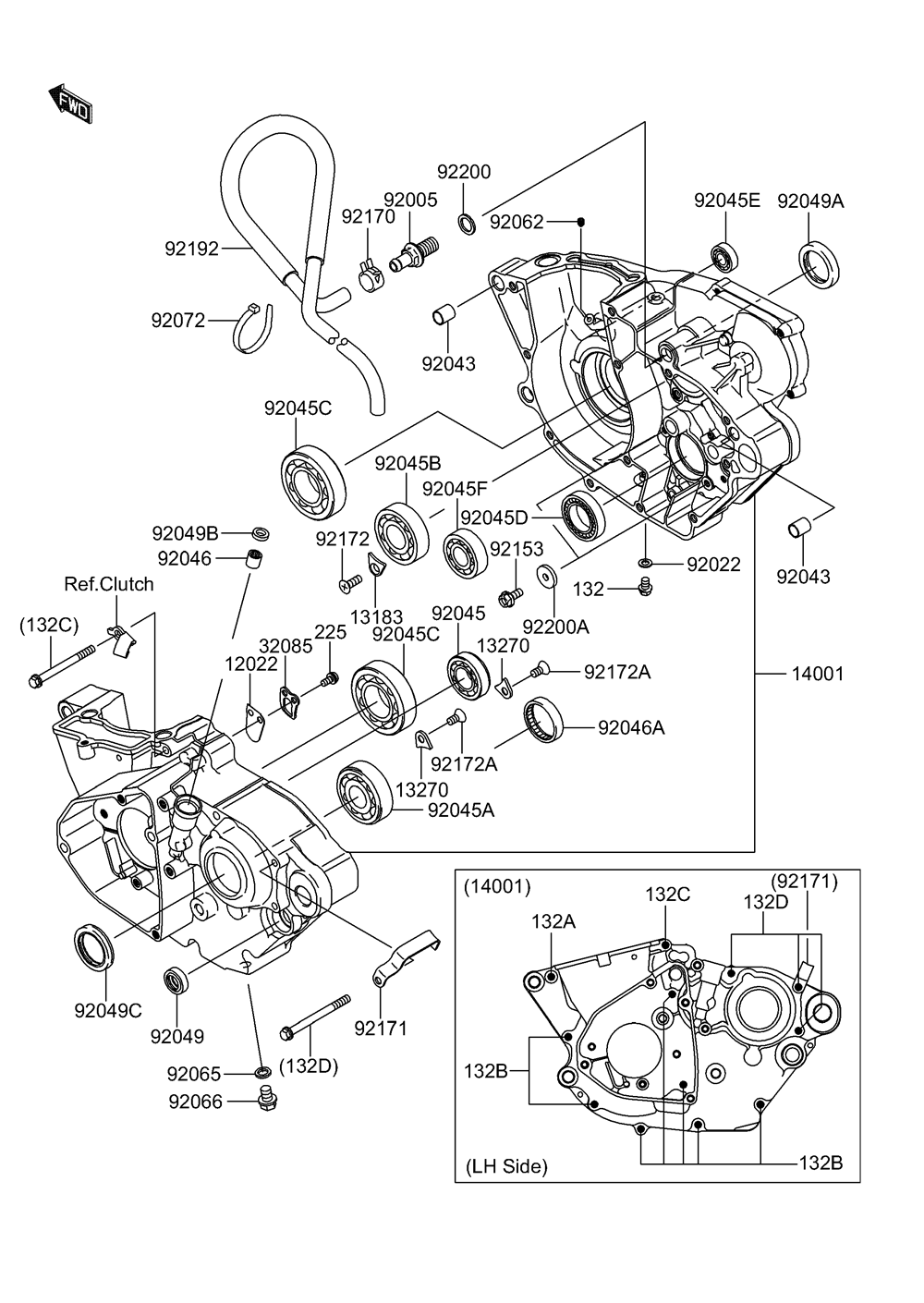

CRANKCASE для Suzuki RM-Z250K6 - 2006 года выпуска
-
№АртикулНазвание
-
12022K1202-20006 VALVE-REEDVALVE-REED
-
13183K1318-31182 PLATEPLATE
-
13270K1327-01638 PLATEPLATE
-
14001K1400-10066 SET-CRANKCASESET-CRANKCASE
-
32085K3208-50011 STOPPER, VALVE-REEDSTOPPER, VALVE-REED
-
92005K9200-50014 FITTING, BREATHERFITTING, BREATHER
-
92022KK920-22304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
92043K9204-34009 PIN, 10.1X12X14PIN, 10.1X12X14
-
92045K9204-50013 BEARING-BALL, 3TM-SX0391ZC3BEARING-BALL, 3TM-SX0391ZC3
-
92045AK9204-50020 BEARING-BALL, TM-SX04B13CMBEARING-BALL, TM-SX04B13CM
-
92045BK9204-50051 BEARING-BALLBEARING-BALL
-
92045CK9204-50052 BEARING-BALL, CRANKSHAFT MAINBEARING-BALL, CRANKSHAFT MAIN
-
92045DK9204-51058 BEARING-BALL, 6905ZBEARING-BALL, 6905Z
-
92045EK9204-51123 BEARING-BALL, #628BEARING-BALL, #628
-
92045FK9204-51291 BEARING-BALL, TMB203BEARING-BALL, TMB203
-
92046K9204-61010 BEARING-NEEDLE, HK1210BEARING-NEEDLE, HK1210
-
92046AK9204-61221 BEARING-NEEDLE, 7E-HKS33X38X8BEARING-NEEDLE, 7E-HKS33X38X8
-
92049K9204-90015 SEAL-OIL, SD2 14 22 6-1 NSSEAL-OIL, SD2 14 22 6-1 NS
-
92049AK9204-90030 SEAL-OIL, TC 30 40 7SEAL-OIL, TC 30 40 7
-
92049BK9204-91262 SEAL-OIL, AG0353-F0SEAL-OIL, AG0353-F0
-
92049CK9204-91478 SEAL-OILSEAL-OIL
-
92062K9206-21086 NOZZLE, 5X6,SILVERNOZZLE, 5X6,SILVER
-
92065KK920-65058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
92066K9206-61437 PLUG, DRAINPLUG, DRAIN
-
92072K9207-23874 BANDBAND
-
92153K9215-30878 BOLT, 6X14BOLT, 6X14
-
92170K9217-01938 CLAMPCLAMP
-
92171K9217-10579 CLAMPCLAMP
-
92172K9217-20087 SCREW, 6X14SCREW, 6X14
-
92172AK9217-20109 SCREW, 6X8SCREW, 6X8
-
92192K9219-20102 TUBE, BREATHERTUBE, BREATHER
-
92200K9220-00087 WASHER, 12.5X18X1.6WASHER, 12.5X18X1.6
-
92200AK9220-00120 WASHER, 6X20X3.2WASHER, 6X20X3.2
-
132KK132-G0608 BOLT-FLANGED-SMALL, 6X8BOLT-FLANGED-SMALL, 6X8
-
132AKK132-G0640 BOLT-FLANGED-SMALL, 6X40BOLT-FLANGED-SMALL, 6X40
-
132BKK132-G0660 BOLT-FLANGED-SMALL, 6X60BOLT-FLANGED-SMALL, 6X60
-
132CKK132-G0665 BOLT-FLANGED-SMALL, 6X65BOLT-FLANGED-SMALL, 6X65
-
132DKK132-G0670 BOLT-FLANGED-SMALL, 6X70BOLT-FLANGED-SMALL, 6X70
-
225KK225-D0510 SCREW-PAN-WSP-CROS, 5X10SCREW-PAN-WSP-CROS, 5X10
