FOOTREST для Suzuki RM-Z250K6 - 2006 года выпуска
-

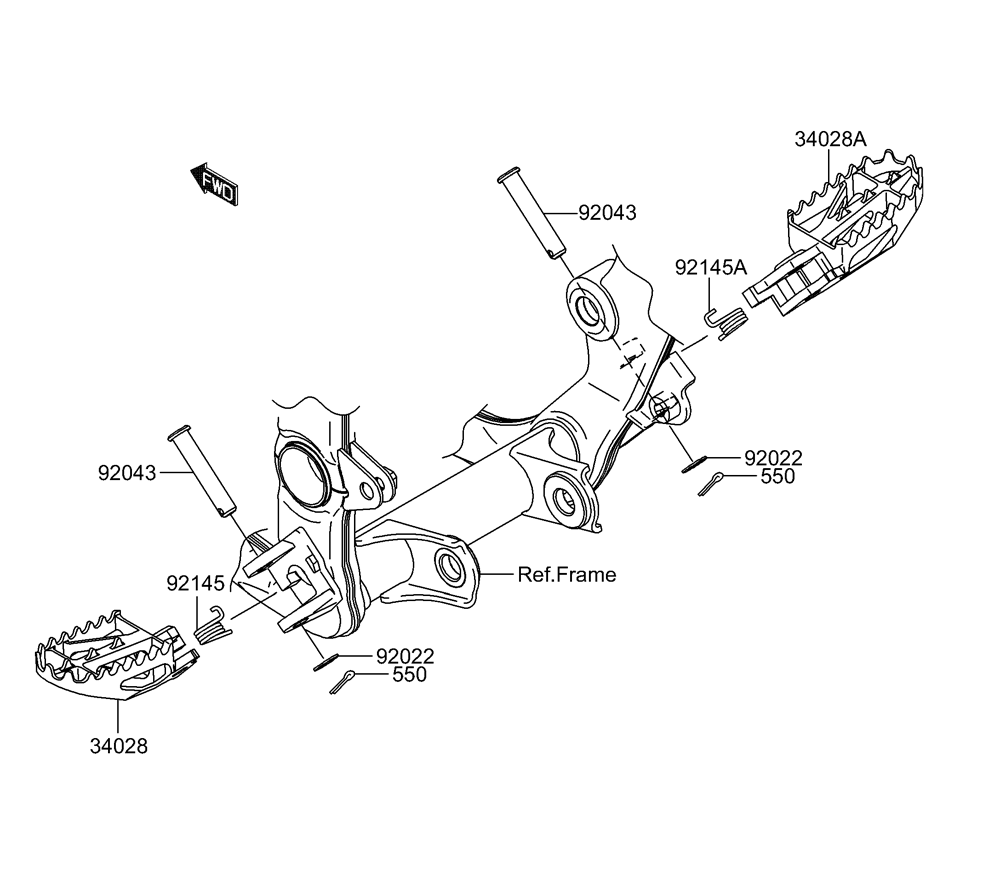

№АртикулНазвание
-
34028K3402-80014 STEP, LEFT HANDSTEP, LEFT HAND
-
34028AK3402-80015 STEP, RIGHT HANDSTEP, RIGHT HAND
-
92022K9202-21829 WASHER, 10.2X16X1WASHER, 10.2X16X1
-
92043K9204-30074 PIN, 10X42.5PIN, 10X42.5
-
92145K9214-50195 SPRING, STEP, LEFT HANDSPRING, STEP, LEFT HAND
-
92145AK9214-50196 SPRING, STEP, RIGHT HANDSPRING, STEP, RIGHT HAND
-
550KK550-S3020 PIN-COTTER, 3.0X20PIN-COTTER, 3.0X20
