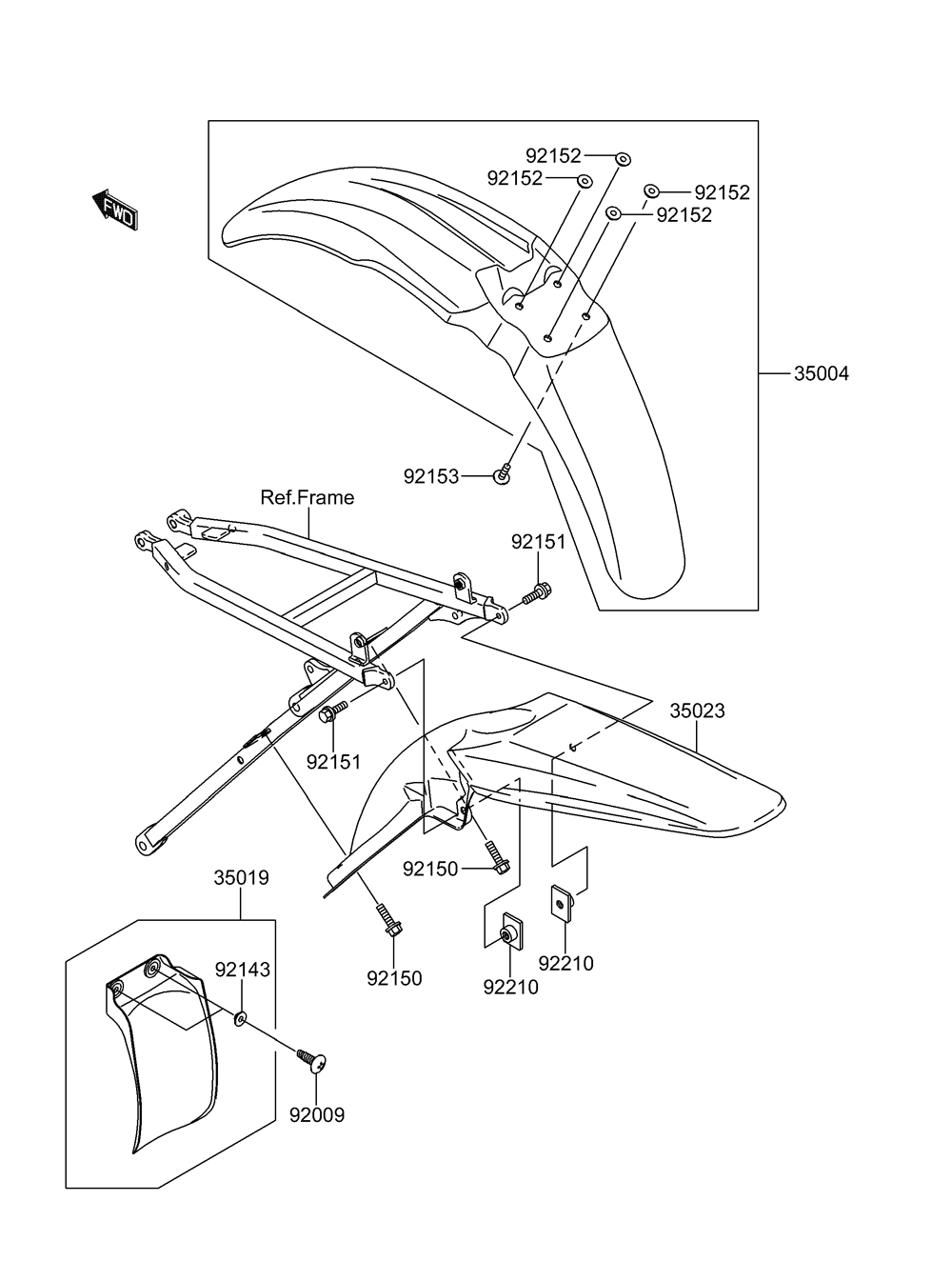

FENDER для Suzuki RM-Z250K6 - 2006 года выпуска
-
№АртикулНазвание
-
35004K3500-40050-267 FENDER-FRONT (C.YELLOW)FENDER-FRONT (C.YELLOW)
-
35019K3501-90005 FLAP, AIR FILTERFLAP, AIR FILTER
-
35023K3502-30020-267 FENDER-REAR (C.YELLOW)FENDER-REAR (C.YELLOW)
-
92009K9200-91993 SCREW, TAPPING, 5X20SCREW, TAPPING, 5X20
-
92143K9214-31087 COLLARCOLLAR
-
92150K9215-01481 BOLT, FLANGED, 6X22BOLT, FLANGED, 6X22
-
92151K9215-11423 BOLT, 6X14BOLT, 6X14
-
92152K9215-21422 COLLARCOLLAR
-
92153K9215-30502 BOLT, 6X20BOLT, 6X20
-
92210K9221-01352 NUT, PLATE, 6MMNUT, PLATE, 6MM
