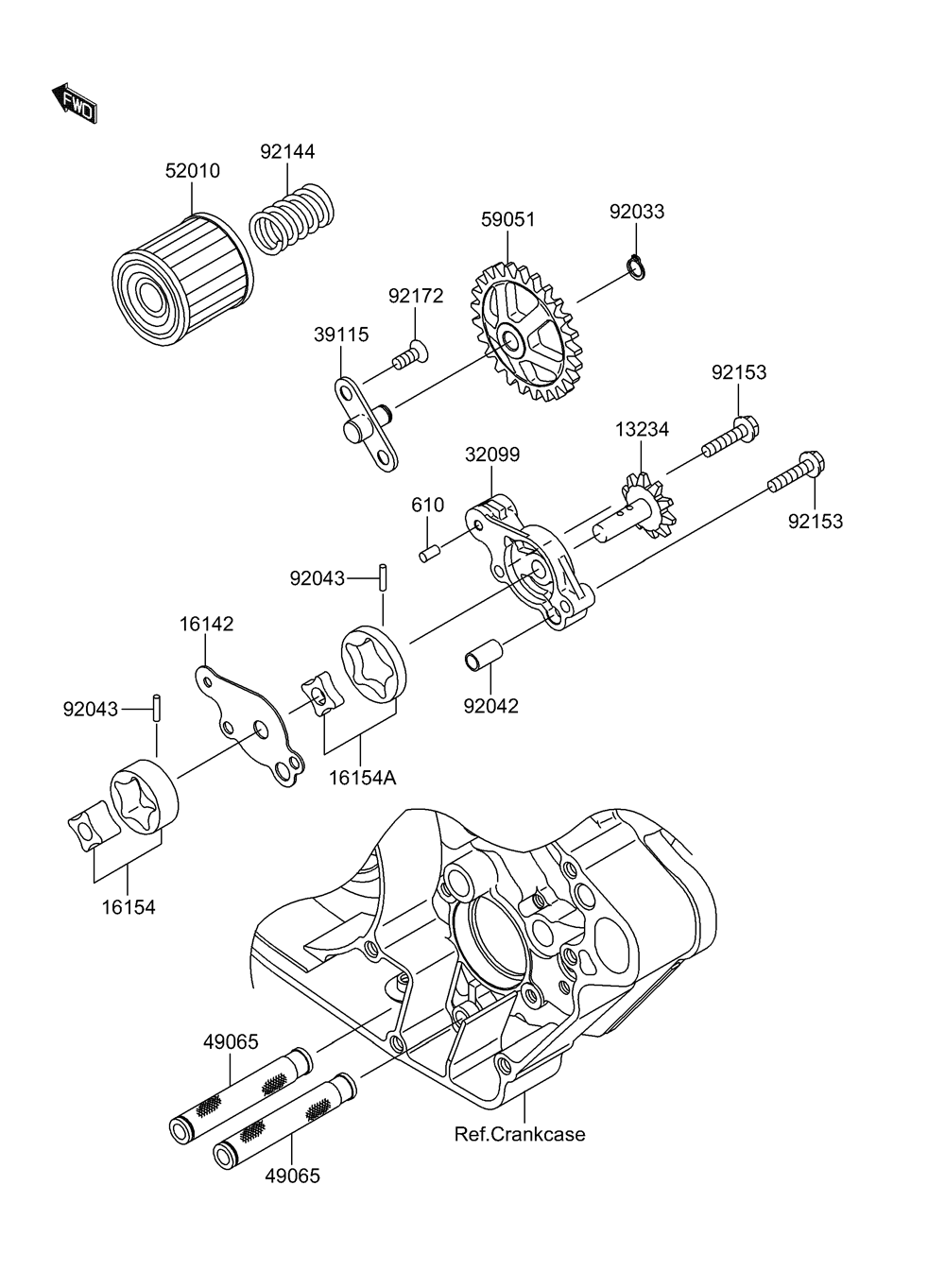

OIL PUMP для Suzuki RM-Z250K6 - 2006 года выпуска
-
№АртикулНазвание
-
13234K1323-40005 SHAFT-COMP, OIL PUMPSHAFT-COMP, OIL PUMP
-
16142K1614-20003 COVER-PUMPCOVER-PUMP
-
16154K1615-40035 ROTOR-PUMP, SCAVENGEROTOR-PUMP, SCAVENGE
-
16154AK1615-40036 ROTOR-PUMP, FEEDROTOR-PUMP, FEED
-
32099K3209-90018 CASE, OIL PUMPCASE, OIL PUMP
-
39115K3911-50007 SHAFT-IDLER, OIL PUMPSHAFT-IDLER, OIL PUMP
-
49065K4906-50009 FILTER-OILFILTER-OIL
-
52010K5201-00001 ELEMENT-OIL FILTERELEMENT-OIL FILTER
-
59051K5905-10009 GEAR-SPUR, PUMP IDLERGEAR-SPUR, PUMP IDLER
-
92033K9203-31039 RING-SNAP, 8MMRING-SNAP, 8MM
-
92042KK920-42007 PIN, DOWEL,6.3X8X14PIN, DOWEL,6.3X8X14
-
92043K9204-30018 PIN, 2.5X11.8PIN, 2.5X11.8
-
92144K9214-41761 SPRINGSPRING
-
92153K9215-30749 BOLT, 5X22BOLT, 5X22
-
92172K9217-20087 SCREW, 6X14SCREW, 6X14
-
610KK610-A0408 ROLLER, 4X8ROLLER, 4X8
