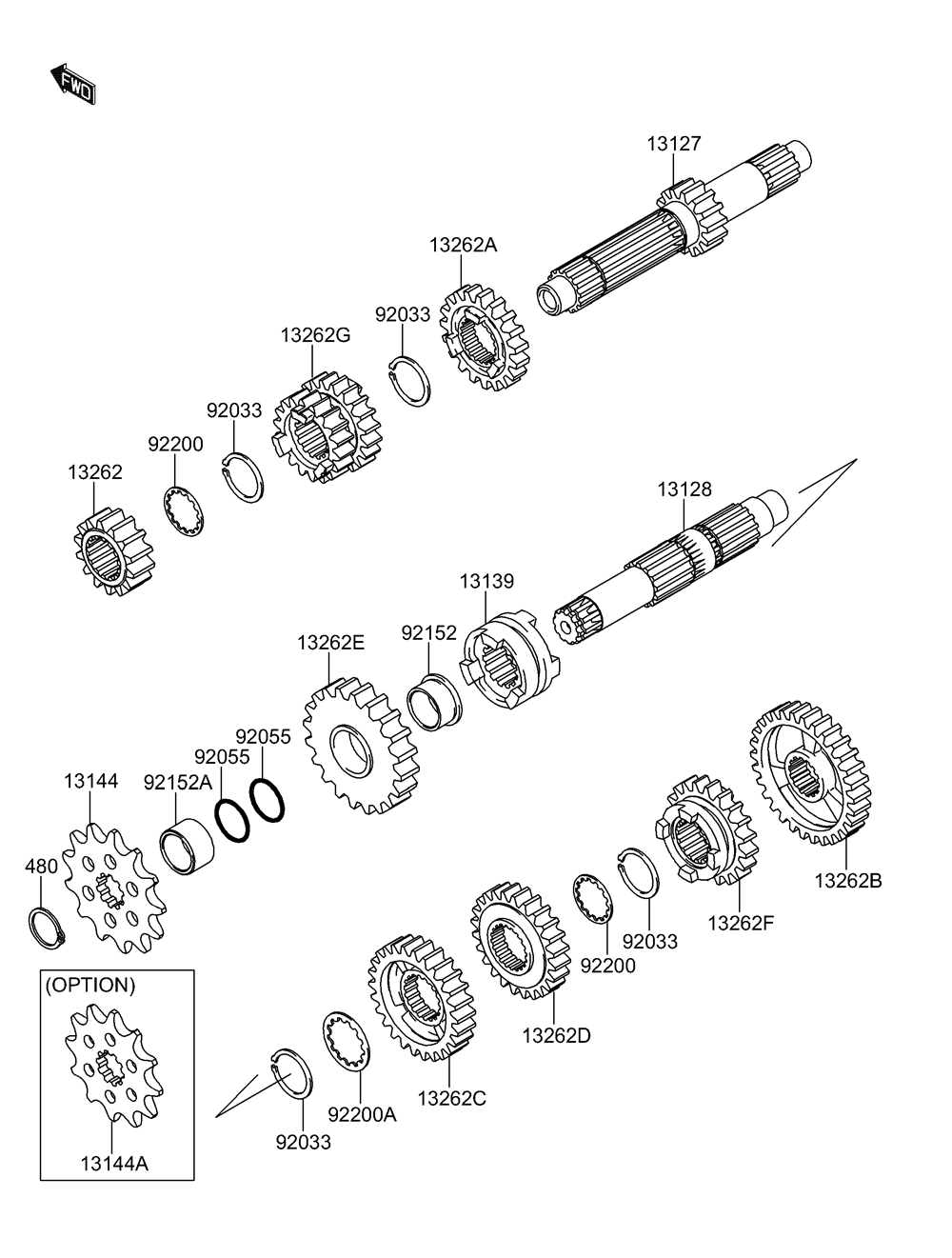

TRANSMISSION для Suzuki RM-Z250K6 - 2006 года выпуска
-
№АртикулНазвание
-
13127K1312-70004 SHAFT-TRANSMISSION INPUT, 14TSHAFT-TRANSMISSION INPUT, 14T
-
13128K1312-80009 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
13139K1313-90006 SHIFTER, 2ND-3RDSHIFTER, 2ND-3RD
-
13144K1314-40001 SPROCKET-OUTPUT, 13TSPROCKET-OUTPUT, 13T
-
13144AK1314-40006 SPROCKET-OUTPUT, 12TSPROCKET-OUTPUT, 12T
-
13262K1326-20018 GEAR, INPUT 2ND,14TGEAR, INPUT 2ND,14T
-
13262AK1326-20020 GEAR, INPUT 5TH,19TGEAR, INPUT 5TH,19T
-
13262BK1326-20022 GEAR, OUTPUT LOW, 30TGEAR, OUTPUT LOW, 30T
-
13262CK1326-20024 GEAR, OUTPUT 3RD, 26TGEAR, OUTPUT 3RD, 26T
-
13262DK1326-20115 GEAR, OUTPUT 4TH, 24TGEAR, OUTPUT 4TH, 24T
-
13262EK1326-20120 GEAR, OUTPUT 2ND, 25TGEAR, OUTPUT 2ND, 25T
-
13262FK1326-20184 GEAR, OUTPUT 5TH, 20TGEAR, OUTPUT 5TH, 20T
-
13262GK1326-20220 GEAR, INPUT 3RD AND 4TH, 18T AND 20TGEAR, INPUT 3RD AND 4TH, 18T AND 20T
-
92033K9203-31270 RING-SNAPRING-SNAP
-
92055KK920-55055 RING-O, 19.5X1.5RING-O, 19.5X1.5
-
92152K9215-20032 COLLAR, OUTPUT 2NDCOLLAR, OUTPUT 2ND
-
92152AK9215-20033 COLLAR, SPROCKETCOLLAR, SPROCKET
-
92200K9220-00028 WASHER, 24X28.6X1WASHER, 24X28.6X1
-
92200AK9220-00064 WASHER, 25X30.1X1WASHER, 25X30.1X1
-
480KK480-J2000 CIRCLIP-TYPE-C, 20MMCIRCLIP-TYPE-C, 20MM
