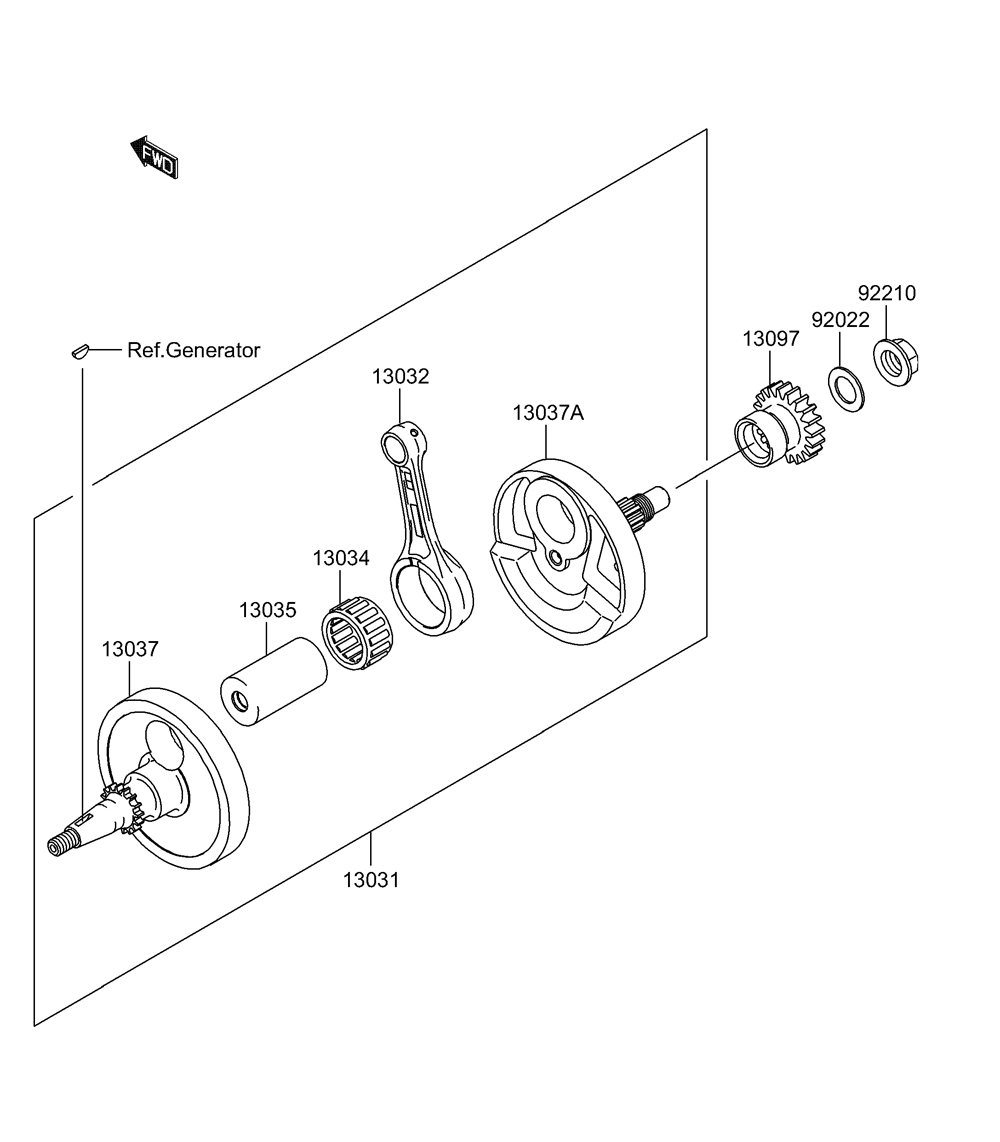

CRANKSHAFT W/ PISTON для Suzuki RM-Z250K6 - 2006 года выпуска
-
№АртикулНазвание
-
13031K1303-10051 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
13032K1303-20003 ROD-CONNECTING, REDROD-CONNECTING, RED
-
13034K1303-40007 BEARING-BIG END, B4BEARING-BIG END, B4
-
13035K1303-50001 PIN-CRANKPIN-CRANK
-
13037K1303-70064 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
13037AK1303-70065 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
13097K1309-70008 GEAR-PRIMARY SPUR, 20TGEAR-PRIMARY SPUR, 20T
-
92022KK920-22054 WASHER, 16.5X27X1.4WASHER, 16.5X27X1.4
-
92210K9221-00069 NUT, 16MMNUT, 16MM
