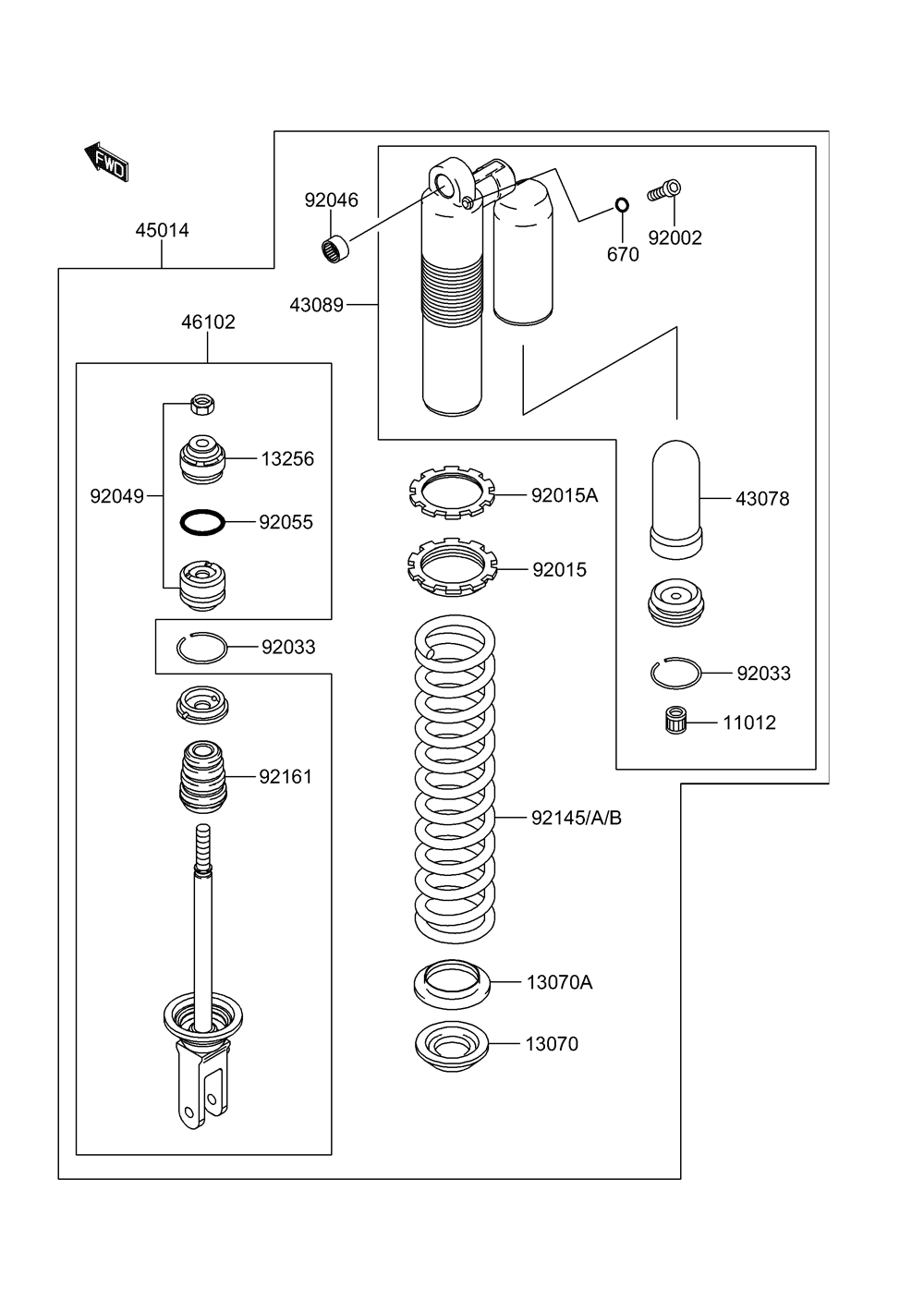

SUSPENSION - SHOCKS REAR для Suzuki RM-Z250K6 - 2006 года выпуска
-
№АртикулНазвание
-
11012K1101-21552 CAP, AIR VALVECAP, AIR VALVE
-
13070K1307-00029 GUIDE, SPRINGGUIDE, SPRING
-
13070AK1307-01362 GUIDE, SPRINGGUIDE, SPRING
-
13256K1325-60002 PISTON, SHOCKABSORBERPISTON, SHOCKABSORBER
-
43078K4307-81094 RESERVOIR, SHOCKABSORBERRESERVOIR, SHOCKABSORBER
-
43089K4308-90006 CYLINDER-SHOCKABSORBERCYLINDER-SHOCKABSORBER
-
45014KK450-14008-5CD SHOCKABSORBER (F.RED)SHOCKABSORBER (F.RED)
-
46102K4610-20059 ROD, SHOCKABSORBERROD, SHOCKABSORBER
-
92002K9200-21955 BOLT, DRAINBOLT, DRAIN
-
92015K9201-51703 NUT, SPRING ADJUSTNUT, SPRING ADJUST
-
92015AK9201-51704 NUT, SPRING ADJUST LOCKNUT, SPRING ADJUST LOCK
-
92033K9203-31209 RING-SNAPRING-SNAP
-
92046K9204-61301 BEARING-NEEDLE, 7E-HVS16X22X12BEARING-NEEDLE, 7E-HVS16X22X12
-
92049K9204-90057 SEAL-OILSEAL-OIL
-
92055K9205-51346 RING-O, RODRING-O, ROD
-
92145KK921-45001-4CD SPRING, SHOCKABSORBER, K=4.9 REDSPRING, SHOCKABSORBER, K=4.9 RED
-
92145AKK921-45001-5CD SPRING, SHOCKABSORBER, K=5.1 REDSPRING, SHOCKABSORBER, K=5.1 RED
-
92145BKK921-45001-6CD SPRING, SHOCKABSORBER, K=5.3 REDSPRING, SHOCKABSORBER, K=5.3 RED
-
92161K9216-11172 DAMPER, SHOCKABSORBERDAMPER, SHOCKABSORBER
-
670KK670-B1504 O RING, 4MMO RING, 4MM
