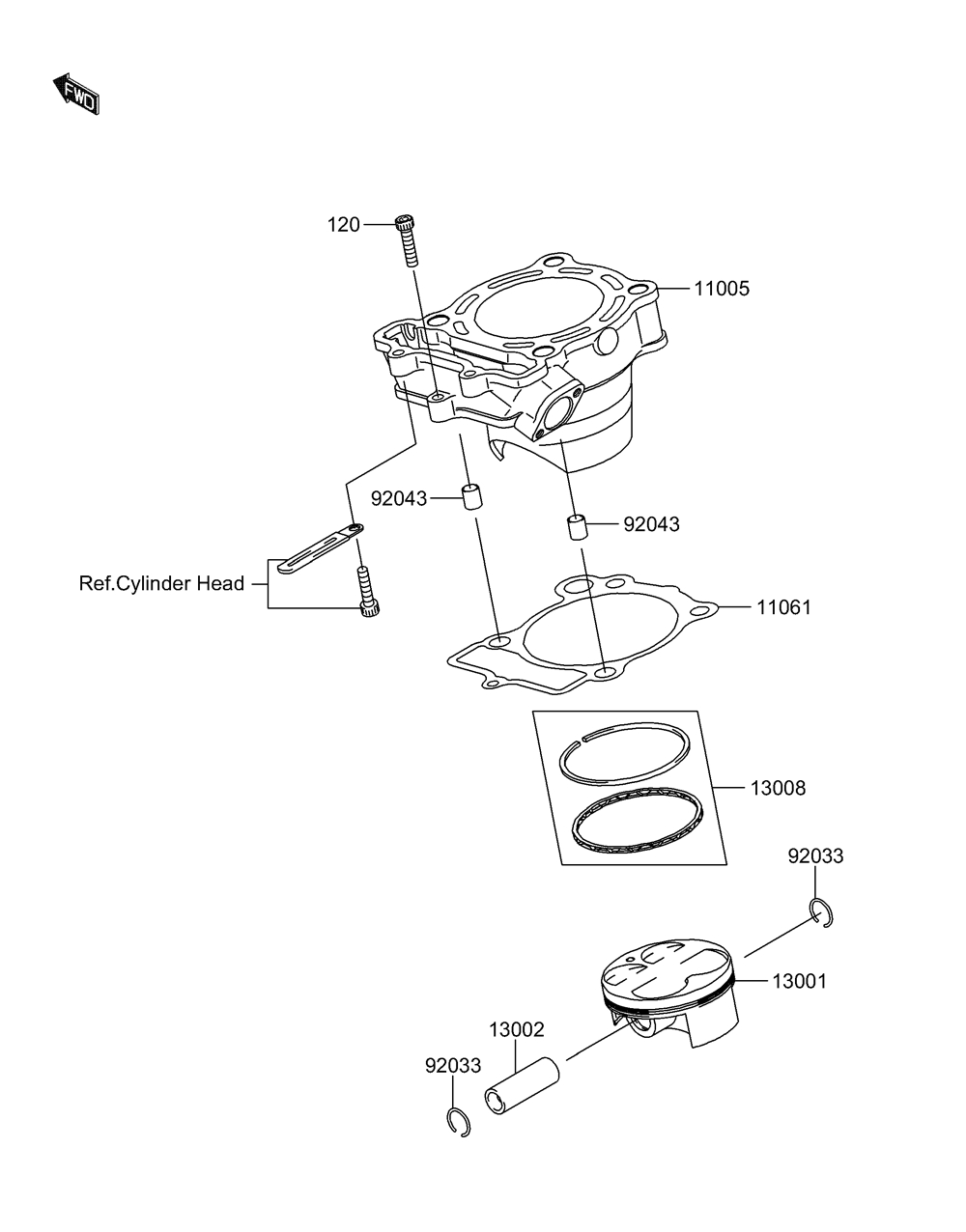

CYLINDER/PISTON для Suzuki RM-Z250K6 - 2006 года выпуска
-
№АртикулНазвание
-
11005K1100-50037 CYLINDER-ENGINECYLINDER-ENGINE
-
11061K1106-10025 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
13001K1300-10052 PISTON-ENGINEPISTON-ENGINE
-
13002K1300-20002 PIN-PISTONPIN-PISTON
-
13008K1300-80003 RING-SET-PISTONRING-SET-PISTON
-
92033K9203-31161 RING-SNAP, PISTON PINRING-SNAP, PISTON PIN
-
92043K9204-34009 PIN, 10.1X12X14PIN, 10.1X12X14
-
120KK120-P0625 BOLT-SOCKET, 6X25BOLT-SOCKET, 6X25
