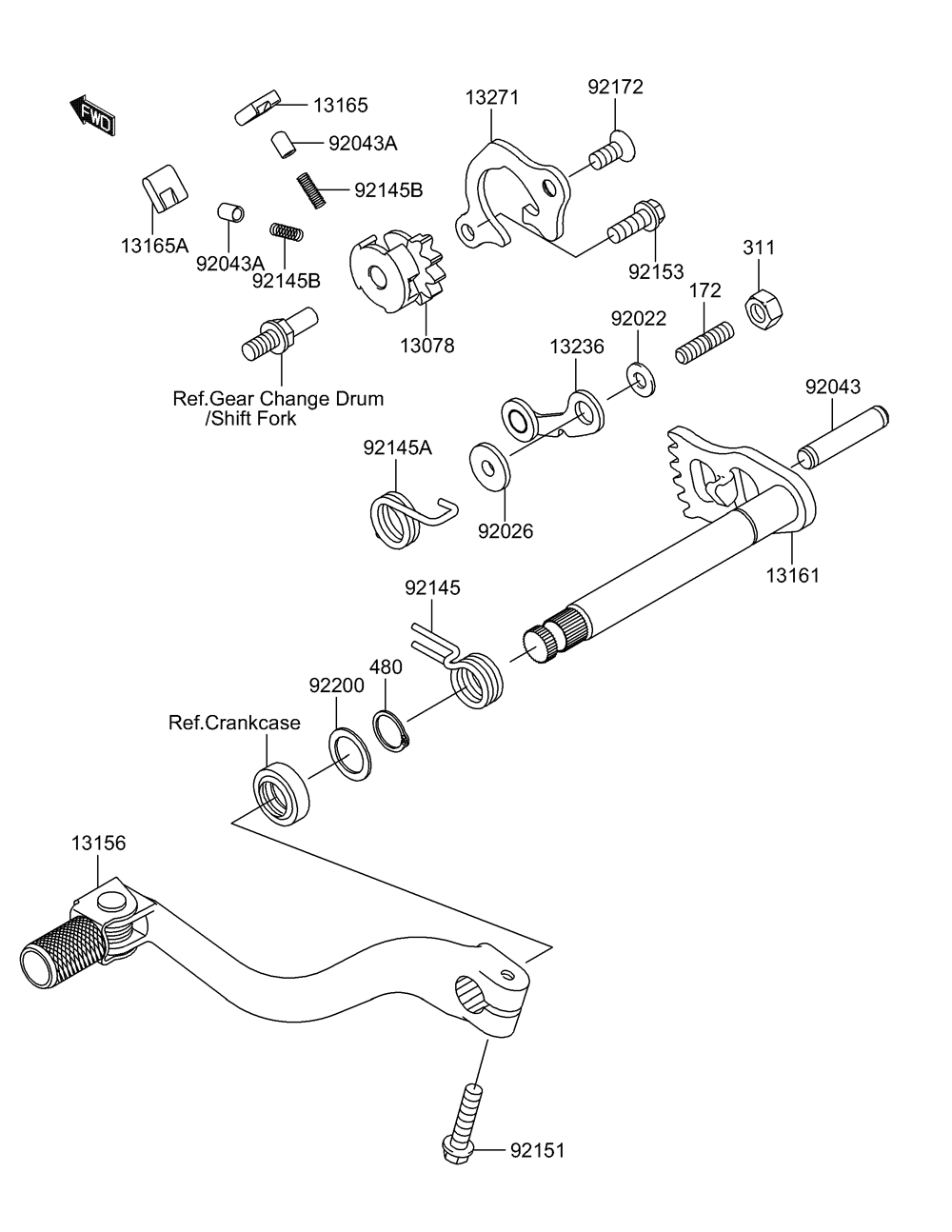

GEAR CHANGE MECHANISM для Suzuki RM-Z250K6 - 2006 года выпуска
-
№АртикулНазвание
-
13078K1307-80003 RATCHETRATCHET
-
13156K1315-60041 LEVER-CHANGE, PEDALLEVER-CHANGE, PEDAL
-
13161K1316-10016 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
13165K1316-50009 PAWLPAWL
-
13165AK1316-50010 PAWLPAWL
-
13236K1323-60041 LEVER-COMP, POSITIONLEVER-COMP, POSITION
-
13271K1327-10681 PLATE, PAWL GUIDEPLATE, PAWL GUIDE
-
92022K9202-21827 WASHER, 6X12.8X1.2WASHER, 6X12.8X1.2
-
92026K9202-61217 SPACERSPACER
-
92043K9204-30017 PIN, 8X39PIN, 8X39
-
92043AK9204-31676 PIN, PLUNGERPIN, PLUNGER
-
92145K9214-50052 SPRING, RETURNSPRING, RETURN
-
92145AK9214-50154 SPRING, POSITIONSPRING, POSITION
-
92145BK9214-51490 SPRINGSPRING
-
92151K9215-11930 BOLT, FLANGED-SMALL, 6X25BOLT, FLANGED-SMALL, 6X25
-
92153K9215-30825 BOLT, 6X16BOLT, 6X16
-
92172K9217-20110 SCREW, 6X14SCREW, 6X14
-
92200K9220-00029 WASHER, 14.2X20X1WASHER, 14.2X20X1
-
172KK172-G0612 BOLT-STUD, 6X12BOLT-STUD, 6X12
-
311KK311-G0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
480KK480-J1400 CIRCLIP-TYPE-C, 14MMCIRCLIP-TYPE-C, 14MM
