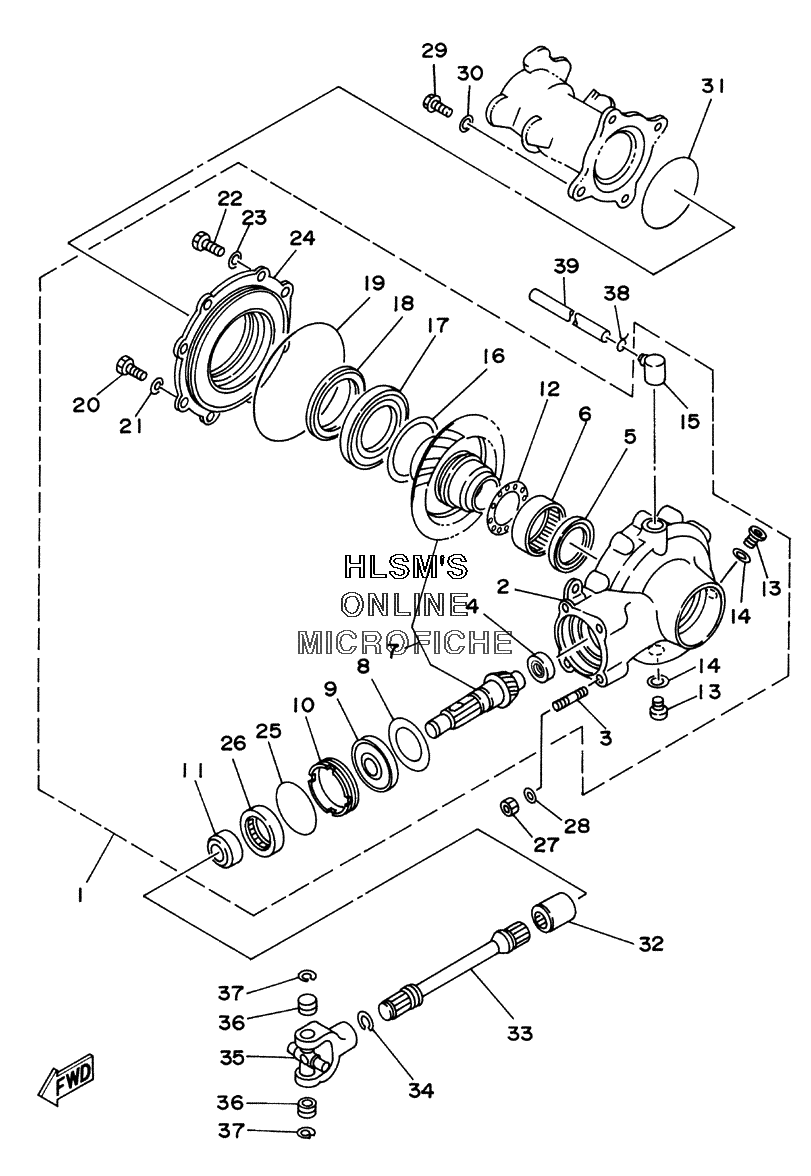

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
14BD-46101-10-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
22VY-46151-01-00 ...HOUSING, DRIVE SHAFT...HOUSING, DRIVE SHAFT
-
390116-08360-00 ...BOLT, STUD...BOLT, STUD
-
424W-46102-00-00 ...BEARING ASSY...BEARING ASSY
-
593101-52116-00 ...OIL SEAL...OIL SEAL
-
693317-85569-00 ...BEARING...BEARING
-
74BD-Y4612-10-00 ...RING GEAR SET...RING GEAR SET
-
81J7-17537-Y0-30 ...SHIM, THRUST (0.30T) (UR)...SHIM, THRUST (0.30T) (UR)
-
81J7-17537-Y0-40 ...SHIM, THRUST (0.40T) (UR)...SHIM, THRUST (0.40T) (UR)
-
81J7-17537-Y0-50 ...SHIM, THRUST (0.50T) (UR)...SHIM, THRUST (0.50T) (UR)
-
993306-30527-00 ...BEARING...BEARING
-
1029U-46125-00-00 ...RETAINER, BEARING...RETAINER, BEARING
-
1190387-255H9-00 ...COLLAR...COLLAR
-
1224W-46118-00-12 ...WASHER, THRUST (1.2T) (UR)...WASHER, THRUST (1.2T) (UR)
-
1224W-46118-00-14 ...WASHER, THRUST (1.4T) (UR)...WASHER, THRUST (1.4T) (UR)
-
1224W-46118-00-16 ...WASHER, THRUST (1.6T) (UR)...WASHER, THRUST (1.6T) (UR)
-
1224W-46118-00-18 ...WASHER, THRUST (1.8T) (UR)...WASHER, THRUST (1.8T) (UR)
-
1224W-46118-00-20 ...WASHER, THRUST (2.0T) (UR)...WASHER, THRUST (2.0T) (UR)
-
1390340-14046-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
14214-11198-01-00 ...GASKET...GASKET
-
152H7-17591-01-00 ...BREATHER...BREATHER
-
1624W-46117-00-25 ...SHIM, RING GEAR (0.25T) (UR)...SHIM, RING GEAR (0.25T) (UR)
-
1624W-46117-00-30 ...SHIM, RING GEAR (0.30T) (UR)...SHIM, RING GEAR (0.30T) (UR)
-
1624W-46117-00-40 ...SHIM, RING GEAR (0.40T) (UR)...SHIM, RING GEAR (0.40T) (UR)
-
1624W-46117-00-50 ...SHIM, RING GEAR (0.50T) (UR)...SHIM, RING GEAR (0.50T) (UR)
-
1793316-01301-00 ...BEARING...BEARING
-
1893102-65386-00 ...OIL SEAL...OIL SEAL
-
1993211-44348-00 ...O-RING...O-RING
-
2097027-08025-00 ...BOLT...BOLT
-
2192907-08600-00 ...WASHER, PLATE...WASHER, PLATE
-
2297027-10025-00 ...BOLT...BOLT
-
2392907-10600-00 ...WASHER, PLATE...WASHER, PLATE
-
243GC-46152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
2593210-59531-00 ...O-RING...O-RING
-
2693101-38098-00 ...OIL SEAL...OIL SEAL
-
2790179-08491-00 NUT, SPECL SHAPENUT, SPECL SHAPE
-
2890201-086P8-00 WASHER, PLATEWASHER, PLATE
-
2995827-10025-00 BOLT, FLANGEBOLT, FLANGE
-
3090201-101J1-00 WASHER, PLATEWASHER, PLATE
-
3193210-85075-00 O-RINGO-RING
-
3229U-46123-00-00 COUPLING, GEARCOUPLING, GEAR
-
334BD-46172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3493410-22039-00 CIRCLIPCIRCLIP
-
354X7-46180-00-00 CROSS JOINT COMP.CROSS JOINT COMP.
-
3693311-21044-00 BEARINGBEARING
-
3793440-20088-00 CIRCLIPCIRCLIP
-
3890467-07029-00 CLIPCLIP
-
3990445-073E3-00 HOSEHOSE
