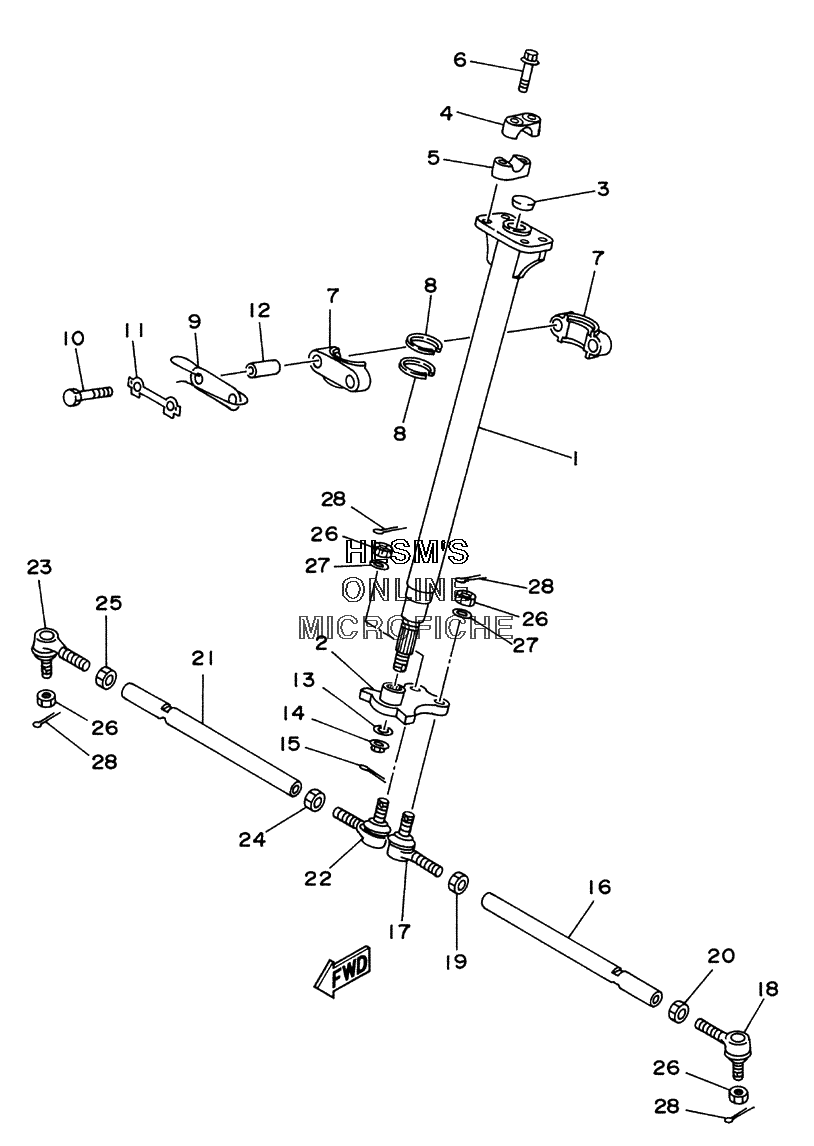

STEERING для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
14KD-23813-01-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
24KD-23816-00-00 ARM, PITMANARM, PITMAN
-
390336-28053-00 PLUG, TAPERPLUG, TAPER
-
48K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
58G5-23814-00-00 HOLDER,HANDLE UNDERHOLDER,HANDLE UNDER
-
695827-08050-00 BOLT, FLANGEBOLT, FLANGE
-
71UY-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
893112-31011-00 OIL SEALOIL SEAL
-
94BD-23868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
1097027-08060-00 BOLTBOLT
-
111UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1290387-090R0-00 COLLARCOLLAR
-
1390201-122H1-00 WASHER, PLATEWASHER, PLATE
-
1490185-12080-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590468-16191-00 CLIPCLIP
-
162HR-23831-01-00 ROD, TIEROD, TIE
-
1759V-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
1859V-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
1995307-10700-00 NUTNUT
-
2090170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
212HR-23831-01-00 ROD, TIEROD, TIE
-
2259V-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
2359V-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2495307-10700-00 NUTNUT
-
2590170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
2690171-10004-00 NUT, CASTLENUT, CASTLE
-
2792990-10600-00 WASHER, PLATEWASHER, PLATE
-
2891401-20020-00 PIN, COTTERPIN, COTTER
