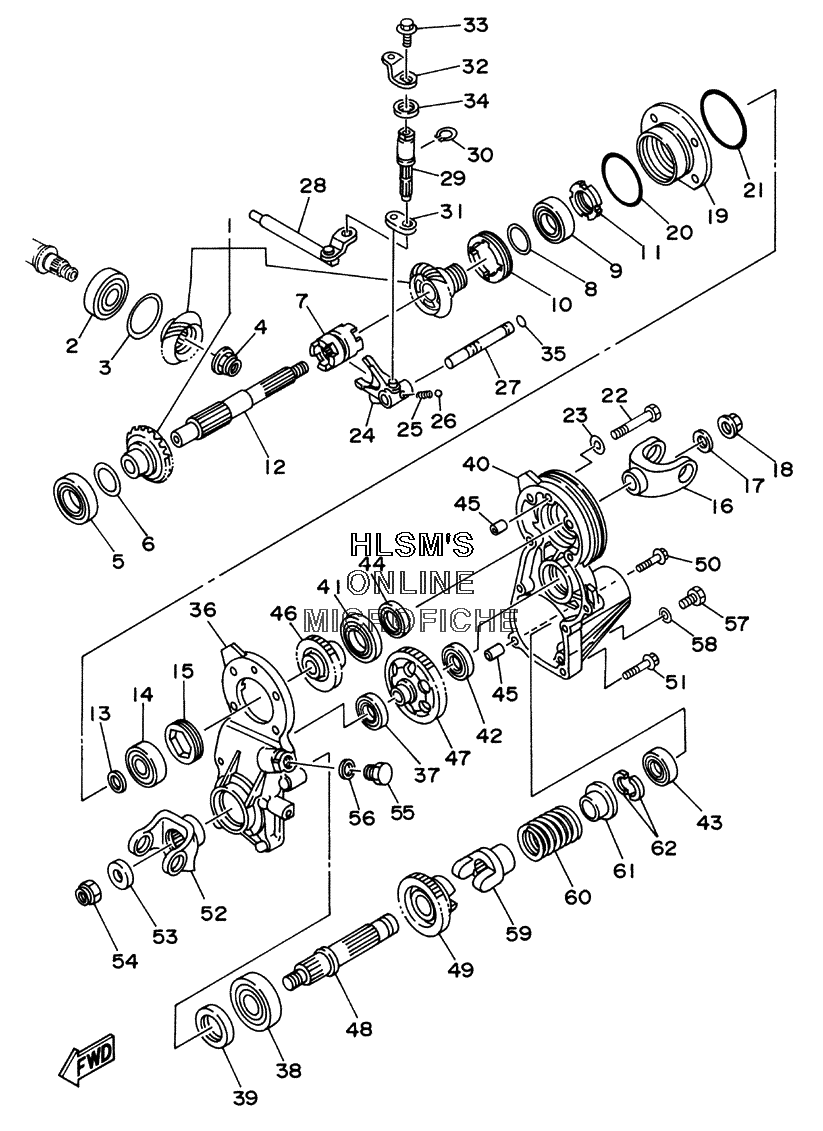

MIDDLEDRIVE GEAR для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
14KD-Y1754-00-00 MIDDLE GEAR COMP.MIDDLE GEAR COMP.
-
293306-30432-00 BEARING (B6304)BEARING (B6304)
-
324W-17537-10-00 SHIM, THRUST (0.13T) (UR)SHIM, THRUST (0.13T) (UR)
-
324W-17537-20-00 SHIM, THRUST (0.15T) (UR)SHIM, THRUST (0.15T) (UR)
-
324W-17537-30-00 SHIM, THRUST (0.2T) (UR)SHIM, THRUST (0.2T) (UR)
-
324W-17537-40-00 SHIM, THRUST (0.3T) (UR)SHIM, THRUST (0.3T) (UR)
-
324W-17537-50-00 SHIM, THRUST (0.4T) (UR)SHIM, THRUST (0.4T) (UR)
-
324W-17537-60-00 SHIM, THRUST (0.5T) (UR)SHIM, THRUST (0.5T) (UR)
-
490179-16651-00 NUTNUT
-
593306-00612-00 BEARINGBEARING
-
652G-17531-01-00 SHIM, PINION (0.1T) (UR)SHIM, PINION (0.1T) (UR)
-
652G-17531-01-00 SHIM, PINION (0.1T) (UR)SHIM, PINION (0.1T) (UR)
-
652G-17531-11-00 SHIM, PINION (0.15T) (UR)SHIM, PINION (0.15T) (UR)
-
652G-17531-21-00 SHIM, PINION (0.2T) (UR)SHIM, PINION (0.2T) (UR)
-
652G-17531-31-00 SHIM, PINION (0.3T) (UR)SHIM, PINION (0.3T) (UR)
-
652G-17531-41-00 SHIM, PINION (0.4T) (UR)SHIM, PINION (0.4T) (UR)
-
652G-17531-51-00 SHIM, PINION (0.5T) (UR)SHIM, PINION (0.5T) (UR)
-
752G-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
852G-17967-00-15 SHIM, (0.15T) (UR)SHIM, (0.15T) (UR)
-
852G-17967-00-20 SHIM, (0.2T) (UR)SHIM, (0.2T) (UR)
-
852G-17967-00-30 SHIM, (O.3T) (UR)SHIM, (O.3T) (UR)
-
852G-17967-00-40 SHIM, (0.4T) (UR)SHIM, (0.4T) (UR)
-
852G-17967-00-50 SHIM, (O.5T) (UR)SHIM, (O.5T) (UR)
-
993306-07801-00 BEARINGBEARING
-
1090179-55464-00 NUTNUT
-
1190179-28465-00 NUTNUT
-
124KD-17553-00-00 SHAFT, MIDDLE DRIVENSHAFT, MIDDLE DRIVEN
-
1352G-17968-00-10 SHIM, (1.0T) (UR)SHIM, (1.0T) (UR)
-
1352G-17968-00-11 SHIM, (1.1T) (UR)SHIM, (1.1T) (UR)
-
1352G-17968-00-12 SHIM, (1.2T) (UR)SHIM, (1.2T) (UR)
-
1352G-17968-00-13 SHIM, (1.3T) (UR)SHIM, (1.3T) (UR)
-
1352G-17968-00-14 SHIM, (1.4T) (UR)SHIM, (1.4T) (UR)
-
1352G-17968-00-15 SHIM, (1.5T) (UR)SHIM, (1.5T) (UR)
-
1352G-17968-00-16 SHIM, (1.6T) (UR)SHIM, (1.6T) (UR)
-
1352G-17968-00-17 SHIM, (1.7T) (UR)SHIM, (1.7T) (UR)
-
1352G-17968-00-18 SHIM, (1.8T) (UR)SHIM, (1.8T) (UR)
-
1352G-17968-00-19 SHIM, (1.9T) (UR)SHIM, (1.9T) (UR)
-
1493306-30305-00 BEARING (B6303)BEARING (B6303)
-
1590179-50467-00 NUTNUT
-
164BD-17556-00-00 YOKE, JOINTYOKE, JOINT
-
1790201-125F7-00 WASHER, PLATEWASHER, PLATE
-
1890179-12248-00 NUTNUT
-
194KD-17551-01-00 HOUSING, BEARINGHOUSING, BEARING
-
2093210-56589-00 O-RINGO-RING
-
2193210-65721-00 O-RINGO-RING
-
2297027-08055-00 BOLTBOLT
-
2392907-08600-00 WASHER, PLATEWASHER, PLATE
-
2452G-18514-02-00 FORK, SHIFT 4FORK, SHIFT 4
-
2590501-101A5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2693501-04004-00 BALLBALL
-
2752G-18534-00-00 BAR, SHIFT FORK GUIDEBAR, SHIFT FORK GUIDE
-
283GC-1812A-00-00 STOPPER SHAFT ASSYSTOPPER SHAFT ASSY
-
293GC-18197-00-00 SHAFTSHAFT
-
3099009-14400-00 CIRCLIPCIRCLIP
-
313GC-18451-00-00 LEVER, SHIFTLEVER, SHIFT
-
3252G-18198-00-00 LEVERLEVER
-
3390105-06680-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3493102-14209-00 OIL SEALOIL SEAL
-
3593210-09165-00 O-RINGO-RING
-
364KD-17541-01-00 CASE, TRANSFER 1CASE, TRANSFER 1
-
3793316-00404-00 BEARINGBEARING
-
3893306-30551-00 BEARINGBEARING
-
3993105-35027-00 OIL SEALOIL SEAL
-
404KD-17542-01-00 CASE, TRANSFER 2CASE, TRANSFER 2
-
4193316-00602-00 BEARINGBEARING
-
4293316-00404-00 BEARINGBEARING
-
4393306-00401-00 BEARING (B6004)BEARING (B6004)
-
4493101-30084-00 OIL SEALOIL SEAL
-
4599530-08016-00 PIN, DOWELPIN, DOWEL
-
464KD-17586-00-00 GEAR, TRANSFER DRIVE (23T)GEAR, TRANSFER DRIVE (23T)
-
474KD-17587-00-00 GEAR, IDLER (32T)GEAR, IDLER (32T)
-
4822U-17553-01-00 SHAFT, MIDDLE DRIVENSHAFT, MIDDLE DRIVEN
-
494KD-17588-00-00 GEAR, TRANSFER DRIDEN (26T)GEAR, TRANSFER DRIDEN (26T)
-
5095027-06035-00 BOLT, FLANGEBOLT, FLANGE
-
5195027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
522HR-17576-00-00 YOKE, JOINT 2YOKE, JOINT 2
-
5390201-14633-00 WASHER, PLATEWASHER, PLATE
-
5490185-14070-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5590340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
56214-11198-01-00 GASKETGASKET
-
5795027-08012-00 BOLT, FLANGEBOLT, FLANGE
-
5890201-08087-00 WASHER, PLATEWASHER, PLATE
-
5922U-17527-01-00 CAM, DRIVENCAM, DRIVEN
-
6090501-605E1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
6122U-17524-00-00 HOLDERHOLDER
-
623H5-17529-00-00 WASHER, THRUSTWASHER, THRUST
