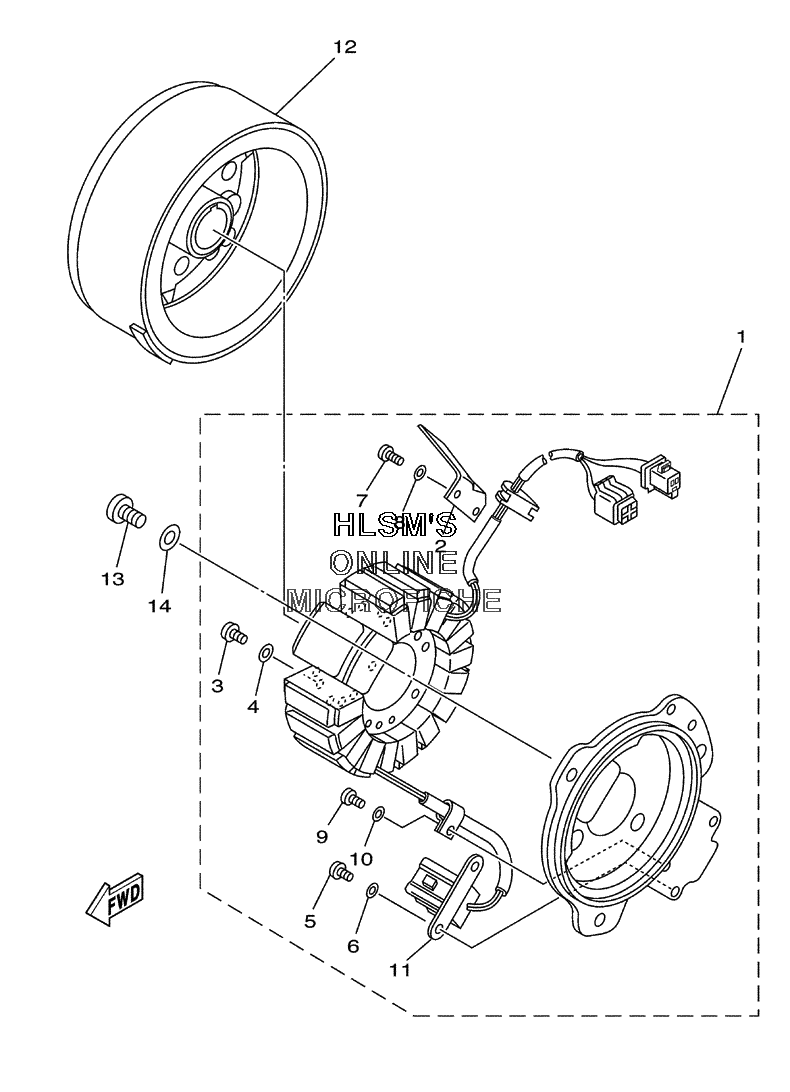

GENERATOR для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
14BD-85510-20-00 STATOR ASSYSTATOR ASSY
-
221V-85525-01-00 ...COVER...COVER
-
398501-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
492901-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
598501-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
692901-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
798501-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
892901-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
998501-04006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1092901-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
114BD-85580-00-00 ...COIL, PULSER...COIL, PULSER
-
124BD-85550-20-00 ROTOR ASSYROTOR ASSY
-
1398507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492907-06600-00 WASHER, PLATEWASHER, PLATE
