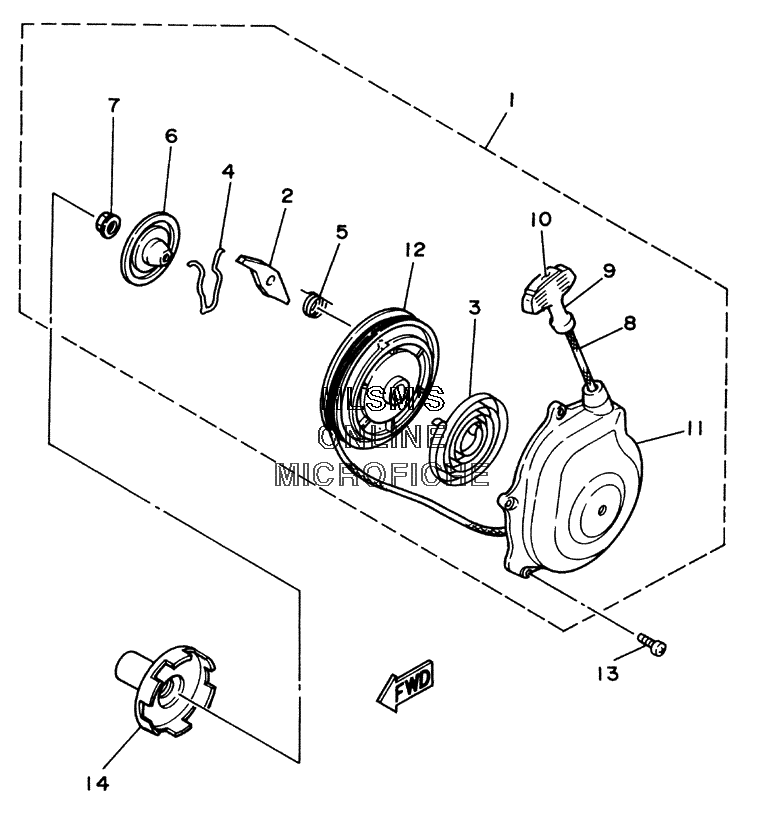

STARTER - RECOIL для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
124W-15710-00-00 STARTER ASSYSTARTER ASSY
-
221V-15741-00-00 ...PAWL, DRIVE...PAWL, DRIVE
-
321V-15713-00-00 ...SPRING, STARTER...SPRING, STARTER
-
421V-15715-00-00 ...SPRING, FRICTION...SPRING, FRICTION
-
521V-15767-00-00 ...SPRING...SPRING
-
621V-15716-00-00 ...PLATE, DRIVE...PLATE, DRIVE
-
795702-06100-00 ...NUT, FLANGE...NUT, FLANGE
-
821V-15751-00-00 ...WIRE, STARTER...WIRE, STARTER
-
93X3-15755-00-00 ...HANDLE, STARTER...HANDLE, STARTER
-
1021V-15779-00-00 ...COVER...COVER
-
1124W-15711-00-00 ...CASE, STARTER...CASE, STARTER
-
1224W-15714-00-00 ...DRUM, SHEAVE...DRUM, SHEAVE
-
1398507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1421V-15723-00-00 PULLEY, STARTERPULLEY, STARTER
