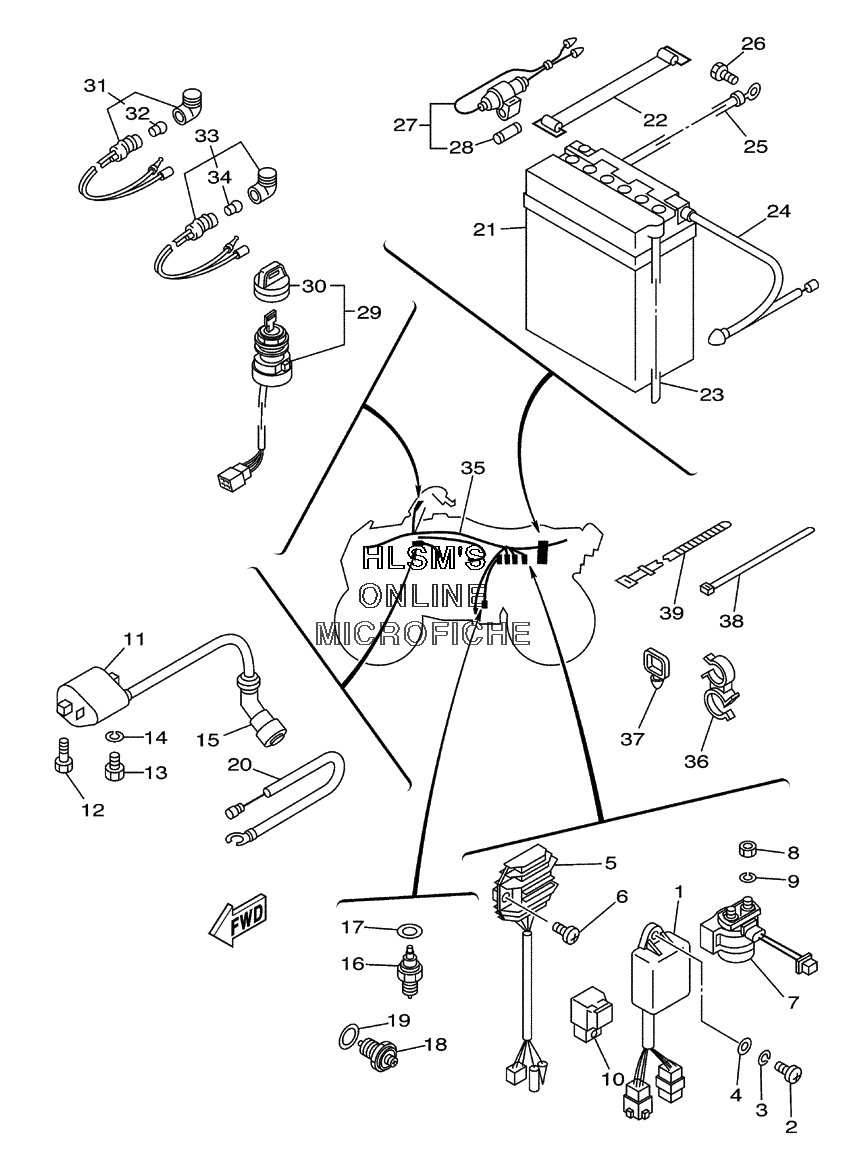

ELECTRICAL для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
14BD-85540-10-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
298507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
492907-06600-00 WASHER, PLATEWASHER, PLATE
-
54KB-81960-02-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
698907-06020-00 SCREW, BINDSCREW, BIND
-
74KD-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
895307-06700-00 NUTNUT
-
992907-06100-00 WASHER, SPRINGWASHER, SPRING
-
101RL-81950-92-00 RELAY ASSYRELAY ASSY
-
113JN-82310-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1290109-06723-00 BOLTBOLT
-
1397007-06020-00 BOLTBOLT
-
1492907-06600-00 WASHER, PLATEWASHER, PLATE
-
151UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
163GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1790430-10148-00 GASKETGASKET
-
184KD-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1990201-12790-00 WASHER, PLATEWASHER, PLATE
-
204KD-82507-00-00 WIRE, LEADWIRE, LEAD
-
211UY-82110-61-00 BATTERY ASSYBATTERY ASSY
-
22133-82131-00-00 BAND, BATTERYBAND, BATTERY
-
2390445-083F2-00 HOSE (L850)HOSE (L850)
-
244BD-82115-01-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
2531G-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
2690153-06044-00 SCREW, HEXAGONSCREW, HEXAGON
-
272NL-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
28705-82151-00-00 ...FUSE (30A)...FUSE (30A)
-
294BD-82510-10-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
303HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
3124W-83530-01-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
32123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
3352G-83530-01-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
34123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
354BD-82590-30-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
3690464-28153-00 CLAMPCLAMP
-
3790464-16025-00 CLAMPCLAMP
-
3890465-13152-00 CLAMPCLAMP
-
393TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
