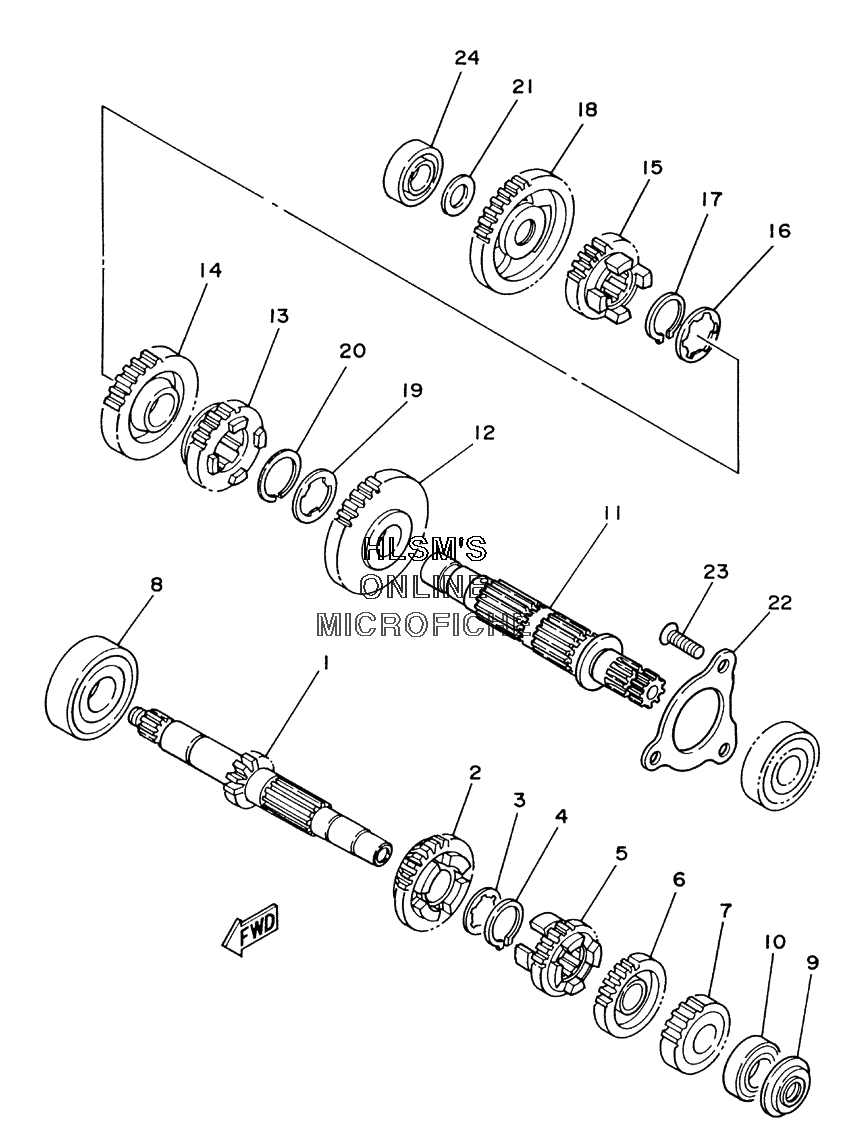

TRANSMISSION для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
159V-17401-00-00 MAIN AXLE ASSYMAIN AXLE ASSY
-
224W-17151-02-00 GEAR, 5TH PINION (28T)GEAR, 5TH PINION (28T)
-
390209-17285-00 WASHERWASHER
-
493410-20038-00 CIRCLIPCIRCLIP
-
559V-17131-00-00 GEAR, 3RD PINION (22T)GEAR, 3RD PINION (22T)
-
659V-17141-00-00 GEAR, 4TH PINION (25T)GEAR, 4TH PINION (25T)
-
74KD-17121-00-00 GEAR, 2ND PINION (18T)GEAR, 2ND PINION (18T)
-
893306-20401-00 BEARING (B6204)BEARING (B6204)
-
993101-15101-00 OIL SEALOIL SEAL
-
1093306-20201-00 BEARING (B6202)BEARING (B6202)
-
1124W-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
1229U-17221-01-00 GEAR, 2ND WHEEL (34T)GEAR, 2ND WHEEL (34T)
-
1324W-17241-00-00 GEAR, 4TH WHEEL (26T)GEAR, 4TH WHEEL (26T)
-
1415A-17231-00-00 GEAR, 3RD WHEEL (29T)GEAR, 3RD WHEEL (29T)
-
154BD-17251-00-00 GEAR, 5TH WHEEL (23T)GEAR, 5TH WHEEL (23T)
-
1690209-18208-00 WASHERWASHER
-
1793410-22039-00 CIRCLIPCIRCLIP
-
1829U-17211-00-00 GEAR, 1ST WHEEL (34T)GEAR, 1ST WHEEL (34T)
-
1990209-23241-00 WASHERWASHER
-
2093410-26067-00 CIRCLIPCIRCLIP
-
2190201-15700-00 WASHER, PLATEWASHER, PLATE
-
2224W-17558-00-00 PLATE, BEARINGPLATE, BEARING
-
2390149-08152-00 SCREWSCREW
-
2493306-20201-00 BEARING (B6202)BEARING (B6202)
