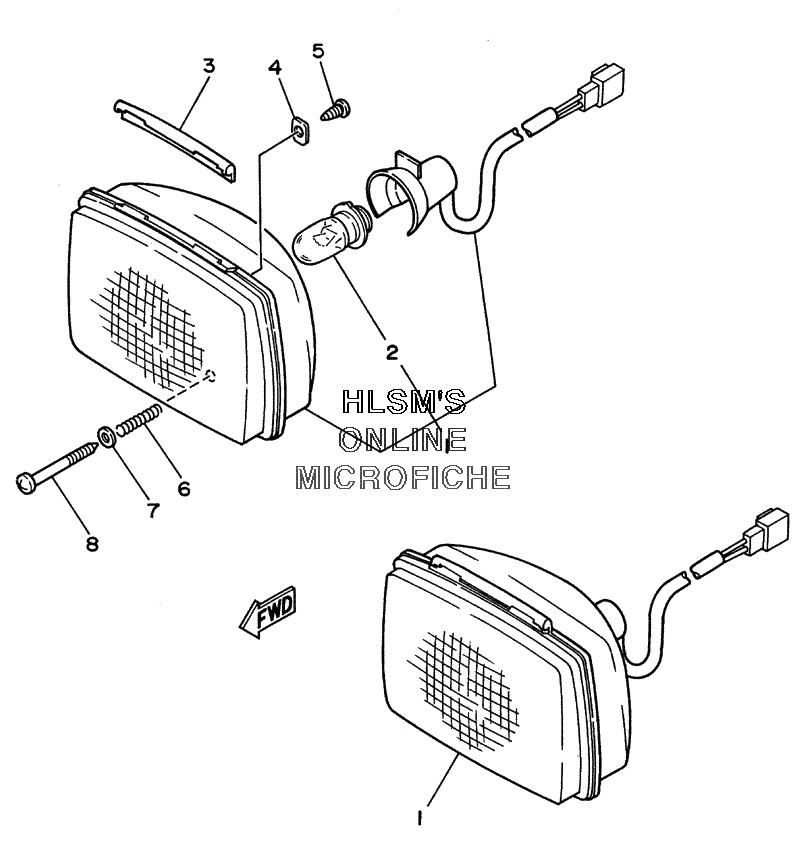

HEADLIGHT для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
12HR-84310-40-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
219G-84314-00-00 ...BULB, HEADLIGHT (12V-25/25W)...BULB, HEADLIGHT (12V-25/25W)
-
326A-84143-00-00 DAMPER, HEADLIGHT STAYDAMPER, HEADLIGHT STAY
-
426A-8411H-00-00 PLATE, STOPPERPLATE, STOPPER
-
597707-40510-00 SCREW, TAPPINGSCREW, TAPPING
-
618A-84132-00-00 SPRING, SCREWSPRING, SCREW
-
792907-04600-00 WASHERWASHER
-
818A-84131-00-00 SCREW, RIM ADJUSTERSCREW, RIM ADJUSTER
