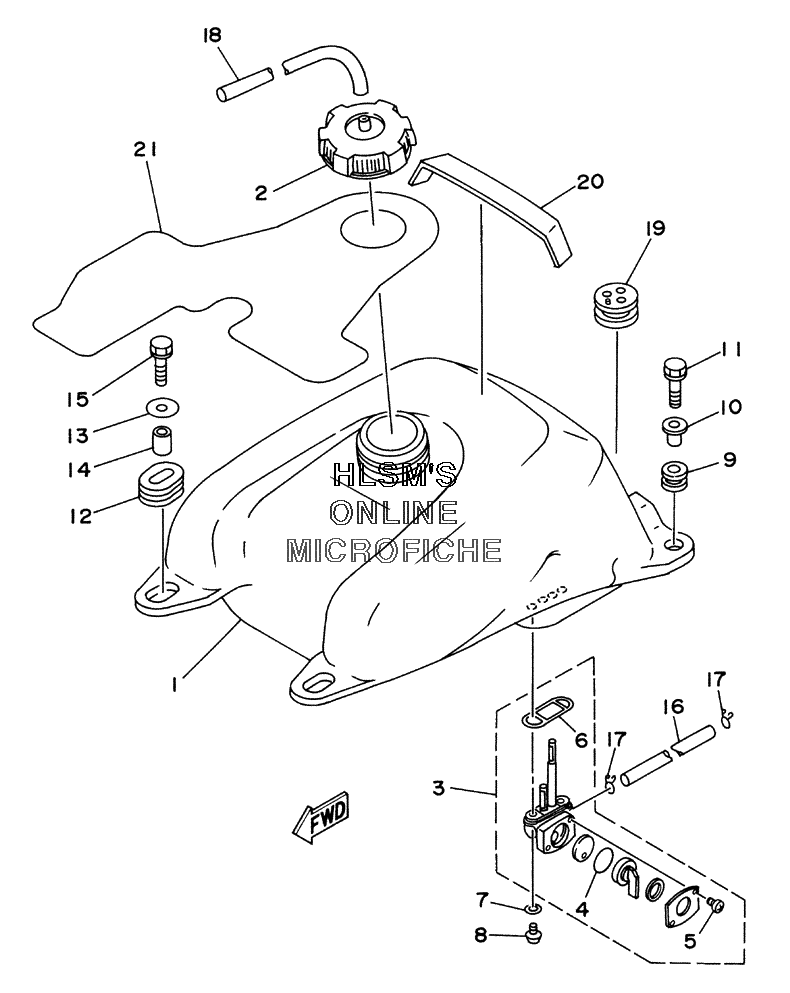

FUEL TANK для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
14BD-24110-02-00 FUEL TANK COMP.FUEL TANK COMP.
-
21UY-24610-00-00 CAP ASSYCAP ASSY
-
33JN-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
43AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
597801-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
64X8-24512-00-00 ...O-RING...O-RING
-
790202-05193-00 WASHER, PLATEWASHER, PLATE
-
890149-06011-00 SCREWSCREW
-
990480-18290-00 GROMMETGROMMET
-
1090387-066H4-00 COLLARCOLLAR
-
1190119-06073-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290480-01400-00 GROMMETGROMMET
-
1390201-060L5-00 WASHER, PLATEWASHER, PLATE
-
1490387-07598-00 COLLARCOLLAR
-
1590119-06073-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690445-113E8-00 HOSEHOSE
-
1790467-10008-00 CLIPCLIP
-
1890445-084J2-00 HOSEHOSE
-
194BD-24339-00-00 GROMMETGROMMET
-
204BD-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
214BD-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
