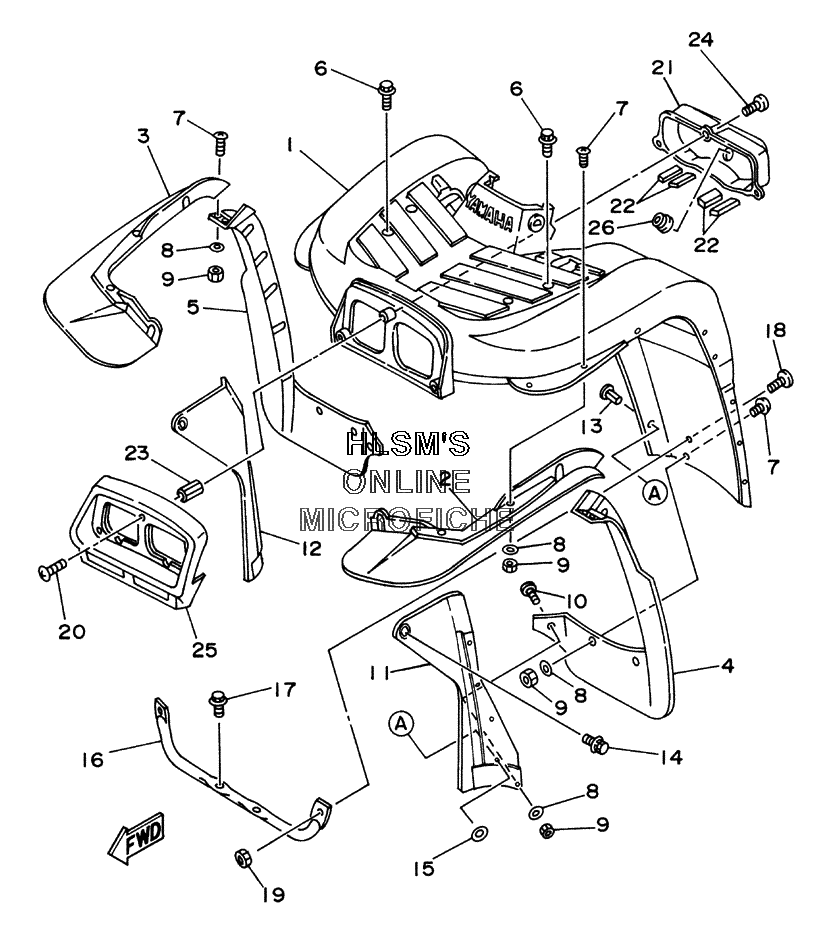

FENDER - FRONT для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
14KD-W2151-40-00 FRONT FENDER COMP. (PDG)FRONT FENDER COMP. (PDG)
-
24BD-21551-00-00 FENDER, OVERFENDER, OVER
-
34BD-21555-00-00 FENDER, OVER 2FENDER, OVER 2
-
44BD-21559-00-00 FENDER, OVER 3FENDER, OVER 3
-
54BD-21560-00-00 FENDER, OVER 4FENDER, OVER 4
-
690119-08212-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790154-05005-00 SCREW, BINDINGSCREW, BINDING
-
890201-05029-00 WASHER, PLATEWASHER, PLATE
-
995707-05300-00 NUT, FLANGENUT, FLANGE
-
1090154-05052-00 SCREW, BINDINGSCREW, BINDING
-
114KD-21552-00-00 FENDER, INNERFENDER, INNER
-
124KD-21553-00-00 FENDER, INNER 2FENDER, INNER 2
-
1390267-63047-00 RIVET, BLINDRIVET, BLIND
-
1490119-06108-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590201-076J4-00 WASHER, PLATEWASHER, PLATE
-
164KD-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
1795807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1890149-06184-00 SCREWSCREW
-
1995607-06100-00 NUT, UNUT, U
-
2090154-05013-00 SCREW, BINDINGSCREW, BINDING
-
212HR-84111-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
221UJ-21717-00-00 DAMPERDAMPER
-
2390170-05362-00 NUTNUT
-
2498907-05014-00 SCREW, BINDSCREW, BIND
-
252HR-23391-00-00 PANEL, FRONTPANEL, FRONT
-
2690480-25461-00 GROMMETGROMMET
